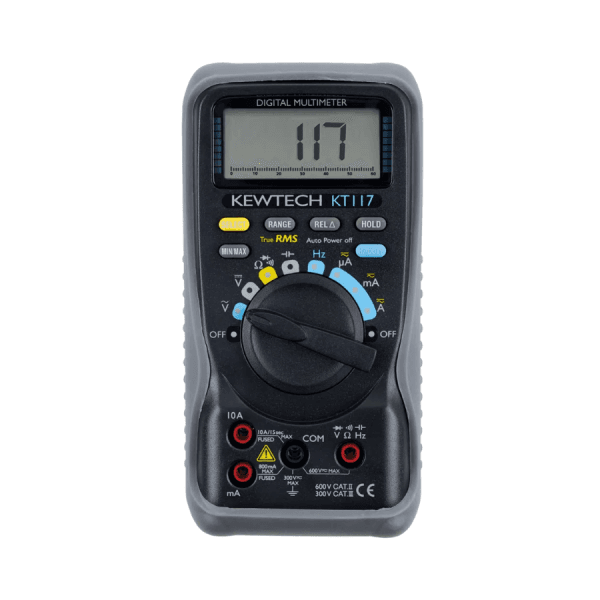

Kewtech KT117 AC/DC Digital Multimeter
The Kewtech KT117 AC/DC Digital Multimeter provides AC and DC voltage and current measurement in one digital test instrument. It measures voltage up to 600V and current up to 10A, while True RMS reading supports accurate AC measurements even when the sine wave is distorted. Auto-ranging also helps simplify range selection during routine testing.
For fault finding and repeated checks, the meter includes MIN/MAX memory, data hold, continuity and resistance measurement. It can also measure frequency, capacitance and duty, while its diode test function adds another useful electrical test option. A bar graph indicator and digital display provide measurement information during use.
The Kewtech KT117 AC/DC Digital Multimeter supports both auto and manual ranging and includes a relative function for additional measurement control. Its sleep feature and automatic power-off function help reduce unnecessary battery use. The instrument is rated to IEC 61010-1 CAT III 300V and CAT II 600V, with further supplied standards including IEC 61010-031 and IEC 61326.
Key Benefits
- True RMS measurement supports accurate AC readings where the sine wave is distorted.
- Measures both AC and DC voltage and current, reducing the need to change instruments.
- MIN/MAX memory helps capture changing measurement values during continuous testing.
- Data hold allows a displayed reading to be retained for easier checking and recording.
- Auto-ranging reduces manual range selection, while manual ranging remains available when required.
- Continuity buzzer provides an audible indication below the stated continuity threshold.
- Frequency, duty, capacitance, diode and resistance functions support a broad range of electrical checks.
- Sleep and automatic power-off functions help conserve the two supplied 1.5V batteries.
- Bar graph indication provides an additional visual reference alongside the digital display.
- CAT III 300V and CAT II 600V ratings provide stated safety categories for relevant measurements.
Common Applications
Kewtech KT117 AC/DC Digital Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:
- AC voltage measurement up to 600V
- DC voltage measurement up to 600V
- AC current measurement up to 10A
- DC current measurement up to 10A
- Resistance and continuity checks
- Diode testing
- Capacitance measurement
- Frequency measurement
- Duty measurement
- MIN/MAX monitoring during continuous testing
Why Choose This Model?
No alternative models are identified in the supplied product information, so a verified model-to-model difference cannot be stated. The Kewtech KT117 AC/DC Digital Multimeter combines True RMS AC measurement, AC/DC voltage and current testing, MIN/MAX recording and several additional electrical measurement functions in one instrument.
