Kewtech KT64EVA Multifunction Tester Kit

The Kewtech KT64EVA Multifunction Tester Kit combines the compact KT64DL multifunction tester with the cable-free KEWEVA EV charge point adaptor. It supports electrical installation testing as well as checks on single-phase and three-phase charging equipment. The tester covers continuity, insulation, loop impedance, PSC/PFC, RCD, polarity and SPD testing.

For EV work, the kit provides a dedicated 6 mA DC test and includes the KEWEVA adaptor for testing charge point operation. The adaptor simulates the presence of a vehicle and uses single-dial control for straightforward operation. Its built-in CP auto check and separate red LED help the user confirm when voltage is applied.

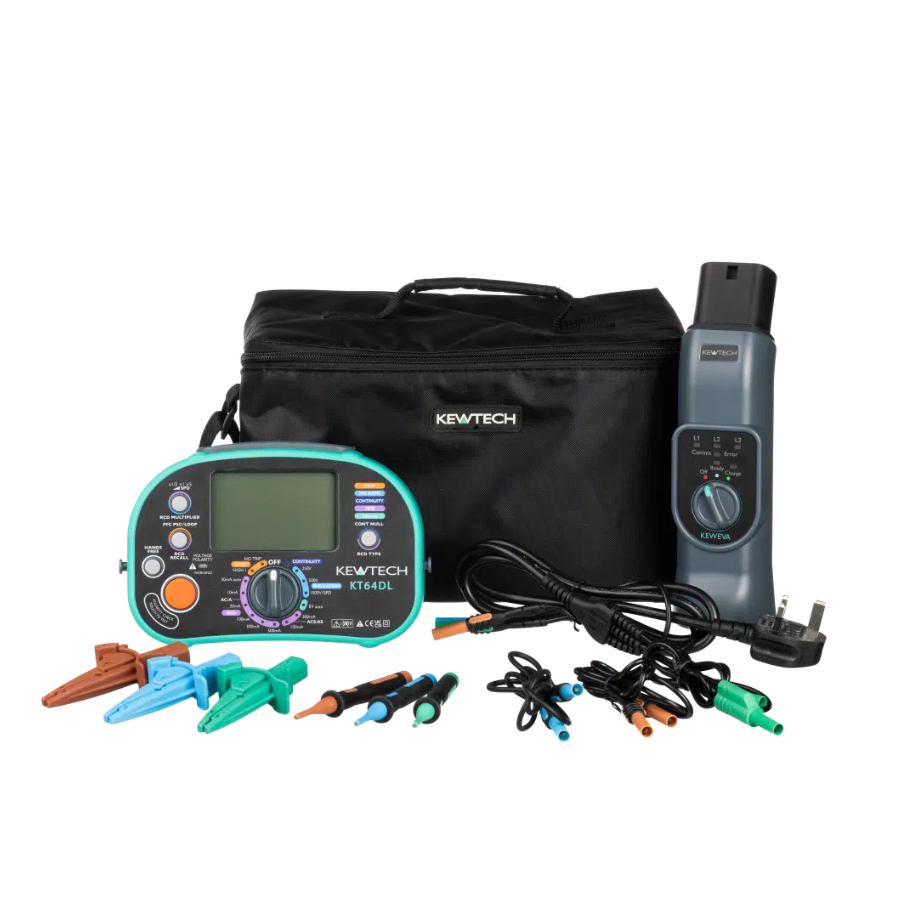

Daily use is made easier by a large display, a single rotary selector and an electronic hands-free test button. A magnetic base holds the KT64DL against metal cabinets, while slim probe tips improve access to push-fit connector blocks. The Kewtech KT64EVA Multifunction Tester Kit also includes a soft carry case, test leads, batteries, a calibration certificate and other supplied accessories.

Key Benefits

Combines electrical installation and EV charge point testing in one kit.
Provides a dedicated 6 mA DC test for EV charge point checks.
Tests SPDs without requiring a separate tester.
Uses continuous live voltage detection to guard against live circuits during dead testing.
Anti-trip loop technology supports no-trip testing of RCD-protected circuits.
The magnetic base leaves both hands free when working at metal cabinets.
Ultra-slim probe tips provide easier access to push-fit connector blocks.
The large display and single rotary dial simplify function selection and reading.
The cable-free KEWEVA adaptor avoids trailing adaptor leads during EV testing.
Simultaneous PSC/PFC and loop impedance information supports efficient fault finding.

Common Applications

Kewtech KT64EVA Multifunction Tester Kit is suitable for a range of testing, maintenance and inspection tasks, including:

Testing single-phase EV charge points.
Testing three-phase EV charging equipment.
Carrying out 6 mA DC EV protection tests.
Testing AC and Type A RCDs.
Performing no-trip and high-current loop tests.
Measuring continuity and insulation resistance.
Checking PSC, PFC and wiring status.
Testing surge protection devices.
Checking polarity on electrical installations.

Why Choose This Model?

The Kewtech KT64EVA Multifunction Tester Kit combines the KT64DL tester and KEWEVA adaptor in one supplied package. It suits buyers who need both standard electrical installation tests and EV charge point testing without purchasing the two items separately.

Feature	Kewtech KT64EVA Multifunction Tester Kit	KT64DL	KEWEVA
Primary purpose	Electrical installation and EV charge point testing	Multifunction electrical installation testing	EV charge point connection and functional testing
EV charge point testing	KT64DL 6 mA DC test with KEWEVA adaptor	6 mA DC EV test function	Simulates vehicle presence and connects to the charging unit
SPD testing	Included through the KT64DL	Included	Works with a compatible multifunction tester
Operation	Rotary tester control and single-dial EV adaptor	Single rotary dial and large display	Automatic single-dial operation
Connection format	Supplied tester leads and cable-free EV adaptor	Standard 4 mm connectors rated at 10 A for testing	Cable-free adaptor with standard 4 mm connectors
Notable function	Complete installation and EV testing package	Anti-trip loop testing and continuous live monitoring	Built-in CP auto check and voltage LED

Specification	Details
Product type	Multifunction installation tester and EV charge point adaptor kit
Main tester model	KT64DL
EV adaptor model	KEWEVA
Display	Large screen display
Main controls	Single rotary function dial and electronic hands-free lock-down test button
Live circuit protection	Continuous live voltage detection during dead testing
Loop test circuit	Anti-trip technology with continuous live monitoring
Ingress protection	IP54, including when the leads are not connected
Test connectors	Standard 4 mm connectors rated at 10 A for testing purposes
Probe tips	Ultra-slim, gold-plated probe tips
Calibration document	End-of-line calibration certificate
Charging equipment	Suitable for single-phase and three-phase charging equipment

Specification	Details
Continuity open-circuit voltage	Greater than 4 V DC and less than 10 V DC
Continuity short-circuit current	Greater than 200 mA
Continuity ranges	9.99 Ω, 99.9 Ω and 99.9 kΩ; automatic ranging
Continuity accuracy	±3% ±2 digits
Continuity lead null	4 Ω
Continuity test time	Typical time less than 2 seconds at 2 Ω
Insulation test voltages	250 V, 500 V and 1000 V DC
250 V insulation output current	1 mA, −0% to +20% at 250 kΩ
250 V insulation ranges	9.99 MΩ, 99.9 MΩ and 2000 MΩ
500 V insulation output current	1 mA, −0% to +20% at 500 kΩ
500 V insulation ranges	9.99 MΩ, 99.9 MΩ, 199 MΩ and 2000 MΩ
1000 V insulation output current	1 mA, −0% to +20% at 1 MΩ
1000 V insulation ranges	9.99 MΩ, 99.9 MΩ, 399 MΩ and 2000 MΩ
Insulation accuracy	±3% ±1 digit or ±6% ±1 digit, according to range
Insulation short-circuit current	Less than 2 mA into 2 kΩ
Insulation test time	Typical time less than 2 seconds at 10 MΩ
SPD test range	1000 V range; measurement range 0–105
SPD accuracy	+5% +5 digits
SPD current limit	1 mA
SPD voltage increment	1 V at 100 V per second
No-trip loop range 0.00–9.99 Ω	Accuracy ±5% ±5 digits
No-trip loop range 10.00–99.9 Ω	Accuracy ±3% ±3 digits
No-trip loop range 100–500 Ω	Accuracy ±3% ±3 digits
High-current loop range	0.000–500 Ω; accuracy ±(3% + 30 mΩ)
PSC/PFC calculation	Derived from measured loop impedance and measured voltage
PSC/PFC voltage measurement	90–250 V, 50/60 Hz; accuracy ±3%
RCD types	Type AC, A, ACS and AS, with automatic and ramp tests
Type AC RCD test currents	10 mA, 30 mA, 100 mA, 300 mA and 500 mA
Type A RCD test currents	10 mA, 30 mA, 100 mA and 300 mA
RCD rated voltage	195–253 V AC, 50 Hz
RCD half-current test	−0% to −10%; tripping time up to 1 second; accuracy ±(1% + 1 ms)
RCD full-current test	+0% to +10%; tripping time above 1 second; accuracy ±(1% + 10 ms)
RCD five-times-current test	+0% to +10%
RCD ramp test	Current increases in 3 mA steps
Automatic RCD sequence	30 mA RCD at ½ × 0°, ½ × 180°, 1 × 0°, 1 × 180°, 5 × 0° and 5 × 180°
EV RCD-DD test	6 mA DC, −0% to +13%
EV phase-angle tests	6 mA DC at 0° and 180°; 30 mA ×1 RCD test at 0° and 180°

Specification	Details
Boxed dimensions	313 × 200 × 200 mm, width × depth × height
Weight	2.32 kg
Mounting feature	Built-in magnetic base for attachment to metal cabinets
Carrying method	Soft carry case and padded neck strap
KEWEVA construction	Cable-free adaptor
KEWEVA controls	Single-dial automatic operation
KEWEVA indication	Separate red LED for applied voltage indication
EAN	5060084082816
Country of manufacture	China
