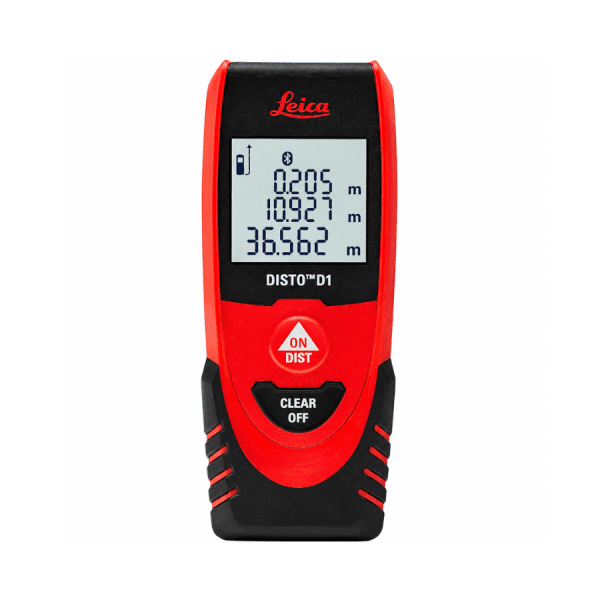

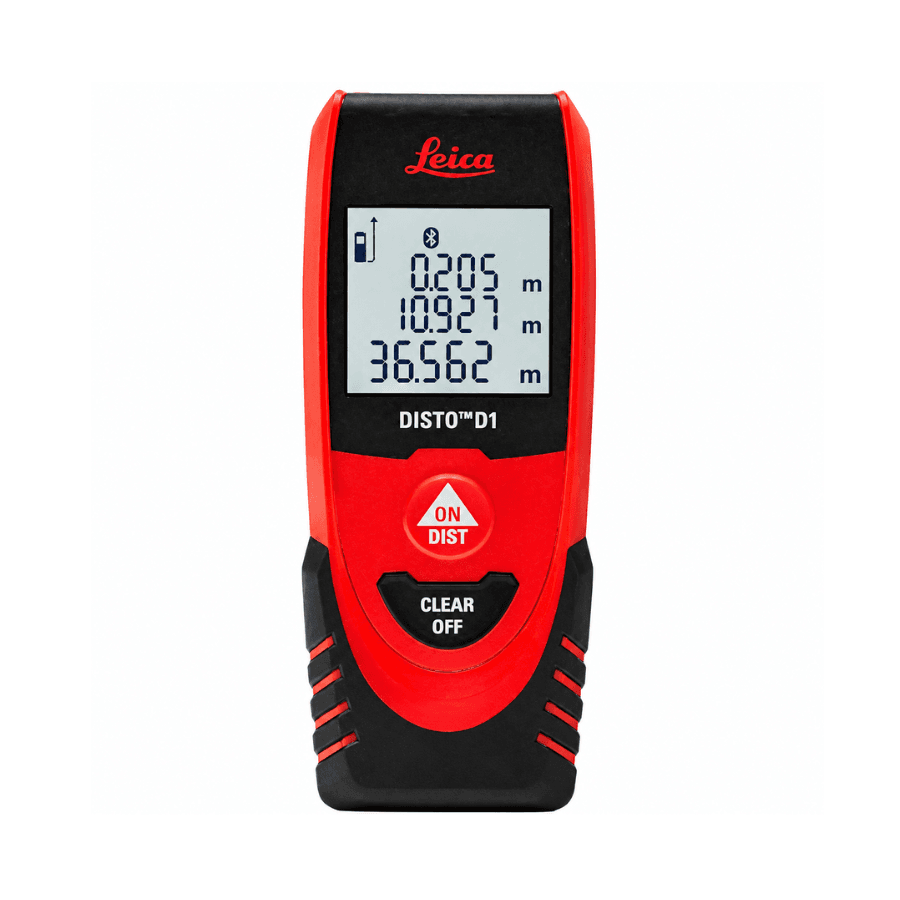

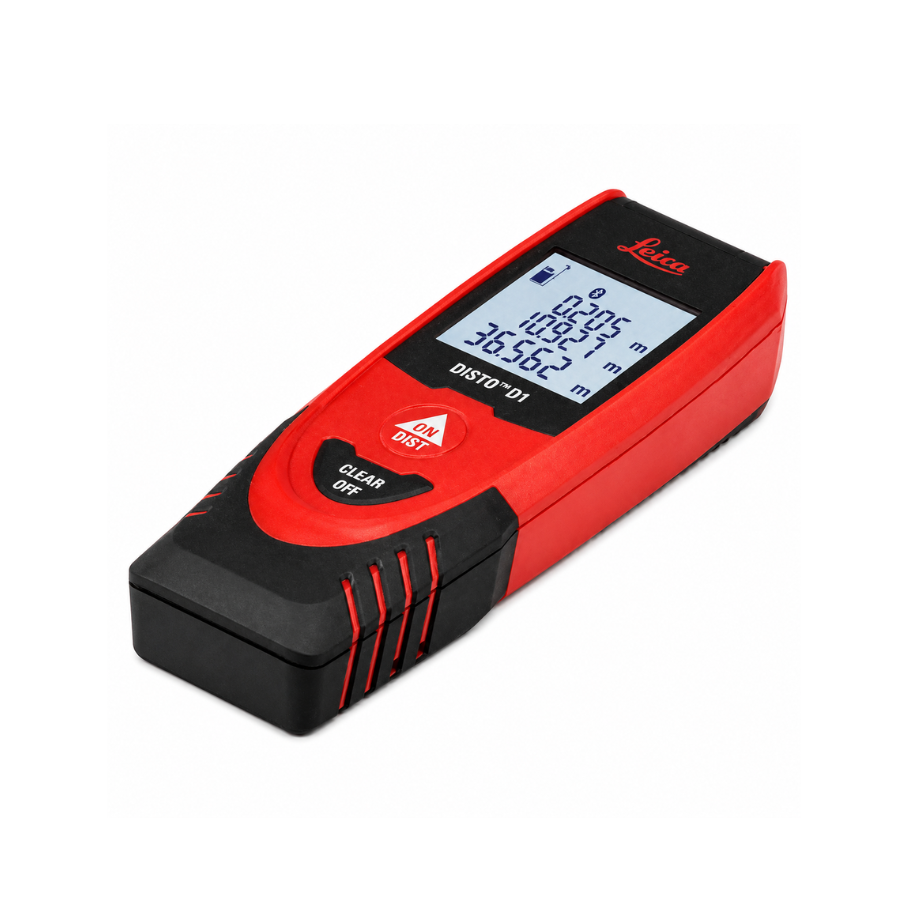

Leica Disto D1 Laser Distance Meter
The Leica Disto D1 Laser Distance Meter gives fast and reliable distance measurements for indoor work. It is compact, lightweight and simple to use, making it ideal for measuring furniture, room sizes and wall spaces. With a measuring range of up to 40 metres and accuracy of ±2mm, it delivers dependable results for everyday tasks.
Bluetooth Smart technology allows the Leica Disto D1 Laser Distance Meter to connect directly to compatible smartphones and tablets. Measurements can be transferred quickly to the DISTO Plan App, helping users create floor plans and record dimensions without manual note taking. As a result, workflow becomes quicker and more efficient.
Simple Measurement and Planning
Press the measurement button and receive accurate distance readings in seconds. The illuminated display remains easy to read in a wide range of lighting conditions. In addition, the intelligent interface helps users take measurements with minimal training.
When paired with the DISTO Plan App, the unit supports sketch planning and digital documentation. Users can draw rough floor plans, assign measurements and adjust layouts automatically. Consequently, planning and measuring tasks can be completed more efficiently.
Connected Documentation Tools
The Leica Disto D1 Laser Distance Meter also supports photo-based documentation through the DISTO Plan App. Measurements, notes and images can be combined into a clear project record. This makes it easier to share information with colleagues, customers and contractors.
Built with Leica measurement technology, the device offers dependable performance in a compact format. Its IP54 protection helps guard against dust and splashing water, while efficient battery management supports up to 10,000 measurements per set of batteries. Two set options are available to suit different purchasing requirements.
Key Features
- Measures distances up to 40 metres
- Suitable for indoor measuring applications
- Bluetooth Smart connectivity for wireless data transfer
- Works with the DISTO Plan App
- Creates digital floor plans on compatible devices
- Supports sketch plan functionality
- Supports sketch on photo documentation
- Illuminated display improves visibility
- Compact and lightweight design for easy handling
- Stores up to 10,000 measurements per battery set
- Designed for measuring furniture and room layouts
- Helps with picture hanging and interior fitting tasks
- Transfers measurements directly to mobile devices
- Available in two different set types
Technical Specifications
| Manufacturer | Leica |
| Manufacturer Part Code | 843418 |
| Product Type | Laser distance meter |
| Measurement Accuracy | ±2mm |
| Resolution | 0.1mm |
| Measurement Range | 0.2m to 40m |
| Measurement Units | m, ft, in |
| X-Range Power Technology | Yes |
| Bluetooth Interface | Bluetooth Smart V4.0 |
| Display Illumination | Yes |
| Ingress Protection | IP54 |
| Laser Class | Class 2 |
| Laser Type | 635nm, <1mW |
| Laser Dot Diameter at 10m | 6mm |
| Laser Dot Diameter at 50m | 30mm |
| Laser Dot Diameter at 100m | 60mm |
| Distance per Battery Set | Up to 10,000 measurements |
| Battery Type | 2 x AAA 1.5V |
| Battery Service Life | Up to 20 hours |
| Automatic Laser Switch Off | After 90 seconds |
| Automatic Power Switch Off | After 180 seconds |
| Dimensions | 115 x 43.5 x 23.5mm |
| Weight with Batteries | 87g |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -25°C to 70°C |
| Accuracy in Favourable Conditions | 2.0mm / 0.08in |
| Accuracy in Unfavourable Conditions | 3mm / 1/8in |
| Range in Favourable Conditions | 0.2m to 40m |
| Range in Unfavourable Conditions | 0.2m to 30m |
| Smallest Unit Displayed | 0.1mm |
| Free Software for Windows | Yes |
| Free App for iOS and Android | Yes |
| Warranty Information | Warranty card included |
Comparison Table
| Feature | DISTO D1 | DISTO D110 | DISTO D2 BT | DISTO X3 | DISTO X4 | DISTO D5 R |
| Indoor/Outdoor Use | Mainly Indoor Use | Mainly Indoor Use | Mainly Indoor Use | Mainly Indoor Use | Indoor/Outdoor Use | Indoor/Outdoor Use |
| Accuracy / Range | 2mm / 40m | 1.5mm / 60m | 1.5mm / 100m | 1mm / 150m | 1mm / 150m | 1mm / 200m |
| Intelligent Endpiece | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Smart Horizontal | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ |
| Bluetooth | V4.0 Smart | V4.0 Smart | V4.0 Smart | V4.0 Smart | V4.0 Smart | V4.0 Smart |
| Outdoor Pointfinder Camera | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ |
Document Downloads
What’s Included
- Leica DISTO D1 Laser Distance Meter
- 2 x AAA batteries
- Quick start guide
- Warranty card
- Safety manual
- Calibration certificate silver
