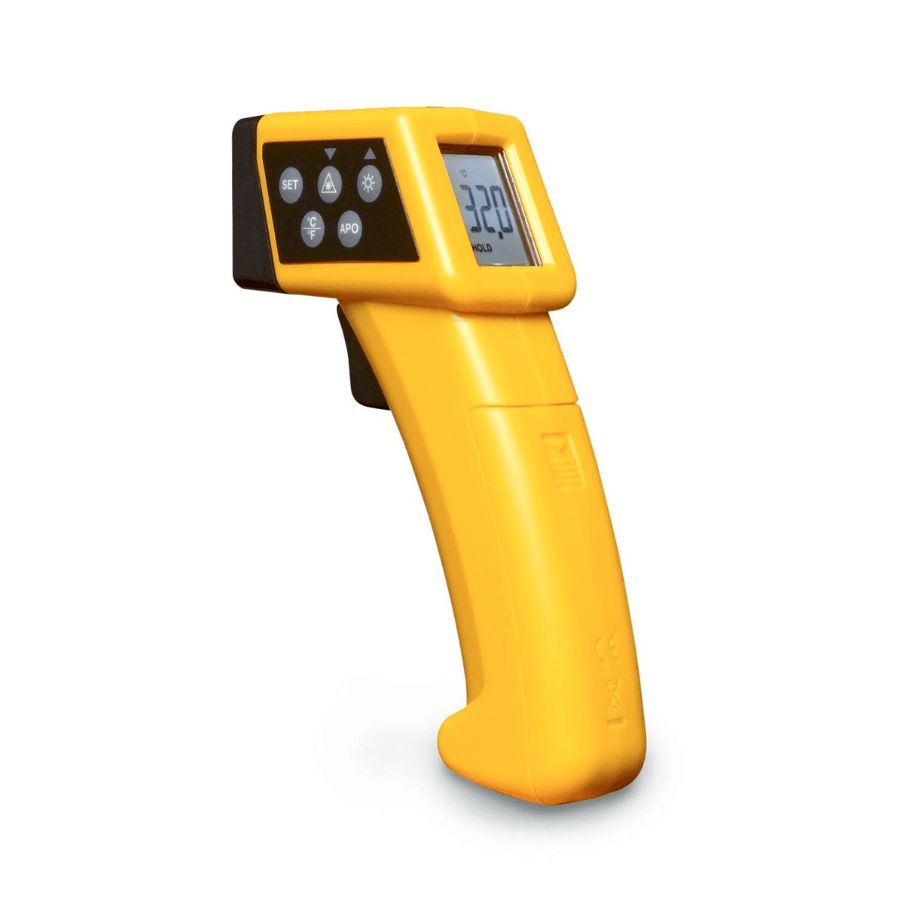

Martindale IR88 Infrared Thermometer
The Martindale IR88 Infrared Thermometer provides quick, non-contact surface temperature measurement across a range of -30°C to 550°C. Its pistol-style body supports simple aiming, while the laser spot guide helps the user target the required measurement point. A clear digital LCD displays readings in either Celsius or Fahrenheit.
A 10:1 distance-to-spot ratio lets users measure temperatures while staying clear of dangerously hot surfaces. Users can set upper and lower temperature limits, and the instrument sounds an audible alarm when a reading exceeds either limit. The Martindale IR88 Infrared Thermometer also records minimum and maximum readings for easier monitoring.
Adjustable emissivity from 0.10 to 1.00 allows the thermometer to compensate for different surface materials. A response time of 0.25 seconds supports fast measurement, while automatic power-off helps conserve the battery. The Martindale IR88 Infrared Thermometer combines a wide temperature range, clear controls and useful alarm functions in an ergonomic handheld format.
Key Benefits
- Measures surface temperature without making physical contact.
- Allows the user to remain clear of dangerously hot surfaces.
- Uses a laser spot guide to make the target point easy to identify.
- Provides rapid readings with a response time of 0.25 seconds.
- Shows measurements clearly on an LCD in Celsius or Fahrenheit.
- Sounds an alarm when set upper or lower limits are exceeded.
- Records minimum and maximum values to support temperature monitoring.
- Adjustable emissivity improves compensation across different materials.
- Automatic power-off helps reduce unnecessary battery use.
- The pistol-style design supports easy handheld operation.
Common Applications
Martindale IR88 Infrared Thermometer is suitable for a range of testing, maintenance and inspection tasks, including:
- Non-contact surface temperature checks
- Inspection of dangerously hot surfaces
- Temperature checks from a safe distance
- Targeted spot temperature measurement
- Monitoring against upper temperature limits
- Monitoring against lower temperature limits
- Minimum and maximum reading checks
- Measurement across different surface materials
Why Choose This Model?
This model offers a -30°C to 550°C measurement range, adjustable emissivity, a 10:1 distance-to-spot ratio and selectable upper and lower alarms. No alternative model specifications were supplied for a direct comparison.
Product Comparison
| Comparison Point | Martindale IR88 Infrared Thermometer |
| Primary purpose | Non-contact surface temperature measurement |
| Temperature range | -30°C to 550°C / -22°F to 1022°F |
| Distance-to-spot ratio | 10:1 |
| Targeting guide | Single laser spot guide |
| Notable functions | Upper and lower alarms, min/max recording and adjustable emissivity |
| Dimensions | 148 x 105 x 42 mm |
| Weight | Approximately 157 g |
General Specifications
| Specification | Details |
| Product type | Pistol-style infrared thermometer |
| Measurement method | Non-contact surface temperature measurement |
| Display | Digital LCD |
| Display units | Celsius or Fahrenheit |
| Measurement guide | Single laser spot guide |
| Alarm functions | Selectable upper and lower temperature limits with audible alarm |
| Recording function | Minimum and maximum readings |
| Power-saving function | Automatic power-off |
| Power supply | 9 V PP3 battery, type MN1604 |
| Battery life | 9 hours |
| Martindale part number | MARIR88 |
Measurement and Accuracy Specifications
| Specification | Details |
| Temperature range | -30°C to 550°C / -22°F to 1022°F |
| Celsius resolution | 0.5°C or 1°C, selected automatically |
| Fahrenheit resolution | 1°F |
| Accuracy from -30°C to 100°C | ±2°C |
| Accuracy from -22°F to 212°F | ±4°F |
| Accuracy from 101°C to 550°C | ±2% of reading |
| Accuracy from 213°F to 1022°F | ±2% of reading |
| Response time | 0.25 seconds |
| Distance-to-spot ratio | 10:1 |
| Emissivity range | 0.10 to 1.00 |
| Emissivity adjustment | 0.01 steps |
Mechanical and General Information
| Specification | Details |
| Design | Ergonomic pistol-style handheld instrument |
| Reading type | Digital surface temperature reading |
| Dimensions | 148 x 105 x 42 mm |
| Weight | Approximately 157 g |
| Battery type | 9 V PP3, MN1604 |
| Controls and functions | Celsius/Fahrenheit selection, emissivity adjustment, alarm limits and min/max recording |
Specification Notes
- Accuracy is ±2°C or ±4°F across the lower stated range and ±2% of the reading across the higher range.
- Celsius resolution changes automatically between 0.5°C and 1°C.
- Emissivity can be adjusted from 0.10 to 1.00 in increments of 0.01.
What’s Included
- Martindale IR88 Infrared Thermometer
- Battery
- Instruction manual
