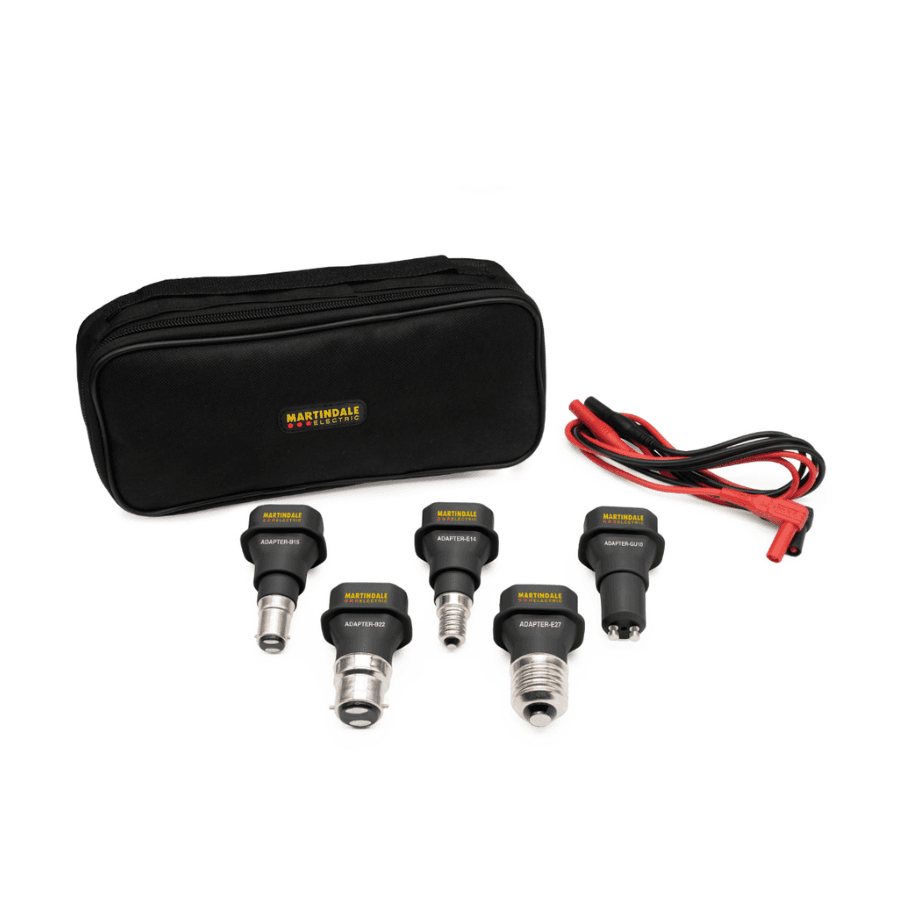

Martindale LAMPKIT20 Lamp Adaptor Kit
The Martindale LAMPKIT20 Lamp Adaptor Kit helps electricians connect test equipment to common lamp sockets. It gives a secure link to lighting circuits, so users can take checks without holding probes in place. This makes routine fault finding safer, quicker and easier on site.
Built for inspection and maintenance work, this kit supports a wide range of standard lamp fittings. It includes adaptors for B22, B14, E27, E14 and GU10 sockets. As a result, one kit can cover many lighting jobs in homes, offices and commercial sites.
Safer hands-free testing
With standard 4 mm connections, the Martindale LAMPKIT20 Lamp Adaptor Kit links directly to suitable test instruments. The two-wire test lead set uses 4 mm banana plugs for a simple and firm connection. This helps reduce the need to dismantle fittings during checks.
For added confidence, the kit is rated to EN61010-1 CAT II 300 V. It also has a voltage range of 0 to 253 V AC and a maximum current rating of 2 A. These ratings make it suitable for professional electrical testing within the stated limits.
Designed for site use
Each adaptor has compact maximum dimensions of 81 mm x 42 mm x 35 mm. Individual adaptors weigh up to 33 g, so the kit stays easy to carry between tasks. The protective case helps keep the parts together and guards them during transport.
The Martindale LAMPKIT20 Lamp Adaptor Kit is supplied as a practical solution for lighting fault diagnosis. It works in operating conditions from 0 °C to 40 °C with less than 70% humidity. In addition, the case size of 185 mm x 80 mm x 105 mm makes storage simple in a tool bag or test kit.
Key Features
- Provides hands-free connection to lamp sockets
- Helps reduce manual probe holding during tests
- Designed for electrical inspection work
- Suitable for lighting fault diagnosis tasks
- Supports common domestic and site lamp fittings
- Works with compatible electrical test instruments
- Uses standard 4 mm test connections
- Supplied with a two-wire test lead set
- Helps avoid unnecessary dismantling of light fittings
- Compact adaptors are easy to handle on site
- Protective carry case supports safe storage
- Suitable for maintenance engineers and electricians
- Professional solution for lighting circuit access
- Manufacturer part code LAMPKIT20 is provided
Technical Specifications
| Product name | Martindale LAMPKIT20 Lamp Adaptor Kit |
| Manufacturer | Martindale Electric |
| Manufacturer part code | LAMPKIT20 |
| Voltage range | 0 to 253 V AC |
| Maximum current | 2 A |
| Frequency | 50 Hz |
| Supported light fittings | B22, B14, E27, E14 and GU10 |
| Test connection type | Standard 4 mm socket connections |
| Lead connection | Two-wire test lead set with 4 mm banana plugs |
| Adaptor maximum dimensions | 81 mm x 42 mm x 35 mm |
| Case dimensions | 185 mm x 80 mm x 105 mm |
| Individual adaptor weight | Maximum 33 g |
| Kit weight | 295 g |
| Storage environment | -20 °C to +70 °C, less than 80% humidity |
| Operating environment | 0 °C to +40 °C, less than 70% humidity |
| EMC standard | EN 61326-1:2013 |
| Safety rating | EN61010-1 CAT II 300 V |
| EAN | 5036162000591 |
| Country of origin | CN |
| Warranty | Not provided |
Document Downloads
What’s Included
- B22 lamp socket adaptor
- B14 lamp socket adaptor
- E27 lamp socket adaptor
- E14 lamp socket adaptor
- GU10 lamp socket adaptor
- Two-wire test lead set with 4 mm banana plugs
- Protective carry case
