Megger 1014-833 Lamp Adaptor Kit
The Megger 1014-833 Lamp Adaptor Kit helps users connect test equipment to lighting circuits through standard 4 mm sockets. It removes the need to disturb circuit wiring or take apart the lamp housing during suitable checks. This makes lamp socket testing quicker, neater and less invasive.
Five common lamp socket adaptors are supplied in the kit. These include B22, B14, E27, E14 and GU10 adaptors for use across a range of lamp holder types. As a result, the user can handle many common lighting test points with one kit.
Simple Circuit Access
During test work, the adaptor allows connection at the lamp socket. Therefore, the user can link suitable electrical test equipment to the circuit by using the adaptor and the supplied lead set. The Megger 1014-833 Lamp Adaptor Kit supports measurement and test tasks without unnecessary disruption.
A 2 wire lead set is also included for connection work. In addition, the adaptors use industry standard 4 mm sockets for test equipment connection. This gives a practical interface for safe and organised testing at lamp points.
Kit Storage And Site Use
A protective carry case is supplied to keep the adaptors and leads together. It helps protect the kit during storage and transport. It also makes it easier to check that the main parts are present before leaving for a job.
Two different set types are available within the supplied kit information. One set type covers the lamp adaptor group for B22, B14, E27, E14 and GU10 socket access. The other set type covers the accessory group, including the 2 wire lead set and protective carry case, so the Megger 1014-833 Lamp Adaptor Kit is ready for use and storage.
Key Features
- Allows testing at common lamp socket points
- Connects test equipment through 4 mm sockets
- Helps avoid disturbing lamp circuit wiring
- Supports testing without removing lamp housings
- Includes five common lamp socket adaptors
- Supplied with a 2 wire lead set
- Protective carry case keeps parts together
- Designed for measurement and test purposes
- Suitable for lighting circuit access work
- Helps reduce time during lamp socket checks
- Supports tidy storage between test jobs
- Includes adaptor sizes for varied lamp holders
- Useful for electricians and test engineers
- Provides a complete lamp adaptor test kit
Technical Specifications
| Product name | Megger 1014-833 Lamp Adaptor Kit |
| Manufacturer | Megger |
| Manufacturer part code | 1014-833 |
| Product type | Lamp adaptor testing kit |
| Primary use | Connecting electrical test equipment to lamp socket circuits for measurement and test purposes |
| Connection type | Industry standard 4 mm sockets |
| Voltage range | 0 V to 253 V AC |
| Frequency range | 50 Hz to 60 Hz |
| Maximum current | 2 A |
| Operating time | Continuous |
| Adaptor dimensions | 80 mm x 42 mm x 34 mm maximum |
| Adaptor weight | 32 g maximum |
| Kit dimensions in case | 190 mm x 100 mm x 75 mm |
| Kit weight in case | 295 g |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 70°C |
| Maximum humidity | 80% RH |
| IP rating | IP40 |
| Maximum altitude | 2000 m |
| Pollution degree | 2 |
| Safety standard | IEC/EN 61010-1 |
| EMC standard | EN 61326-1:2013 |
| Adaptor set type | B22, B14, E27, E14 and GU10 lamp adaptor group |
| Accessory set type | 2 wire lead set and protective carry case group |

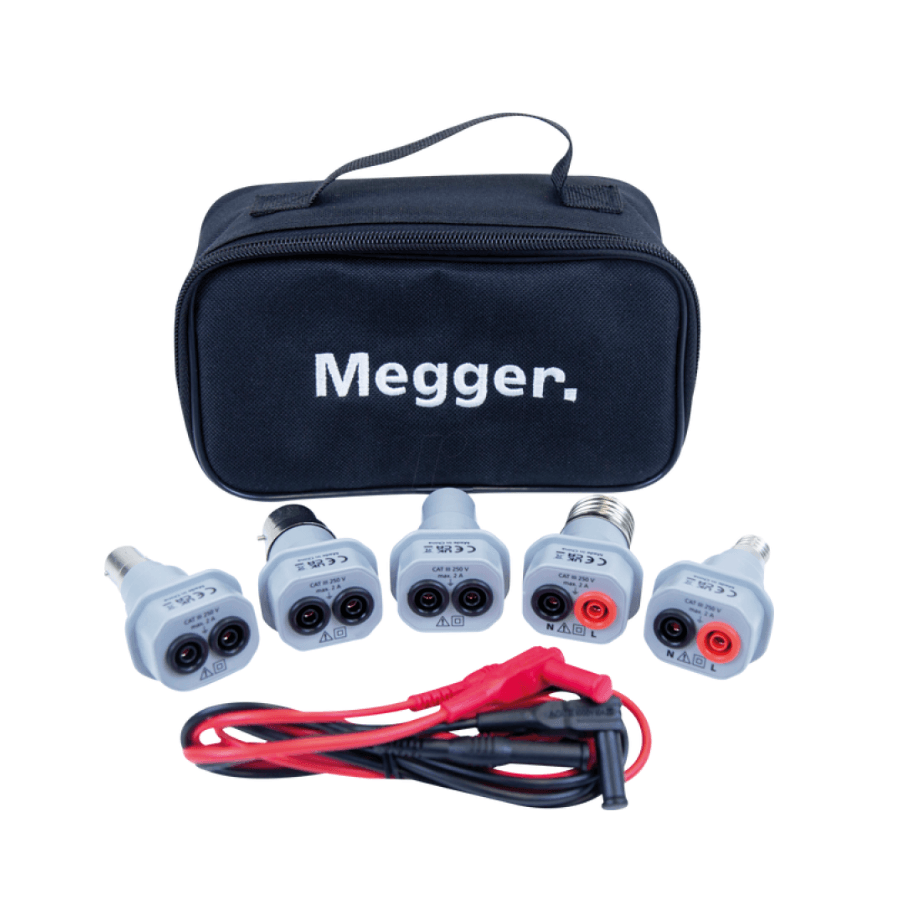

What’s Included
- B22 lamp adaptor
- B14 lamp adaptor
- E27 lamp adaptor
- E14 lamp adaptor
- GU10 lamp adaptor
- 2 wire lead set
- Protective carry case
