Megger BITE5 Battery Tester

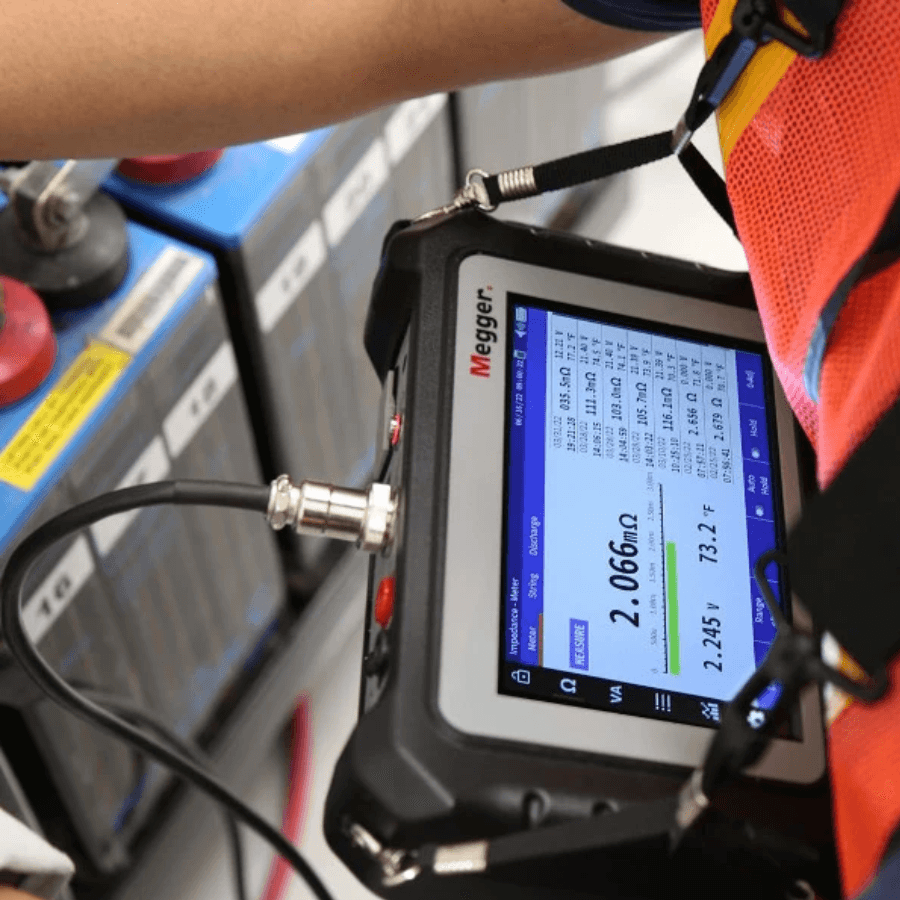

The Megger BITE5 Battery Tester provides fast and reliable battery testing for many critical systems. It measures voltage, impedance, current, and temperature to give clear insight into battery condition. This helps users detect faults early and reduce downtime.
In addition, the unit supports online testing, so systems stay active during checks. This is useful in telecom, UPS, and energy storage environments. As a result, engineers can maintain performance without disruption.
Advanced Measurement Control
The Megger BITE5 Battery Tester allows users to set pass, warning, and fail limits. It also records AC ripple voltage and current alongside DC float current. These features support accurate diagnostics and long term trend analysis.

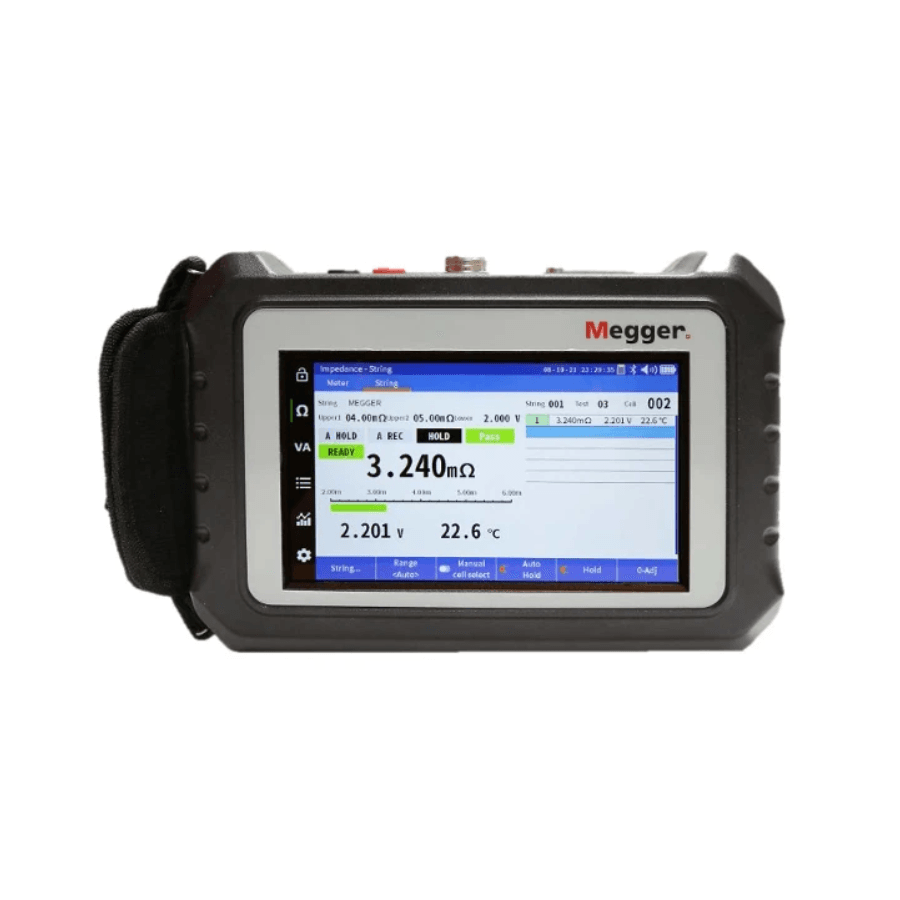

Furthermore, the device captures data over time and displays it on a colour touch screen. This makes navigation simple and improves workflow in the field. Data can also be exported for deeper review.
Flexible Testing Applications
Beyond battery testing, the Megger BITE5 Battery Tester supports wider electrical checks. It can measure solar combiner voltages and verify inverter input and output performance. This adds value for renewable energy maintenance.
Finally, the compact design and onboard storage improve usability on site. With USB and microSD transfer plus software support, reporting becomes quick and efficient. This ensures reliable results across many industries.
Key Features
- Tests lead acid VLA and VRLA batteries
- Supports NiCd and lithium ion battery systems
- Measures cell impedance and cell voltage
- Records AC ripple voltage and ripple current
- Measures DC float current during operation
- Performs discharge cycle monitoring
- Measures temperature alongside electrical values
- Handles string voltages up to 1000 V DC
- Measures AC voltages up to 600 V AC
- Includes colour touch screen interface
- Provides onboard data trending and analysis
- Transfers data via USB and microSD card
- Connects to PowerDB software wirelessly
Technical Specifications
| Manufacturer | Megger |
| Product name | Megger BITE5 Battery Tester |
| Manufacturer part code | BITE5 |
| Battery types supported | Lead acid VLA and VRLA NiCd lithium ion |
| Voltage measurement range | Up to 200 V DC for lithium ion testing |
| String voltage range | Up to 1000 V DC |
| AC voltage range | Up to 600 V AC |
| Measured parameters | Voltage impedance temperature AC ripple |
| Current measurement | AC ripple current and DC float current |
| Discharge testing | Voltage impedance temperature and DC current |
| Data storage | Internal memory with trend recording |
| Data transfer | USB and microSD card support |
| Software compatibility | PowerDB reporting and analysis software |
| Display type | Colour touch screen interface |
| Applications | UPS telecom solar and energy storage systems |
| Operation mode | Online testing without shutdown |
| Warranty | Not specified |
Document Downloads
What’s Included
- Megger BITE5 Battery Tester
- Duplex probes with temperature probe
- Voltage test leads
- Battery charger
- Neck strap
- Zero bar
- 16GB microSD card
- MicroSD USB reader
- USB cable
- Stylus
- Carry bag
- Pouch bag
