Megger MPAC128 Acoustic Imager
The Megger MPAC128 Acoustic Imager is a cutting-edge device designed to visualise hazardous and costly conditions from a safe distance. With the ability to detect and locate gas leaks and partial discharge threats up to 120 metres away, this imager utilises 128 MEMS microphone sensors to quickly and clearly identify emissions. The intuitive interface, featuring only two parameters to set, simplifies operation, enabling users to produce leak rate quantifications for cost estimations and utilise Phase Resolved Partial Discharge (PRPD) for distinguishing different types of partial discharges.

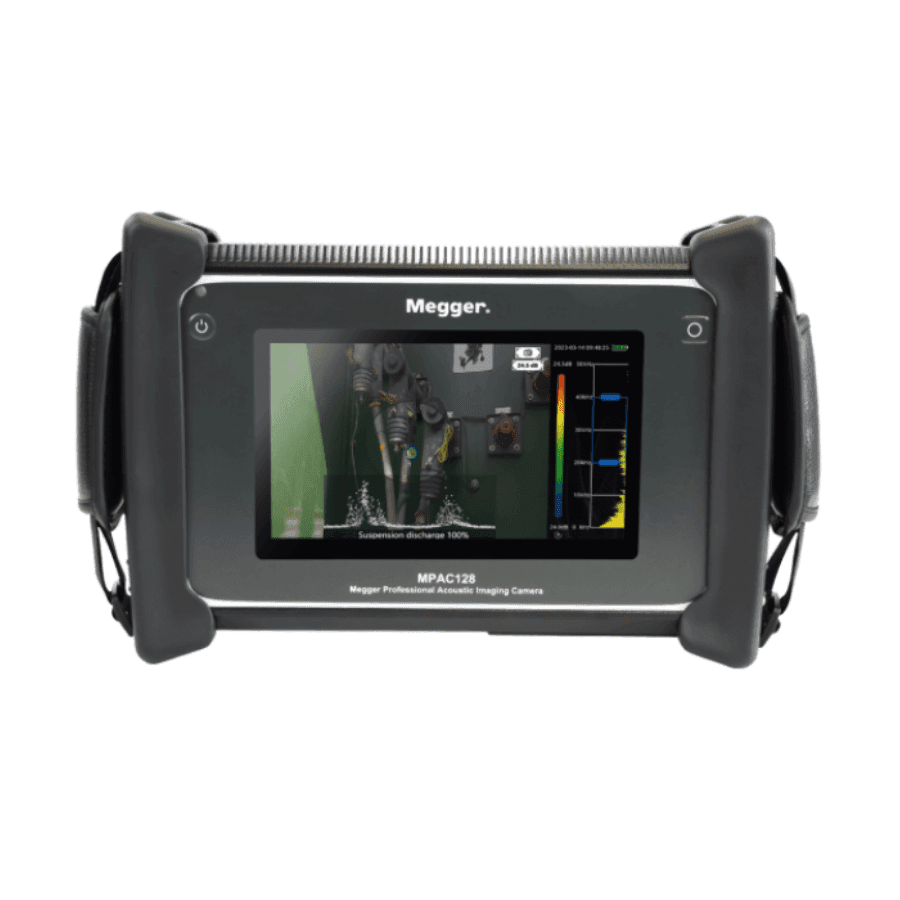

This advanced imager boasts a focus function that minimises unwanted noise in loud environments and converts ultrasonic monitoring sounds into audible sounds for precise leak pinpointing. Its 8-megapixel optical camera resolution captures detailed measurements, which are displayed on a 7-inch capacitive touch screen with a 1024 x 600 resolution. The device’s IP54 rating and wide operating temperature range of -20 to 50 degrees make it suitable for extreme working conditions.
The MPAC128 features 8GB of internal storage for images, audio, and video files, which can be exported via microSD card or USB-C memory stick. The device operates within a frequency band of 2kHz to 48kHz and offers a user-adjustable dynamic range of 0.5dB to 12dB. Its Field of View (FOV) of 62º horizontal and 48º vertical, along with a nominal frame rate of 25 fps, ensures that the on-screen image is refreshed 25 times per second for continuous monitoring.
Powered by a 6600 mAh, 7.2 V rechargeable Li-ion battery, the MPAC128 provides up to four hours of usage under full load. It also features user-selectable Sleep/Auto power-off functions to preserve battery life. Firmware updates are easily managed via USB-C or microSD card, and users can access free Acoustic Analysis Software from Megger to enhance their analysis capabilities.
Key Features
- Detect and locate gas leaks and partial discharge threats up to 120m away
- Utilises 128 MEMS microphones for precise emission detection
- Provides leak rate quantification for cost estimation
- Phase Resolved Partial Discharge (PRPD) distinguishes different types of discharges
- Intuitive user interface with only two parameters to set
- Focus function reduces unwanted noise in noisy environments
- Converts ultrasonic monitoring sounds to audible sounds for accurate leak pinpointing
- 8-megapixel optical camera resolution for detailed measurements
- 7-inch capacitive touch screen with a 1024 x 600 resolution display
- IP54 rated for use in extreme working conditions
- Battery powered with up to four hours usage under full load
- Firmware updates via USB-C or microSD card
- Free Acoustic Analysis Software available from Megger
Technical Specifications
- Frequency band: 2 kHz to 48 kHz
- Dynamic range: User adjustable from 0.5dB to 12dB
- Field of View (FOV): 62º horizontal, 48º vertical
- Nominal frame rate: 25 fps (minimum)
- Leak detection rate: 1m 7 bar 0.37 ml/s and 10m 7 bar 0.7 ml/s
- 8GB internal storage capacity
- Storage formats: JPG for images, WAV for audio, MP4 for video (up to 5 minutes)
- Operating temperature range: -20 to 50 degrees Celsius
- Battery: 6600 mAh, 7.2 V rechargeable Li-ion
- Display resolution: 1024 x 600 on a 7-inch touch screen
- IP54 protection rating
- Dimensions and weight: Detailed on request
