Megger MPAC208 Acoustic Imaging Camera
The Megger MPAC208 Acoustic Imaging Camera helps teams find faults fast and with ease. It shows sound in real time, so users can locate gas leaks and system issues without delay. As a result, downtime is reduced and maintenance becomes more efficient.

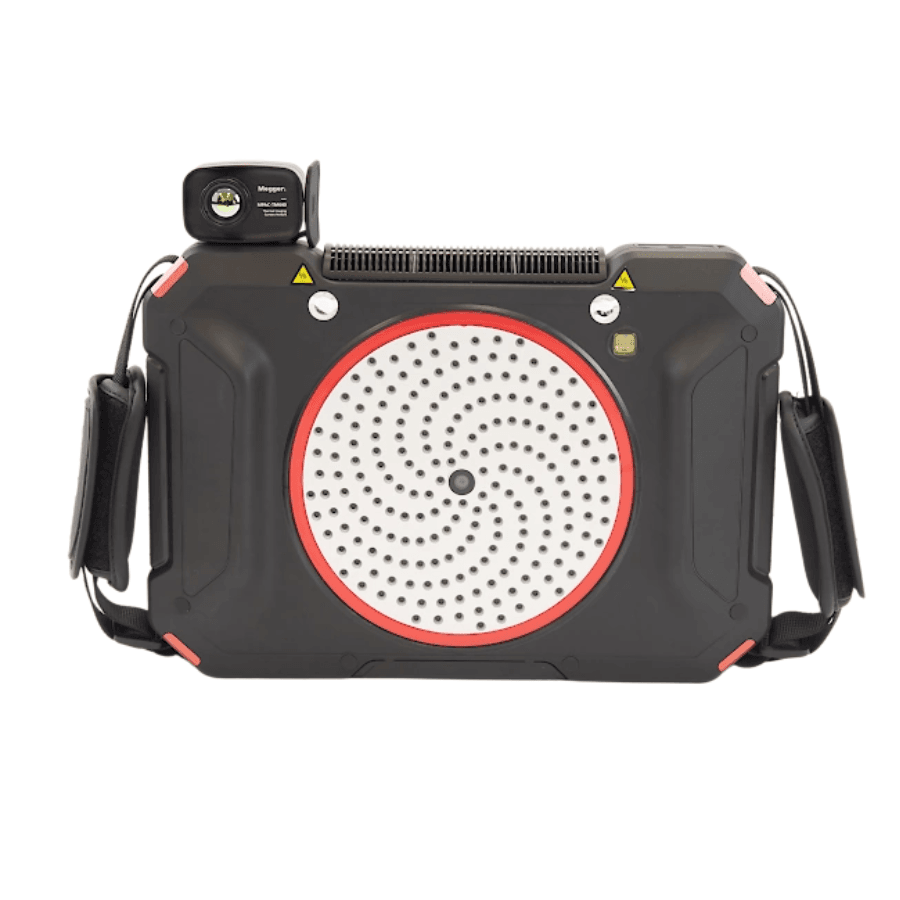

With a 208 channel MEMS microphone array, this unit captures a wide range of ultrasonic signals. It works across 2 kHz to 100 kHz, which helps detect both small leaks and subtle faults. In addition, the system overlays sound data onto live video for clear and simple analysis.
Efficient fault detection
Megger MPAC208 supports fast inspection across many industrial sites. It detects gas leaks, partial discharge and mechanical wear in one device. Therefore, engineers can complete checks quickly and make better decisions on site.
The device also includes noise suppression and focus tools. These features help isolate target signals even in loud areas. As a result, users gain accurate readings in complex plant environments.
Designed for field use

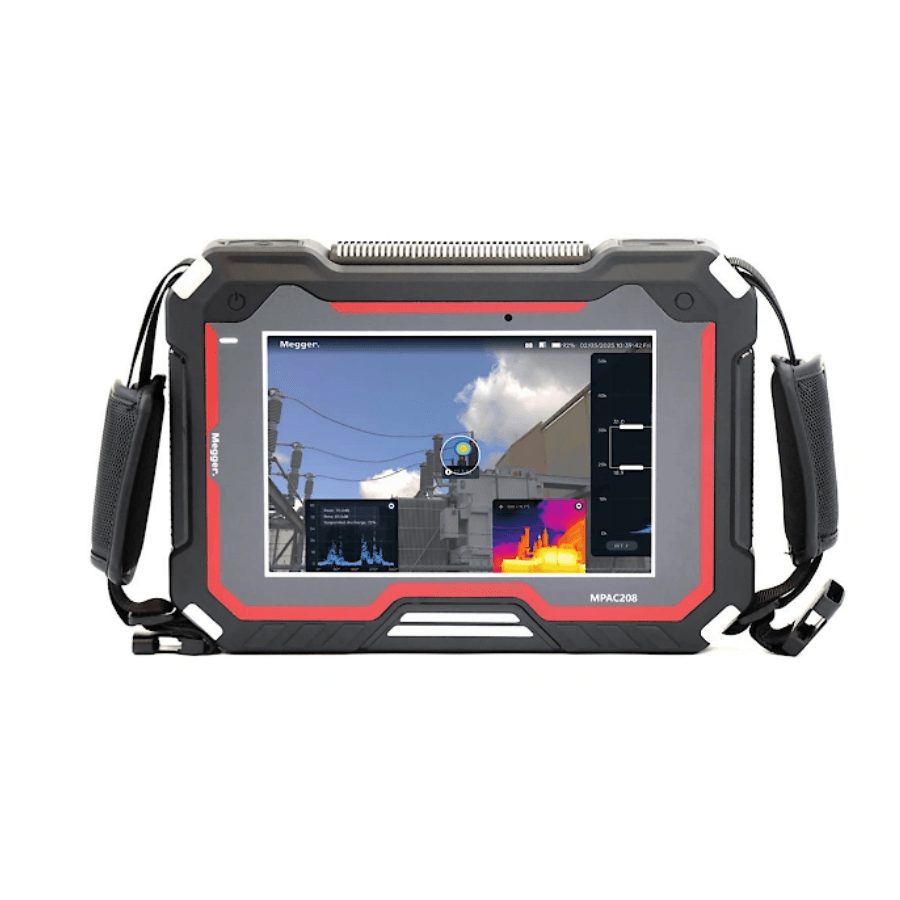

Built for real work, the Megger MPAC208 is lightweight and easy to handle. It weighs just 1.4 kg and includes an 8 inch touchscreen for clear viewing. Moreover, the IP54 rating supports use in harsh industrial conditions.
Battery life lasts up to 10 hours, which supports full day operation. Optional thermal imaging can also be added, allowing users to compare heat and sound data side by side. This improves fault confirmation and speeds up diagnosis.
Key Features
- 208 channel MEMS microphone array for detection
- Real time acoustic imaging on live video
- Wide frequency range from 2 kHz to 100 kHz
- Detects gas leaks and mechanical faults fast
- Partial discharge identification with PRPD view
- Detection distance up to 200 metres
- Noise suppression for clear signal isolation
- Focus mode improves target sound accuracy
- SoundScan guidance for off screen sources
- Built in leak rate and cost estimation tools
- Optional thermal imaging overlay capability
- Large 8 inch touchscreen for easy operation
Technical Specifications
| Manufacturer | Megger |
| Product name | MPAC208 Acoustic Imaging Camera |
| Manufacturer part code | 1016-917 |
| Microphone array | 208 channel MEMS array |
| Frequency range | 2 kHz to 100 kHz |
| Detection distance | Up to 200 m |
| Display | 8 inch capacitive touchscreen |
| Optical camera | 13 MP integrated camera |
| Weight | 1.4 kg |
| Ingress protection | IP54 rated |
| Battery life | Up to 10 hours operation |
| Inspection modes | Gas leak, partial discharge, mechanical |
| Data visualisation | PRPD, time and frequency analysis |
| Noise control | Integrated suppression and focus mode |
| Thermal imaging | Optional add-on module |
| Calibration interval | Recommended every two years |
| Verification support | Compatible with MPAC-V verifier |
| Warranty | Not specified |
Comparison Table
| Feature | MPAC208 | MPAC208-IECEx |
| Acoustic performance | Identical | Identical |
| Imaging quality | Standard | Standard |
| Application | General industrial use | Hazardous environments |
| Certification | None specified | IECEx Class 2 certified |
| Explosion protection | No | Yes |
| Use case | Utilities and manufacturing | Petrochemical and gas sites |
Document Downloads
What’s Included
- Megger MPAC208 Acoustic Imaging Camera
- Rechargeable battery system
- User interface touchscreen display
