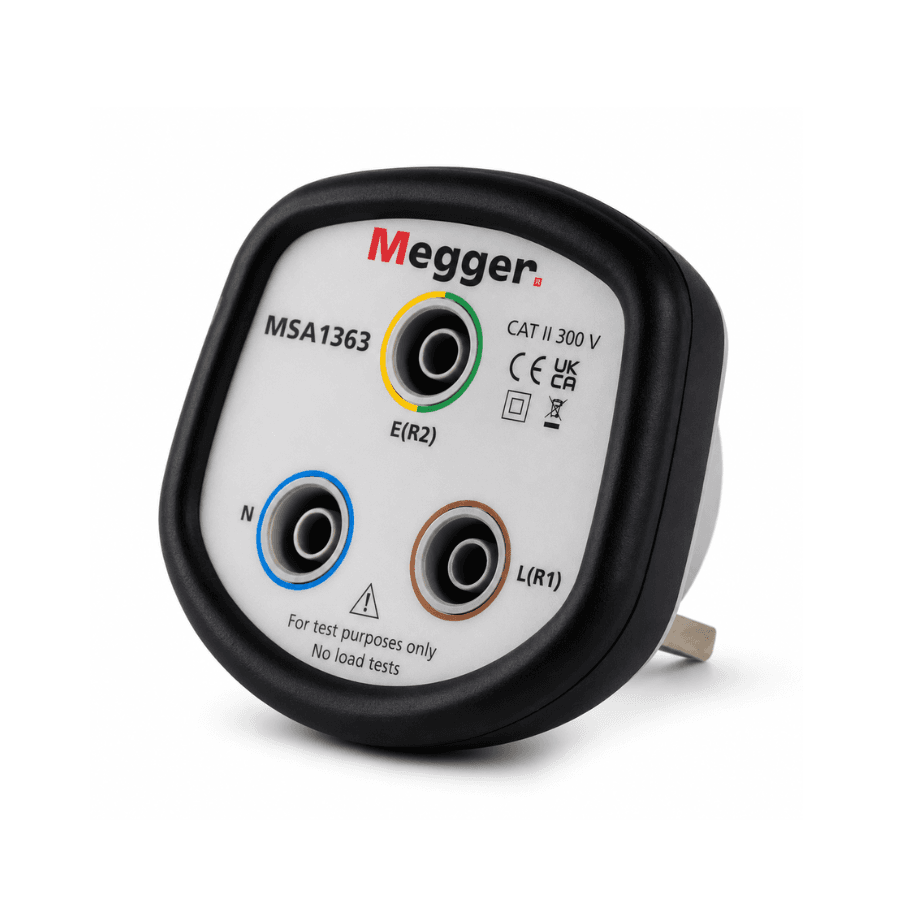

Megger MSA1363 Socket Adapter
The Megger MSA1363 Socket Adapter provides a simple way to connect electrical test instruments to a standard mains socket. It allows direct access to the line, neutral and earth connections without removing the faceplate. This helps save time while also reducing contact with exposed live parts during routine testing.
Designed for everyday electrical work, the Megger MSA1363 Socket Adapter supports both R1 and R2 continuity measurements as well as voltage detection. The front-mounted terminals are clearly colour coded, so each connection is easy to identify. As a result, test leads can be connected quickly with greater confidence.
Fast and Safe Connection
The adapter accepts standard 4 mm terminals, allowing you to connect common test leads used with many electrical test instruments. As a result, it supports a wide range of testing tasks without requiring special connectors. Its compact design also reduces strain on the socket during use.
The Megger MSA1363 Socket Adapter carries a CAT II 300 V safety rating for low-voltage electrical testing in suitable environments. It eliminates the need to dismantle a socket before taking measurements, helping you complete testing more efficiently while reducing unnecessary risk.
Built for Everyday Testing
The compact, lightweight housing makes the adapter easy to carry between jobs. It operates in temperatures from 0°C to 40°C with a relative humidity below 80%, making it suitable for regular inspection and testing work.
Choose from two different set types to match your testing requirements. Supplied under manufacturer part code 1013-837, the Megger MSA1363 Socket Adapter provides electricians and electrical engineers with a safe and reliable solution for accessing socket connections during testing.
Key Features
- Connects directly to line, neutral and earth terminals
- Suitable for R1 continuity measurements
- Suitable for R2 continuity measurements
- Supports voltage detection during testing
- Uses industry standard 4 mm test connections
- Colour coded terminal layout helps reduce connection errors
- Designed for use with standard mains sockets
- Reduces the need to remove socket faceplates
- Helps minimise exposure to live connections
- Compact design for easy transport and storage
- Suitable for professional electrical inspection work
- Two different set types are available
- Manufacturer part code 1013-837
Technical Specifications
| Manufacturer | Megger |
| Product | MSA1363 Socket Adapter |
| Manufacturer Part Code | 1013-837 |
| Application | Connection of electrical test instruments to standard mains sockets |
| Compatible socket type | Standard socket outlet |
| Connection points | Line, Neutral and Earth |
| Supported testing | R1 continuity testing |
| Supported testing | R2 continuity testing |
| Voltage detection | Yes |
| Terminal type | Standard 4 mm terminals |
| Terminal identification | Colour coded |
| Safety category | CAT II 300 V |
| Safety standard | IEC EN61010 CAT II 300 V |
| Rated voltage | 300 V |
| Maximum current | 2 A |
| Operating temperature | 0°C to 40°C |
| Relative humidity | Less than 80% |
| Dimensions | 69 mm × 67 mm × 56 mm (W × H × D) |
| Weight | 65 g |
| Construction | Compact portable design |
| Connection method | Front-mounted test terminals |
| Intended use | Electrical installation testing and inspection |
| Warranty | Not specified |
What’s Included
- Megger MSA1363 Socket Adapter
