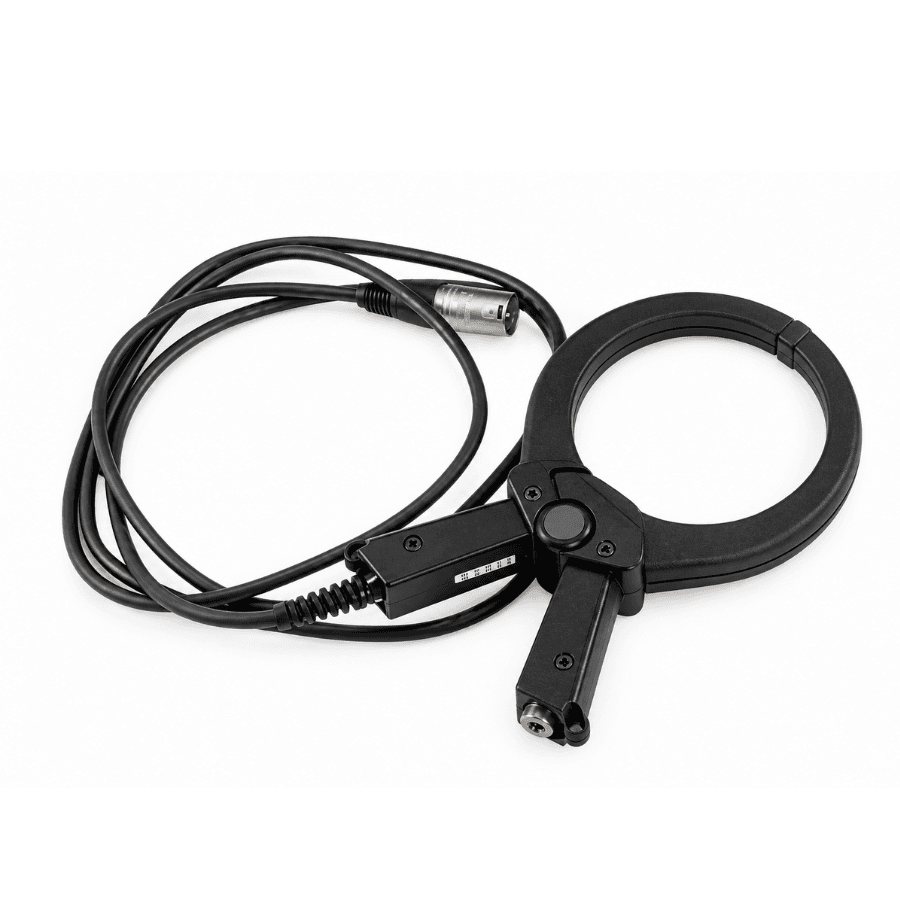

Radiodetection Genny Clamp 4″ (100mm)

Radiodetection Genny Clamp 4″ (100mm)

The Radiodetection Genny Clamp 4″ (100mm) applies a Genny transmitter signal to a specific cable or pipe. It fits around the chosen conductor or pipe and introduces the locating signal inductively. This provides a practical way to apply a signal without making a direct electrical connection to the utility.

With a 4-inch (100 mm) clamp diameter, this standard signal clamp is designed for targeted signal application during cable and pipe locating work. It is particularly useful where a direct connection is not possible or practical. The clamp can also apply a Genny signal to live cables that cannot be de-energised.

Radiodetection Genny Clamp 4″ (100mm), part number 10/GENNY-CLAMP-100, is suitable for use with Radiodetection Genny transmitters. Compatibility information includes Genny4, Genny3 and Genny2, while the 100 mm signal clamp is also specified for use with the Radiodetection C.A.T4 range of Cable Avoidance Tools. Compatibility is also listed with Radiodetection, C-Scope, Leica and Cable Detection equipment.

Key Benefits

• Applies a locating signal directly to a selected cable or pipe without a direct electrical connection.
• Helps target a specific utility rather than relying on a general signal application.
• Supports cable and pipe tracing where direct connection is impractical or not possible.
• Can be used to apply a signal to live cables that cannot be de-energised.
• Its 100 mm clamp size provides a defined opening for the selected conductor or pipe.
• Works with compatible Radiodetection Genny transmitters, including Genny4, Genny3 and Genny2.
• Supports use with the Radiodetection C.A.T4 range for identifying the cable carrying the applied signal.
• Can be used with a compatible extension rod to extend the operator’s reach.

Common Applications

Radiodetection Genny Clamp 4″ (100mm) is suitable for a range of cable and pipe locating tasks, including:

• Applying a Genny locating signal to a specific cable.
• Applying a Genny locating signal to a specific pipe.
• Tracing a selected utility without making a direct electrical connection.
• Working where direct connection to the target utility is not possible.
• Working where a direct connection would be impractical.
• Applying a locating signal to live cables that cannot be de-energised.
• Using a GENNY4 signal generator with compatible C.A.T4 Cable Avoidance Tools.
• Extending clamp reach with the compatible Radiodetection signal clamp extension rod.

Why Choose This Model?

The 4-inch (100 mm) version provides the 100 mm clamp size within the Radiodetection Genny Clamp family. It is designed for users who need this specific clamp diameter for applying a Genny signal to a selected cable or pipe.

General Specifications

Measurement and Accuracy Specifications

Mechanical and General Information

Specification Notes

• The 4-inch clamp size corresponds to a 100 mm clamp diameter.
• The clamp applies the locating signal inductively rather than through a direct electrical connection to the selected utility.
• The compatible 10/TX-CLAMP-EXTROD extension rod is 25″ (630 mm) long, is made from non-conductive nylon and can be joined to additional rods.

What’s Included

• Radiodetection Genny Clamp 4″ (100mm), part number 10/GENNY-CLAMP-100
• Compatible accessory: Radiodetection signal clamp extension rod, part number 10/TX-CLAMP-EXTROD
