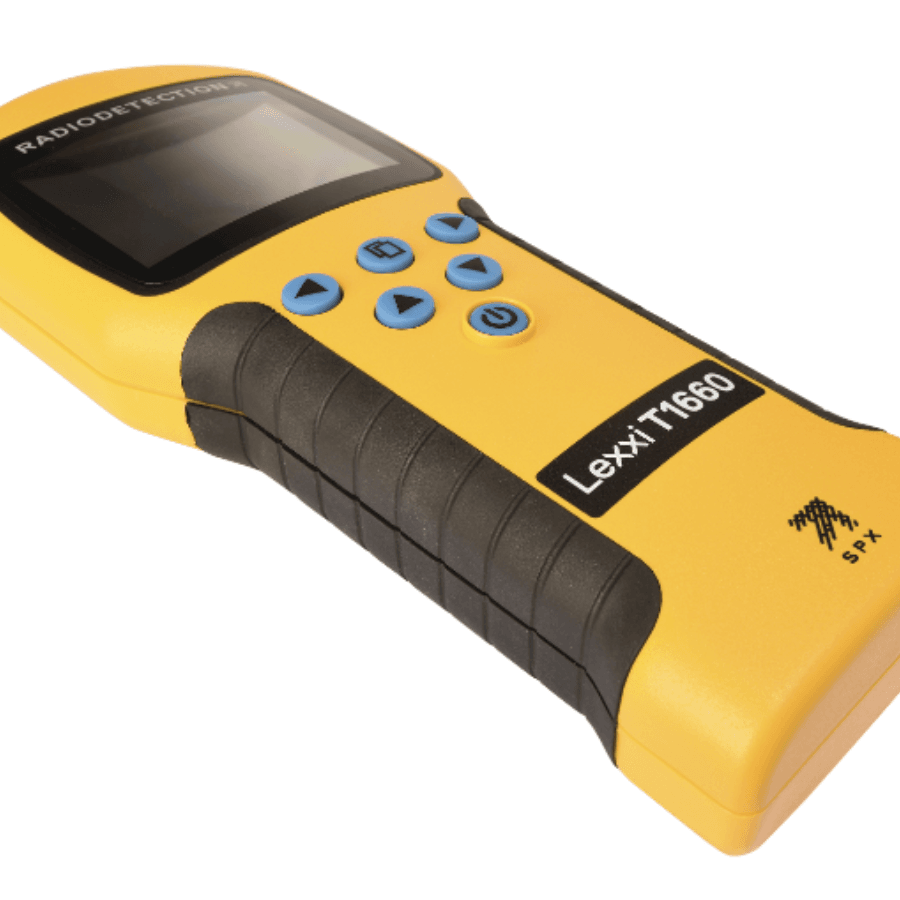

Radiodetection Lexxi T1660 Time Domain Reflectometer

The Radiodetection Lexxi T1660 Time Domain Reflectometer (TDR) sets a new standard as a highly advanced and user-friendly cable fault locator, specifically catering to first responders in the field. Renowned for its innovative design, the T1660 effortlessly combines high-resolution capabilities with handheld portability. This blend makes it an excellent choice for a wide array of applications; therefore, to provide a clearer picture, let’s explore the key features and specifications of the Lexxi T1660:

High-Resolution and Portability

The T1660’s design focuses on handheld use, ensuring ease of operation in various environments and delivering high-resolution readings for precise fault detection.

Performance Range and Accuracy

It has a remarkable range of 7 meters minimum to 6 kilometres maximum, coupled with a minimal dead zone of 0.5 meters. The device ensures 1% distance resolution and accuracy, allowing technicians to locate faults with exceptional precision.

Unique TDR Engine and Range Settings

Equipped with a unique TDR engine, the T1660 offers 11 range settings. This makes it versatile for analysing various types of metallic cables, including CATV, Ethernet, twisted pair telecom, and low-voltage power cables. These cables typically consist of at least two metallic elements, one of which can be the screen or armour.

Customisable Components

The T1660 allows for customization in its operation. Users can adjust the Velocity Factor (VoP) between 1% and 99% and select a cable output impedance of either 25, 50, 75, or 100 ohms to suit different cable types and conditions.

Display and User Interface

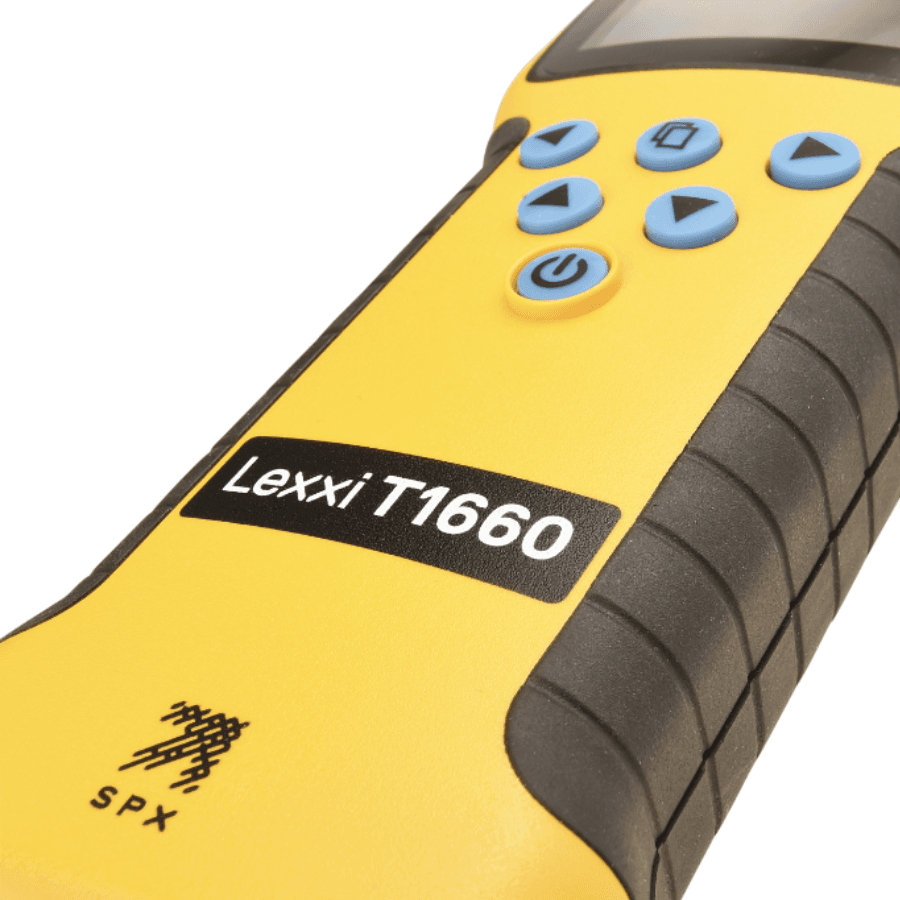

A 3.5-inch backlit colour display with a resolution of 328 x 256 pixels is standard, offering clear, large, and easy-to-read results. This enhances fault finding even in challenging conditions. Additionally, the device is designed for simplicity, featuring six control buttons and an intuitive menu system.

Power and Battery Life

The T1660 can be powered by either alkaline or NiMH rechargeable batteries. It boasts a significant battery life of approximately 12 hours, along with a user-selectable Power Down time, optimizing its use during extended field operations.

Durability and Standards Compliance

The device is rated IP54, indicating its resistance to dust and water ingress, making it suitable for use in various environments. Furthermore, it complies with EMC BS/EN 61326-1 standards, ensuring reliability and safety in its operation.

The Lexxi T1660 excels in performance, accuracy, and affordability. It’s ideal for technicians needing to quickly and accurately locate cable faults. The device’s ergonomic design enhances user comfort. Its customisable features and sturdy construction make it a valuable tool. This Reflectometer boosts productivity in field diagnostics and maintenance.

Key Features

Unique TDR engine enhances fault detection accuracy.
Eleven range settings for diverse cable types and lengths.
Large 3.5-inch backlit colour display for clear visibility.
Simple user interface with six control buttons.
Dual power options: alkaline or NiMH rechargeable batteries.
12-hour battery life suitable for extended use.
User-selectable power down to conserve battery.
IP54 rating for dust and water resistance.
Complies with EMC BS/EN 61326-1 standards.
Suitable for CATV, Ethernet, telecom, and LV power cables.
Ergonomically designed for easy handling and efficiency.
