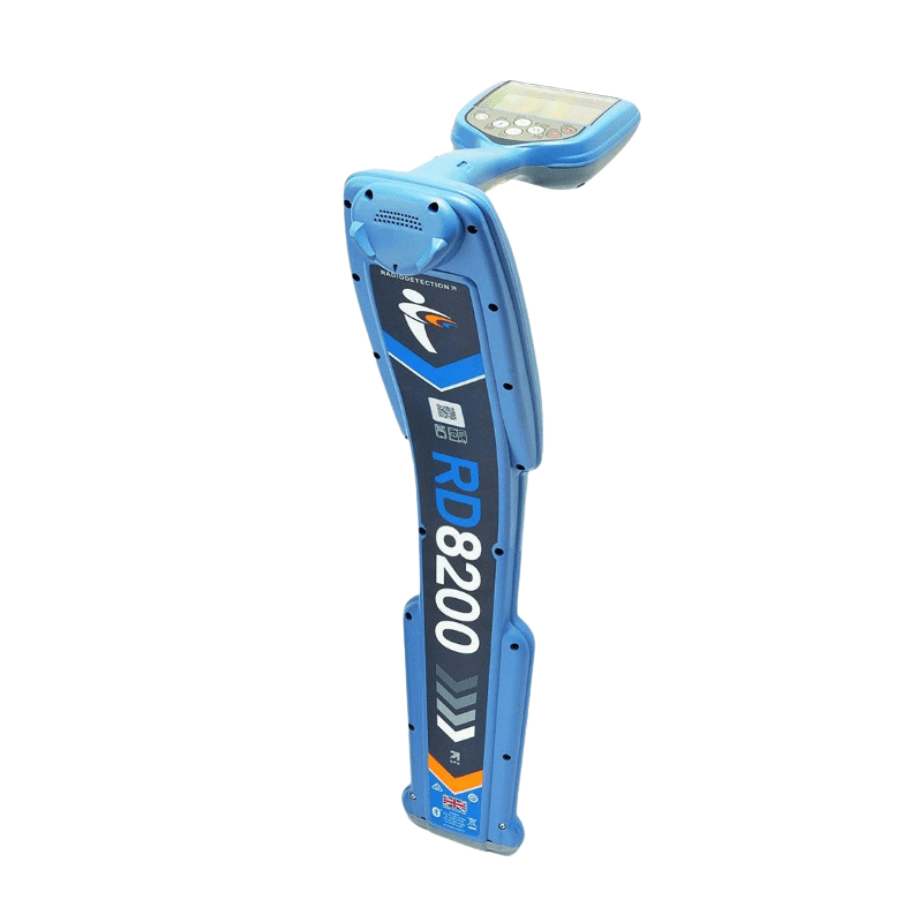

Radiodetection RD8200 Cable & Pipe Locator
Radiodetection RD8200 Cable & Pipe Locator gives operators a precise way to detect and trace buried cables and pipes. Its digital signal processing identifies signals accurately in complex underground networks. Active, passive, sonde and custom frequencies give operators the flexibility to handle a wide range of locating tasks.
TruDepth displays depth information when the operator positions the locator correctly over the target, while Current Direction helps confirm that the operator is following the right line. Peak+ mode combines Peak locating with Guidance or Null modes to help operators reach the peak position and identify distortion. Dynamic Overload Protection and SideStep also help operators maintain reliable locating performance in areas affected by strong or competing signals.
Field-focused features help operators work safely and efficiently throughout the day. The transflective low-power LCD uses ambient light to improve screen readability in direct sunlight, while audio and vibration alerts help operators respond in noisy environments. StrikeAlert warns operators about shallow cables, the Swing Warning System encourages correct handling, and the lightweight IP65-rated design suits demanding outdoor conditions.
Sonde Locate Performance Update
Radiodetection provides Sonde Locate Performance as a free firmware update through RD Manager Online for RD7200, RD8200 and RD8200G precision locators. The updated workflow guides operators from initial signal acquisition through to precise pinpointing and improves signal interpretation for depth and lateral positioning. Proportional left and right arrows, together with forward and backward guidance, show sonde orientation and help operators track sondes used with pushrod and crawler cameras more consistently.
Key Benefits
- TruDepth gives precise depth information when the locator is correctly positioned above the target.
- Current Direction helps confirm the correct target when several utilities run in parallel.
- Peak+ combines Peak locating with Guidance or Null modes to support faster, more confident pinpointing.
- Dynamic Overload Protection automatically rejects strong interference in electrically noisy areas.
- SideStep shifts the locate frequency to help maintain operation where interference affects the selected frequency.
- StrikeAlert, Swing Warning, audio alerts and handle vibration help operators work safely and correctly in demanding locations.
- Usage logging with GPS positioning records locate parameters for field analysis, proof of work and operating reviews.
- Bluetooth connectivity, iLOC control and RD Manager support remote operation, data handling, calibration and software management.
- Fault Find mode can be used with an accessory A-frame to locate cable sheath faults to within 4 in or 10 cm.
- Its lightweight, balanced design supports comfortable use over extended periods.
Common Applications
Radiodetection RD8200 Cable & Pipe Locator is suitable for a range of testing, maintenance and inspection tasks, including:
- Detecting and tracing buried utility cables and pipes.
- Tracing individual power lines through dense or congested networks.
- Locating telecom lines over longer distances using the 4 kHz locate frequency.
- Identifying the correct target among parallel utilities using Current Direction.
- Carrying out passive perimeter scans for Power and Radio signals before excavation.
- Tracking sondes used with pushrod and crawler camera systems.
- Locating cable sheath faults when used with a compatible accessory A-frame.
- Recording locate and survey information for field analysis and proof of work.
Why Choose This Model?
Radiodetection RD8200 Cable & Pipe Locator combines TruDepth, Current Direction, Peak+, Dynamic Overload Protection, SideStep, usage logging, GPS positioning and Bluetooth connectivity in a lightweight IP65-rated locator. It also supports Sonde Locate Performance through a free RD Manager Online firmware update.
