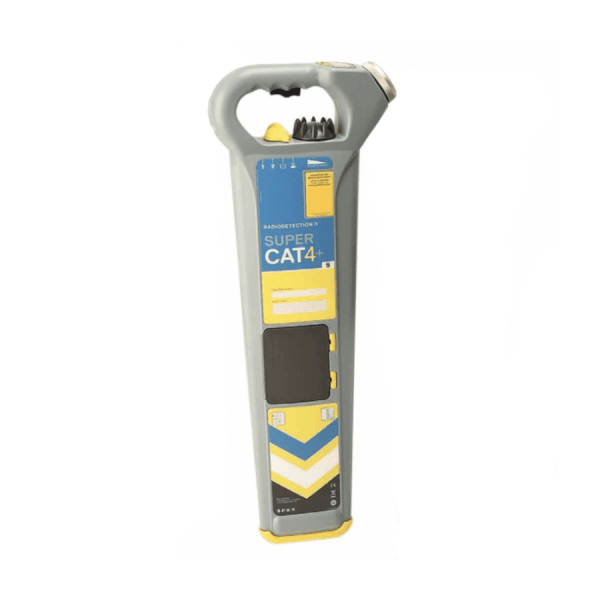

Radiodetection SuperCAT4+ S Locator
The Radiodetection SuperCAT4+ S Locator is a high-precision utility locator designed to trace water and drain pipes using a wide range of sonde frequencies. Its advanced detection capabilities make it suitable for identifying both metallic and non-metallic pipes, ensuring precise asset location in various environments. The device includes multiple passive and active locating modes to enhance accuracy and reliability.
Enhanced Detection Capabilities
Detecting multiple sonde frequencies, this locator accurately finds underground pipes, whether cast iron or non-metallic. Power Mode and Radio Mode efficiently trace utilities without additional accessories. Pairing it with the optional T1-640 Transmitter enables active line locating, expanding its functionality for more complex detection tasks.
Built for Durability and Safety
The locator is built for on-site use with a robust IP54-rated ABS casing, protecting it from dust and water. Its comfortable design includes a backlit display, a removable protective boot, and easy-to-use controls for ease of operation. Safety features such as StrikeAlert warn users of shallow power cables, while Dynamic Overload Protection filters out electrical disruptions, allowing for smooth performance in high-power areas.
Users can view precise depth readings in compatible modes with the integrated depth measurement feature. Two D-cell batteries power the device, and a USB data port allows for future software updates, ensuring long-term usability.
For enhanced performance, pairing the locator with the T1-640 Transmitter allows for direct, induction, or clamp-based signal application. This combination provides a comprehensive solution for accurately locating buried utilities.
Key Features
- Detects a wide range of sonde signals for water and drain pipes
- Works with both metal and non-metal underground utilities
- Passive tracking modes include Power Mode and Radio Mode
- Active tracking is available when used with the T1-640 Transmitter
- StrikeAlert system warns about shallow power cables
- Dynamic Overload Protection ensures performance in high-interference areas
- Built-in depth measurement provides accurate readings
- Made for all weather conditions with durable IP54-rated casing
- Auto-backlit screen with an easy-to-read bar graph display
- USB port supports future software updates
- Works with the FlexiTrace tool for continuous signal tracking
- Simple, responsive controls allow easy operation in the field
