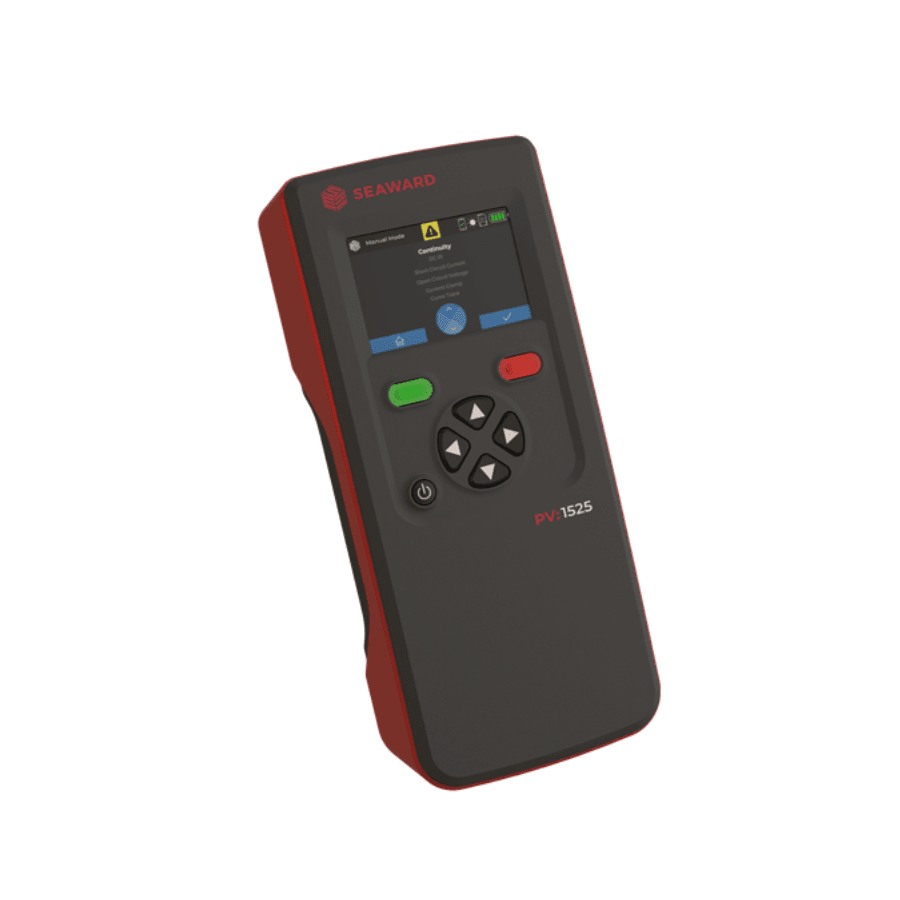

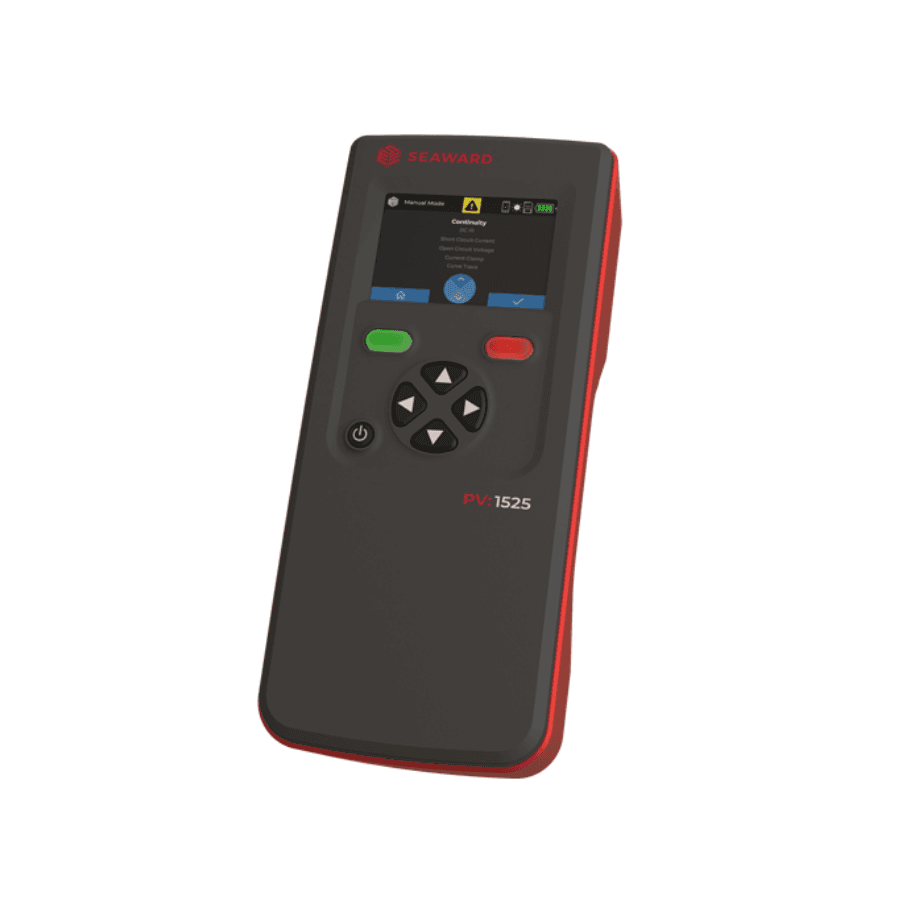

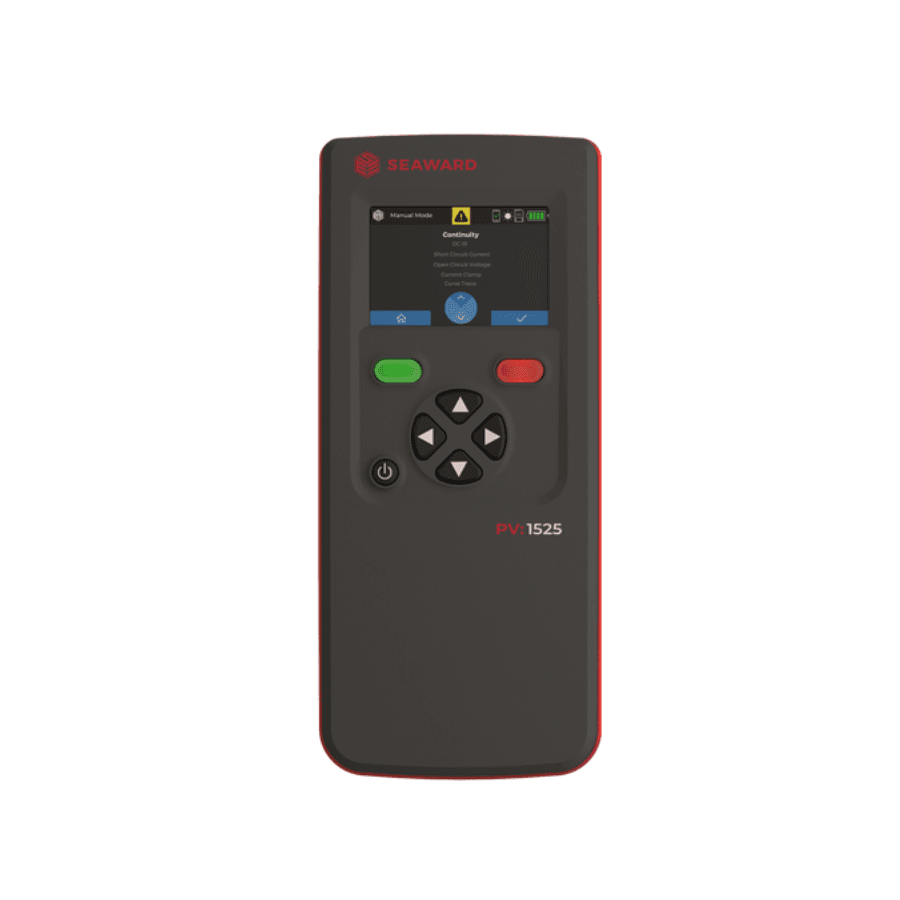

Seaward PV1525 Complete PV Test Kit
The Seaward PV1525 Test Kit provides a complete solution for photovoltaic commissioning, maintenance and fault finding. Designed for professional installers and O&M engineers, it supports critical safety and performance tests across modern PV systems. As a result, technicians can complete verification tasks with greater confidence and efficiency.
Reliable testing is essential during installation and servicing. Therefore the Seaward PV1525 Test Kit combines voltage, current and resistance measurements within a single portable instrument. It supports PV systems up to 1500 V DC and 25 A while helping technicians maintain safe working practices through built-in voltage warnings and input protection.
Designed for Efficient PV Commissioning
Clear on-screen guidance helps technicians follow consistent testing procedures across solar arrays. The integrated display provides easy visibility in bright outdoor environments, while internal memory allows results to be stored directly on the tester. Consequently, readings can be organised and transferred later without needing additional equipment on site.
Streamlined Data Management
Bluetooth connectivity allows the Seaward PV1525 Test Kit to send test data to the PV:Sync mobile application. This enables users to review readings, add job details and export results to SolarCert software for certification documents. Wireless firmware updates also help ensure the tester stays current with the latest features.
Portability remains an important part of the design. The Seaward PV1525 Test Kit includes the tester, leads, wireless clamp and irradiance meter in a single carry case. This keeps tools organised and allows installers to move efficiently between testing locations while maintaining accurate and traceable results.
Key Features
- Designed for commissioning and maintenance of photovoltaic systems
- Supports PV system testing up to 1500 V DC installations
- Measures photovoltaic string short circuit current up to 25 A
- Integrated colour display improves visibility in outdoor environments
- Internal memory stores up to 1000 test results
- Bluetooth communication supports wireless transfer of test data
- Compatible with PV:Sync mobile app for job management
- SolarCert software licence included for certification workflows
- Rechargeable lithium battery provides portable field operation
- Wireless current clamp enables fast string current measurement
- Supplied irradiance meter supports performance evaluation
- Carry case keeps all tools organised during transport
- Panel mounting bracket supports quick irradiance meter positioning
- Calibration certificates included for traceable documentation
Technical Specifications
| Manufacturer |
Seaward |
| Product name |
PV1525 Complete PV Test Kit |
| Manufacturer part code |
601A910 |
| PV system voltage limit |
Up to 1500 V DC |
| PV current limit |
Up to 25 A DC |
| Open circuit voltage display range |
0.0 V DC to 1500 V DC |
| Open circuit voltage measuring range |
5.0 V DC to 1500 V DC |
| Voltage resolution |
0.1 V DC maximum |
| Short circuit current display range |
0.00 A DC to 25.00 A DC |
| Short circuit current measuring range |
0.50 A DC to 25.00 A DC |
| Short circuit current resolution |
0.01 A DC maximum |
| Maximum power measurement |
37.5 kW |
| Earth continuity display range |
0.00 Ω to 199 Ω |
| Earth continuity measuring range |
0.05 Ω to 199 Ω |
| Earth continuity test current |
More than 200 mA into 2 Ω |
| Earth continuity test voltage |
Greater than 4 V DC nominal open circuit |
| Insulation resistance test voltages |
250 V, 500 V, 1000 V and 1500 V |
| Insulation resistance display range |
0.05 MΩ to 300 MΩ |
| Insulation resistance resolution |
0.01 MΩ maximum |
| Insulation resistance test current |
2 mA short circuit |
| Voltage warning threshold |
Visible warning above 30 V AC or DC |
| Voltage measurement range |
30 V to 440 V AC or DC |
| AC frequency range |
50 Hz to 60 Hz |
| Operating current measurement |
0.1 A to 400 A DC using wireless clamp |
| Operating power measurement range |
0.50 kW to 600 kW |
| Operating power resolution |
0.01 kW |
| Display |
3.5 inch colour display with backlight |
| Onboard memory |
1000 measurement slots |
| Power source |
11.55 V 2930 mAh rechargeable lithium polymer battery |
| Dimensions |
265 mm x 115 mm x 78 mm |
| Weight |
Approximately 1 kg |
| Overvoltage category |
CAT III 1500 V |
| Ingress protection |
IP40 |
| Data interfaces |
Bluetooth LE and long range RF connectivity |
| Warranty |
24 month warranty with product registration |
Document Downloads

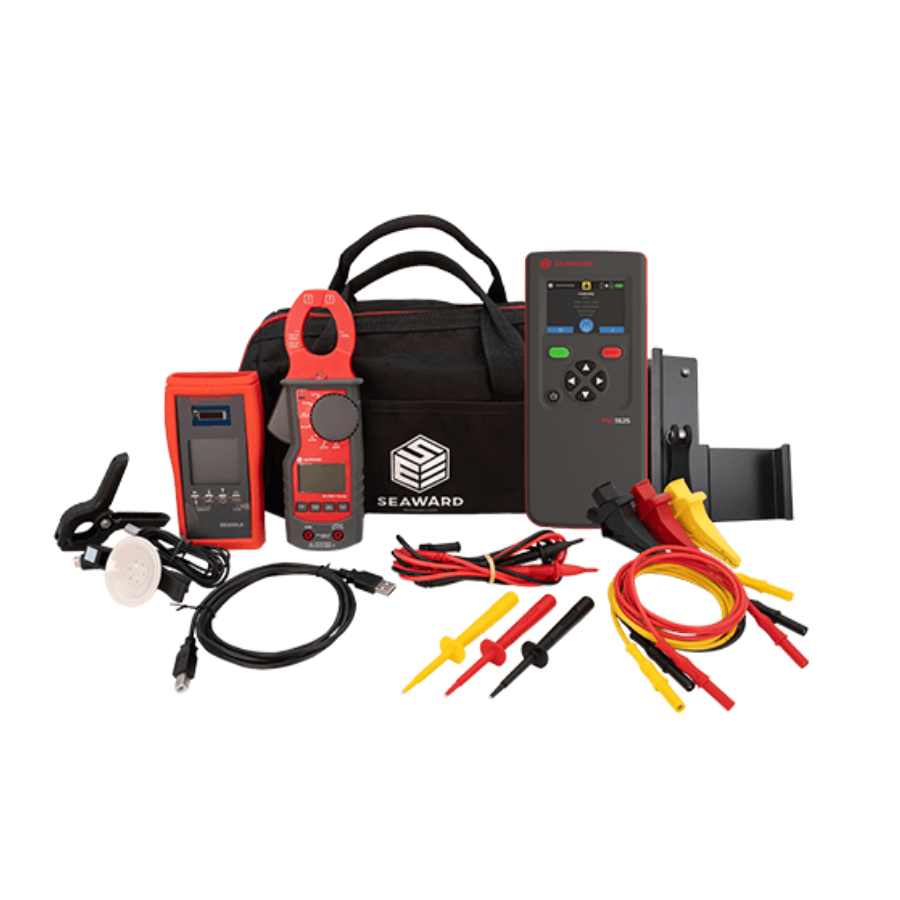

What’s Included
- PV1525 PV testing instrument
- Set of 4 mm test probes with alligator clips
- Instrument to MC4 test leads
- Rechargeable battery pack
- Battery charging cradle
- Quick start guide
- Calibration certificate
- Two declaration of conformity documents
- PV1500 wireless current clamp
- SS200LR irradiance meter
- Solar panel quick release mounting bracket
- Protective carry case
- SolarCert software licence
