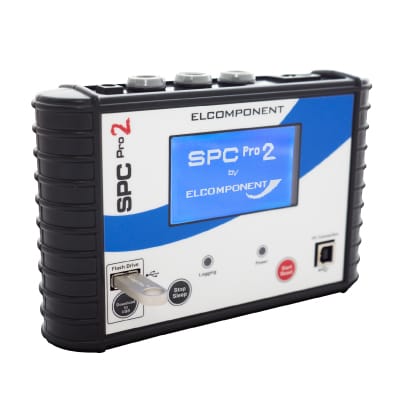

SPC PRO 2 3-Phase Data Logger
The SPC PRO 2 is a 3-phase electricity data logger designed for three-phase and single phase electrical load logging. It uses the proven “3 currents, 1 voltage” hook-up, with three flex type CTs for current measurement and one voltage connection via a standard wall socket.
The SPC PRO 2 measures voltage amplitude, current amplitude and current phase angle. Then, through the dedicated PowerPackPro software, it presents key values including voltage, current, power factor, kW, kWh, kVArh, cost and CO2 emissions. As a result, users can record load data and review it through graphs, tables, summaries and reports.
Efficient Data Logging and Reporting
The SPC PRO 2 uses fully auto-ranging current measurement across 2A to 2000A. Therefore, users do not need to set the range manually or swap CTs during set-up. In addition, the unit stores 1 x voltage, 3 x current and 3 x phase angle values in memory, with each stored value based on the average of cached readings since the previous store.
PowerPackPro provides logger set-up, status checks, download, data configuration, multiple trace zoom graphing, carbon footprint calculation, multi-rate tariff costing, alarm reporting, statistical analysis, summary reporting and data export to Microsoft Office. Moreover, survey data can be downloaded by USB connection to a PC or via USB flash drive.
Built for Site Work
The SPC PRO 2 has an ABS case with IP30 protection and operates from a 230VAC external supply or its internal Li-ion battery. The battery charges from the mains connection, while the compact unit is supplied in a zip holdall to keep the kit together. Meanwhile, magnetic feet allow the unit to attach to ferrous metal surfaces during use.
Key Features
- 3-phase electricity data logger for three-phase and single phase electrical loads
- “3 currents, 1 voltage” hook-up with one voltage connection
- 1 x voltage input via pluggable power cable
- 3 x current inputs via integral flex type CTs
- Fully auto-ranging current measurement from 2A to 2000A
- Stores voltage, current and phase angle data in memory
- 200,000 record memory capacity
- USB download to PC and USB flash drive
- PowerPackPro software for graphing, reporting, tariffs, alarms and data export
- Magnetic feet supplied as standard
Technical Specifications
| Input channels | 1 x voltage via pluggable power cable, 3 x current via integral flex type CTs |
|---|---|
| Voltage range | 230VAC +/- 15%, 50-60Hz |
| Current ranges | 2-20A, 20-200A, 200-2000A, fully auto-ranging |
| Unit dimensions | L=183mm, H=41mm, W=120mm, excluding CTs |
| Flex CT diameter | 150mm |
| Flex CT length | 450mm |
| Flex CT cable length | 1.8m |
| Protection level | IP30 |
| Case | ABS |
| Operating temperature | -20 to 50 Deg C |
| Humidity | Max 80% relative non-condensing |
| Power supply | 230VAC external, Li-ion internal battery |
| Battery charging | Integral charger from mains connection |
| Measurement technique | Digital sampling |
| Sample rate | 1.6kHz |
| Update rate | 1 second, stored to cache |
| Stored values | 1 x voltage, 3 x current, 3 x phase angle |
| Memory capacity | 200,000 records |
| Survey length | 10 weeks at 30 second storage |
| Download | USB download to PC and USB flash drive |
| Voltage accuracy | 0.5% of measurement +/- 2.0V |
| Current accuracy | 2-20A: 0.5% of measurement +/- 0.5A; 20-200A: 0.5% of measurement +/- 2.0A; 200-2000A: 0.5% of measurement +/- 5.0A |
| kWh accuracy | < 2% typical in software |
| Electrical safety, unit | IEC1010 600V CAT III, 300V CAT IV |
| Electrical safety, flex CTs | IEC1010 1000V Cat III |
| Software | PowerPackPro for Windows XP Pro, Vista, W7, W8 and W10 |
What’s Included
- SPC Pro 2 unit c/w 3 x flex CTs
- USB Download Cable
- Mains Lead
- PowerPackPro Software
- Zip Holdall
- Flash Drive
