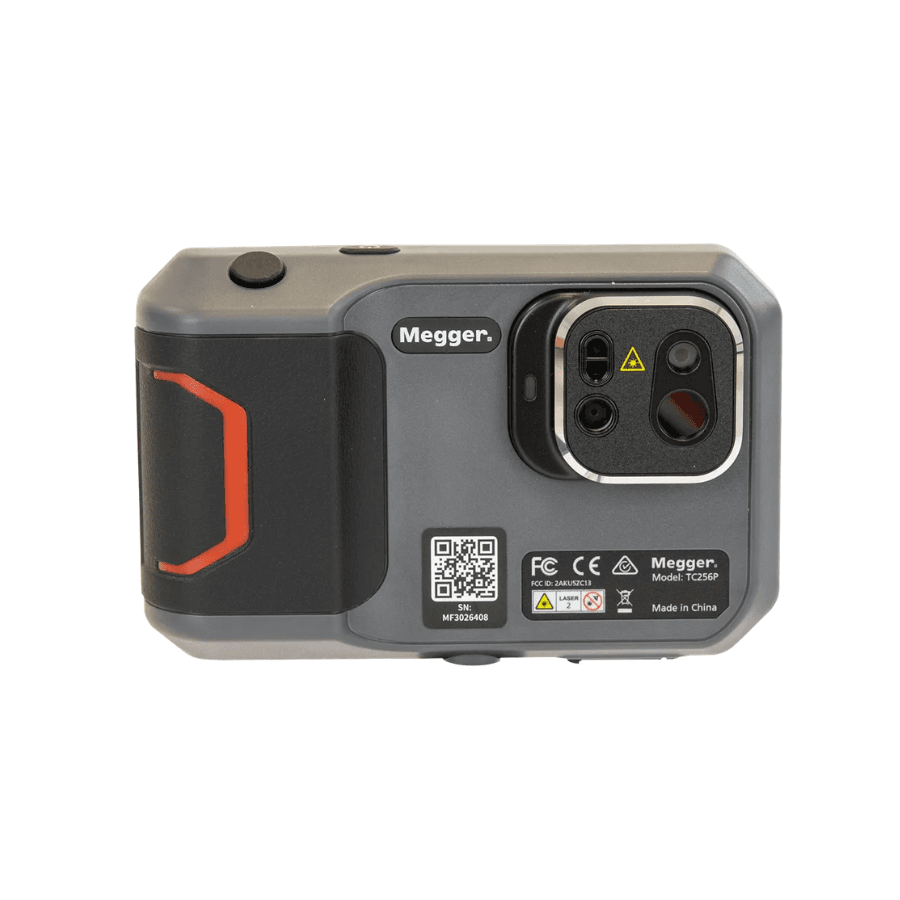

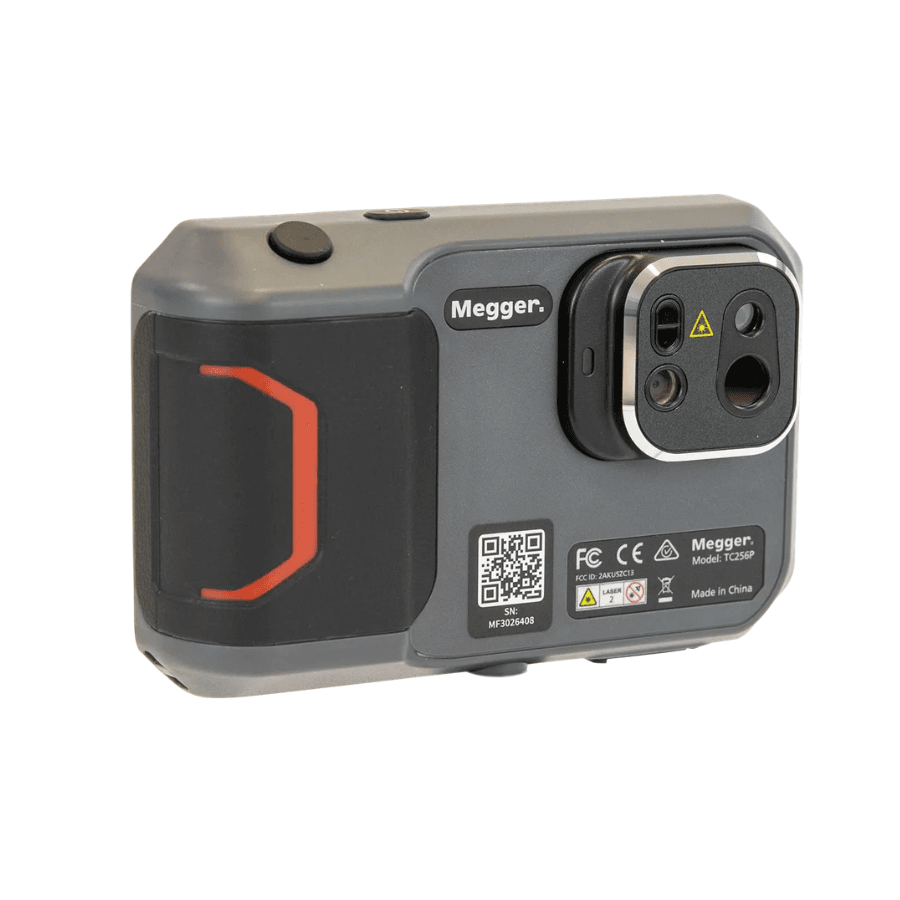

Megger TC256P Pocket Sized Thermal Camera
The TC256P Pocket Sized Thermal Camera gives users a compact way to find heat loss, hot spots, and hidden faults without contact. It uses a 256 x 192 infrared detector to produce clear thermal images for daily checks. As a result, users can inspect electrical, mechanical, HVAC, and building systems with greater speed.
This pocket-sized unit combines thermal imaging with visible light capture. It includes a 5 MP digital camera, video recording, and a 3.5-inch LCD colour touchscreen. Therefore, users can view, save, and share inspection results from one easy-to-use tool.
Clear Imaging and Measurement
The TC256P Pocket Sized Thermal Camera supports InfraRed, Visible Light, Multi-Image Fusion, and Picture-in-Picture image modes. These modes help users compare heat data with visual detail, which makes issues easier to understand. In addition, the digital zoom gives 1.1x to 8x viewing for closer image checks.
Its measurement range runs from -20°C to 550°C with auto-switching. Measurement accuracy is ±2°C or ±2%, whichever is greater, and the spot tools include two points, a centre spot, and three areas. This helps users check key parts of a scene without complex setup.
Field Use, Sharing and Recording
Built-in Wi-Fi lets users connect to the mobile terminal for image sharing and real-time video transmission. Files can also be shared through the Thermography mobile app, while ThermoLink PC software supports further work on a computer. The TC256P Pocket Sized Thermal Camera records images as JPG files with temperature information.
A rechargeable lithium-ion battery gives up to 4 hours of operation. USB-C charging supports use with a PC or portable charger, and the unit can charge while in use. With IP54 protection, a 1 m drop test, laser ranging, and 16 GB internal storage, the TC256P Pocket Sized Thermal Camera suits many site inspection tasks.
Key Features
- Compact thermal camera for non-contact inspection work
- Clear 256 x 192 infrared imaging for fault finding

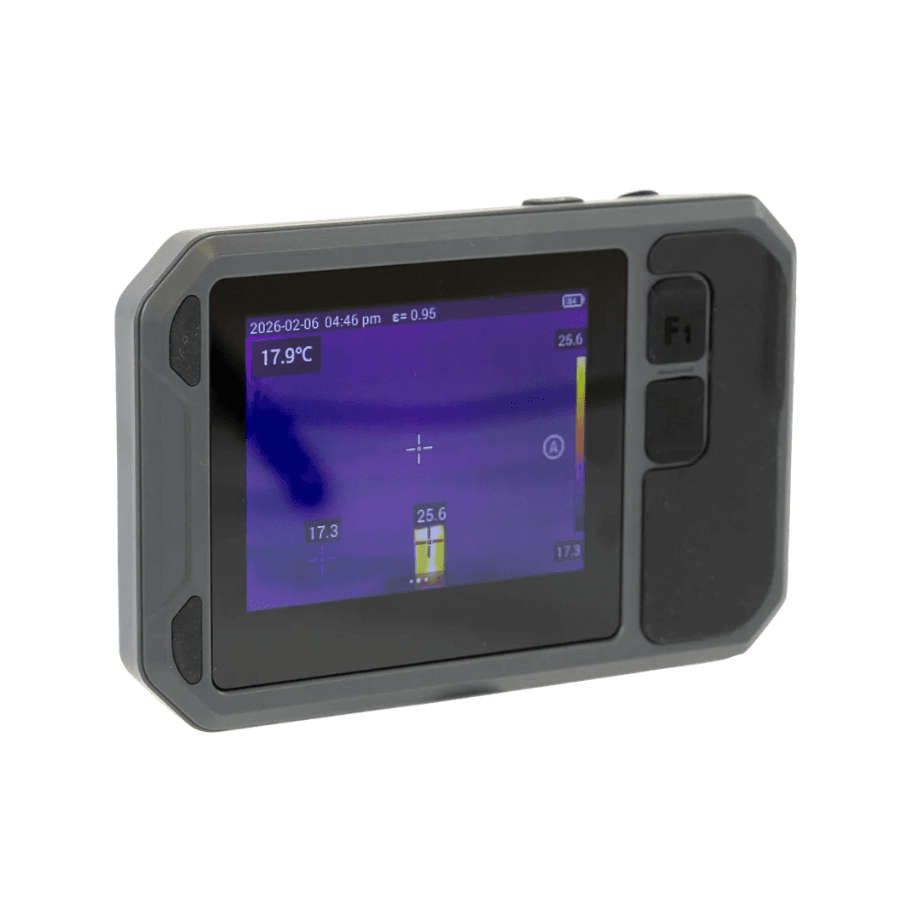

- 3.5-inch colour touchscreen supports simple operation
- 5 MP visible camera supports photo and video capture
- Multi-Image Fusion helps reveal useful scene detail
- Picture-in-Picture mode supports faster image checks
- Laser ranging helps confirm target distance on site
- Area calculation tool supports rectangle object checks
- Wi-Fi connection allows image sharing by mobile app
- Real-time video streaming supports live inspection work
- IRGD video storage works with ThermoLink PC software
- Fast image review helps users find stored results
- Four-hour operation supports routine field inspection
- USB-C charging supports PC and portable charger use
- Custom function buttons allow quicker access to tools
- IP54 protection helps the unit cope with site conditions
Technical Specifications
| Product name | Megger TC256P Pocket Sized Thermal Camera |
| Manufacturer part code | 1016-973 |
| Detector type | VOx, 7.5–14 µm |
| Infrared resolution | 256 x 192 pixels, 12 µm |
| NETD | 45 mK |
| Frame rate | 25 Hz or 9 Hz |
| Focal length | 3.2 mm |
| Field of view | 56° x 48° |
| IFOV | 3.75 mrad |
| Minimum object distance | 0.3 m |
| Distance to spot ratio | 266:1 |
| Focusing mode | Focus-free |
| Digital zoom | 1.1x to 8x |
| Measurement range | Auto-switching, -20°C to 150°C and 100°C to 550°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analysed target | Spot x 2, centre spot, area x 3 |
| Alarm | Full screen temperature threshold alarm with image and flash |
| Parameter settings | Emissivity, reflected temperature, target distance |
| Screen size | 3.5-inch LCD colour touchscreen |
| Image modes | InfraRed, Visible Light, Multi-Image Fusion, Picture-in-Picture |
| Colour palettes | Iron Red, White Hot, Black Hot, Arctic, Rainbow, Hot Iron |
| Image adjustment | Level span modes, automatic, semi-automatic, manual |
| Digital camera | 5 MP |
| Laser function | Laser indication and ranging |
| Recording function | Photo |
| Cloud services | Available |
| Other functions | Customisable function buttons F1 and F2 |
| Storage media | 16 GB internal storage |
| Image file type | JPG with temperature information |
| External interface | USB-C and tripod mounting |
| Wi-Fi | Connection to mobile terminal for image and real-time video transmission |
| Battery type | Rechargeable lithium-ion battery, non-removable |
| Operating time | 4 hours |
| Charging mode | USB-C charging, PC or portable charger, capable of charging while in use |
| Charging time | 90% of full charge in 2.5 hours |
| Working temperature | -10°C to 50°C |
| IP rating | IP54 |
| Drop test | 1 m drop test |
| Certification | CE, FCC, RoHS, KC, Anatel, IP54, damp heat test, vibration test, shock test, impact test, UN38.3, MSDS |
| Spotlight | 1 |
| Weight | 296 g |
| Size | 138 x 89 x 34 mm |
| Software kit | PC ThermoLink app, iOS and Android Thermography app |
| Warranty | Camera 2 years, battery 1 year |
Comparison Table
| Area | TC256P Pocket Sized Thermal Camera | Practical benefit |
| Thermal detector | 256 x 192 VOx detector with 45 mK NETD | Gives clear heat images for fault checks |
| Measurement range | -20°C to 550°C with auto-switching | Covers low and high temperature tasks |
| Image display | 3.5-inch LCD colour touchscreen | Makes viewing and control simple on site |
| Image modes | InfraRed, Visible Light, Multi-Image Fusion, Picture-in-Picture | Helps users compare thermal and visual detail |
| Target tools | Laser ranging, spot tools, centre spot, and area tools | Supports focused checks of key parts |
| File handling | 16 GB internal storage and JPG files with temperature information | Stores useful records for later review |
| Connectivity | Wi-Fi, USB-C, mobile app, and ThermoLink PC app | Supports sharing, charging, and computer workflows |
| Power system | Non-removable rechargeable lithium-ion battery | Provides up to 4 hours of field use |
| Site durability | IP54 rating, 1 m drop test, and 296 g body | Suits portable work across many locations |
Document Downloads
What’s Included
- Megger TC256P thermal camera

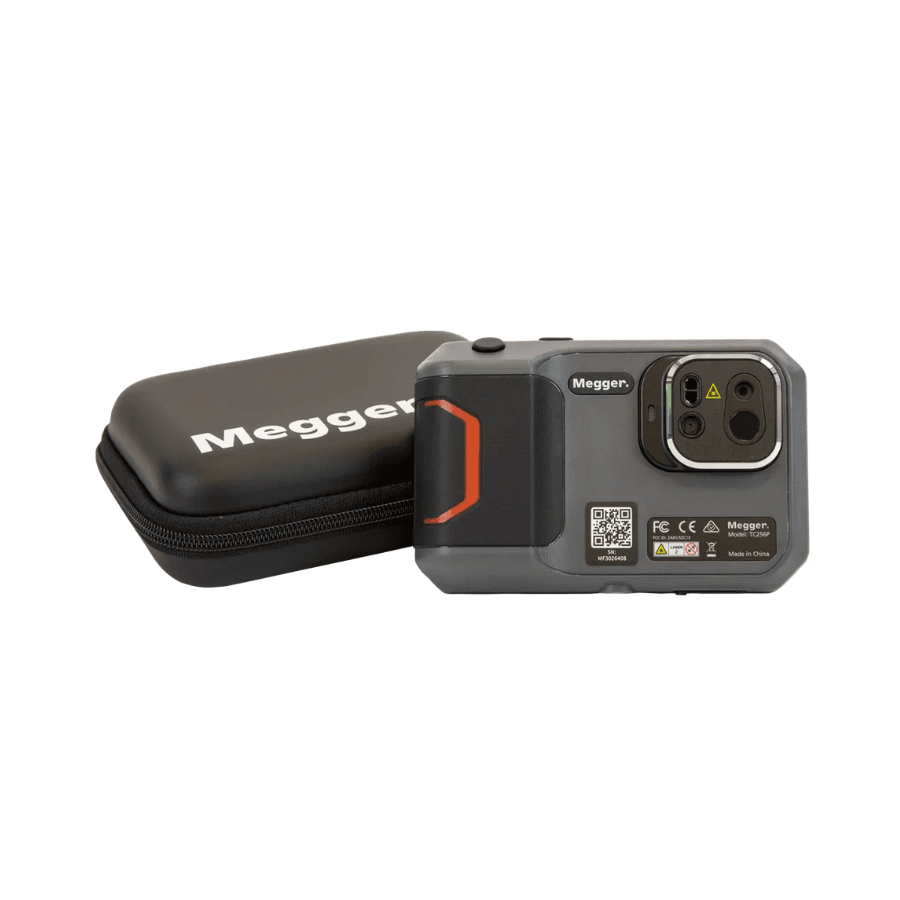

- Rigid protective case
- Wrist strap
- Power adaptor
- USB-A to USB-C cable
- USB-C cable
- Battery charger including UK, EU and AU plug adaptors
- Quick start guide
- Calibration certificate
