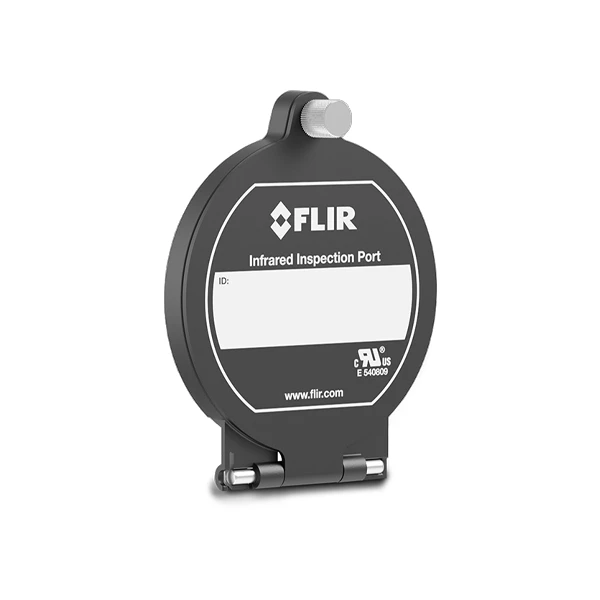

The Teledyne Flir IRP-1 Indoor Inspection Port lets maintenance teams view energised switchgear through a safe plastic window. They stay out of harm and finish a full thermal check in less time than it takes to remove one panel.
Boost Daily Throughput
Because the port works with the 80‑degree infrared lens, you can scan every cable run in one sweep across the cabinet. As a result workers spend less time dressing in arc‑flash PPE and more time solving real faults.
Reliable Imaging Every Time
Unlike crystal‑based windows, the clear opening adds zero signal loss, so the camera sees true temperatures. This means you do not need to enter window transmission data or carry extra correction charts in the field.
The port installs through a neat 21 mm circular hole with the gasket and screws that arrive in the box. Fit it once and it becomes a safe, code‑compliant inspection point for years of predictive checks.
Key features
- Lens mates directly with FLIR 80‑degree accessory for wide cabinet coverage
- Plastic PC PBT body isolates live parts from the operator
- Anodised aluminium cover protects the window from dust and knocks
- Stainless steel hardware resists corrosion in humid plant rooms
- Twenty one millimetre hole size simplifies drilling through metal doors
- Window rated to one hundred degrees Celsius for hot enclosures
- Design eliminates crystalline optics so thermal transmission remains accurate
- NFPA 70B line of sight compliance supports audit readiness
- Indoor NEMA type two‑fifty sealing guards against splashed water
- Lightweight format reduces load on thin sheet‑metal doors
