Testo 560i Digital Refrigerant Scale
Accurate refrigerant charging is essential for efficient cooling systems. The Testo 560i Digital Refrigerant Scale provides a reliable solution for technicians working with refrigeration and heat pump equipment. It allows fast and precise charging while also reducing manual calculations during service work.
Using smart wireless communication, the Testo 560i connects directly to the Testo Smart App. This connection allows technicians to monitor charging data from a smartphone or compatible device. As a result, measurements are easier to view and record while working on systems in different locations.
Smart Charging Control
Efficient charging is supported through several automatic programmes available in the Testo Smart App. These modes allow technicians to charge refrigerant based on target superheat, subcooling or refrigerant weight. With the Testo 560i, users can simply select a charging mode and allow the system to complete the process.
Data is also recorded through the mobile application. This means technicians can review measurements and keep service records without additional tools. Because the Testo 560i works wirelessly, charging can be controlled from a safe and convenient distance during service tasks.
Practical Design for Daily Use
Built with a strong metal platform, the Testo 560i Digital Refrigerant Scale can support cylinders weighing up to 100 kg. Despite its strength, the scale remains lightweight and easy to move between job sites. The integrated handle and included shoulder carry bag make transport simple for engineers on the move.
Bluetooth communication provides a wireless range of more than 30 metres in open areas. Combined with long battery life, the Testo 560i offers dependable operation throughout a full working day. This practical design helps refrigeration engineers work faster and maintain accurate charging results.
Key Features
- Wireless connection allows remote refrigerant charging control
- Compatible with the Testo Smart App for mobile operation
- Automatic charging programmes improve service efficiency
- Lightweight scale body supports easy transport between jobs
- Integrated carry handle improves handling during installation
- Shoulder bag included for convenient equipment storage
- Metal platform construction supports demanding field work
- Automatic data storage helps maintain service records
- Designed for refrigeration systems and heat pump servicing
- Reliable weighing performance supports accurate charging
Technical Specifications
| Manufacturer | Testo |
| Product name | Testo 560i Digital Refrigerant Scale |
| Measuring range | 0.00 to 100.00 kg |
| Resolution | 0.01 kg |
| Accuracy at -5 °C to +25 °C | ±10 g + 0.03% of reading from 0 to 30 kg |
| Accuracy at -5 °C to +25 °C | ±10 g + 0.05% of reading from 30 to 100 kg |
| Accuracy outside operating range | ±20 g from 0 to 10 kg and ±10 g + 0.15% reading from 10 to 100 kg |
| Ambient humidity | 0 to 80 %RH |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -10 °C to +50 °C |
| Bluetooth version | Bluetooth 4.2 |
| Bluetooth range | More than 30 m in open field |
| Dimensions | 310 mm x 287 mm x 58 mm |
| Weight | 4.36 kg |
| Protection class | IP44 |
| Battery type | 4 x AA alkaline batteries |
| Battery life | More than 70 hours at +25 °C |
Document Downloads
What’s Included

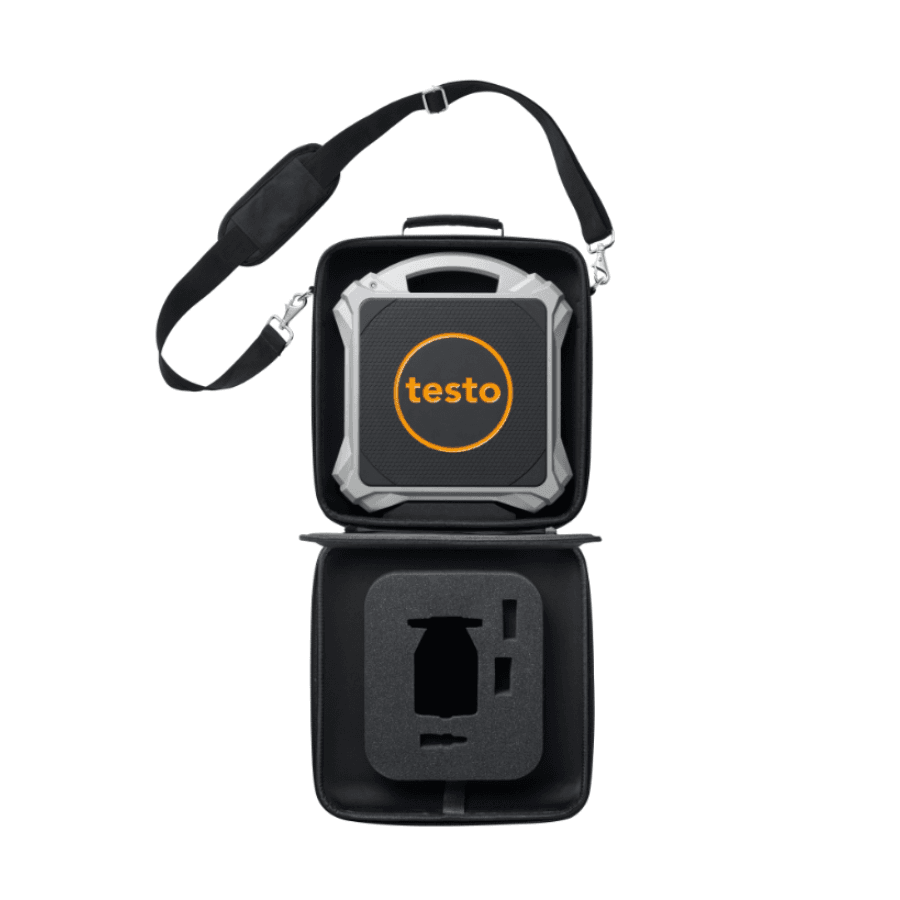

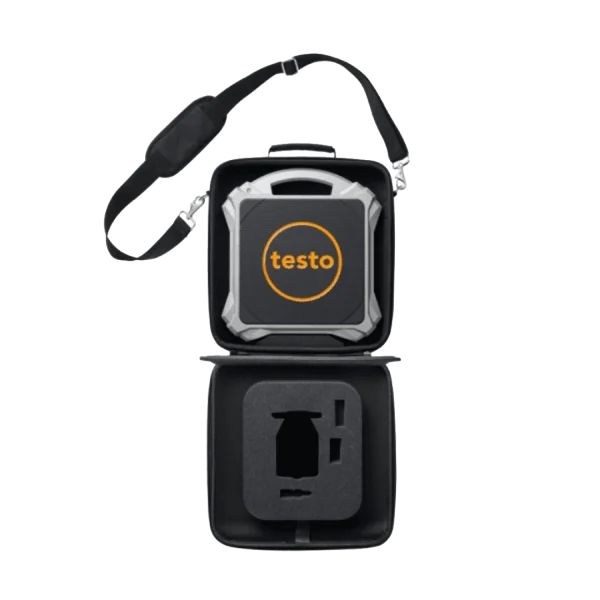

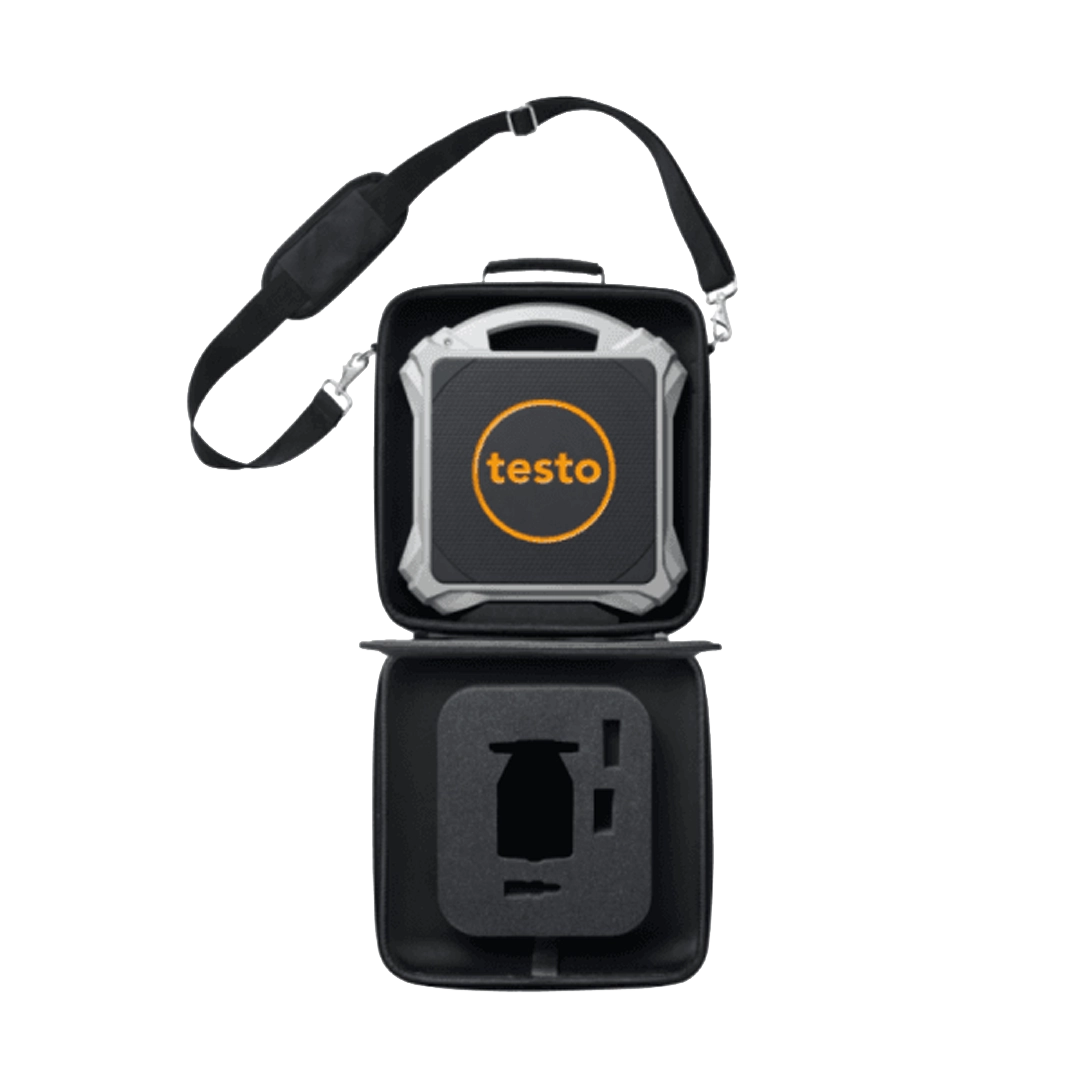

- Testo 560i Digital Refrigerant Scale
- Shoulder carry bag
- Batteries
