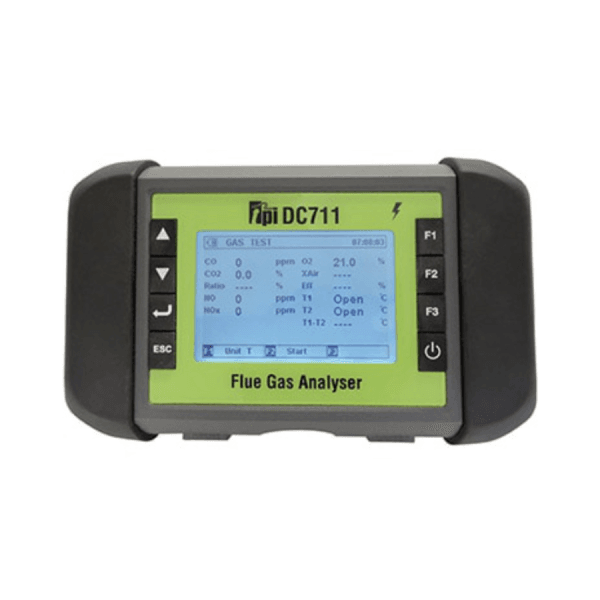

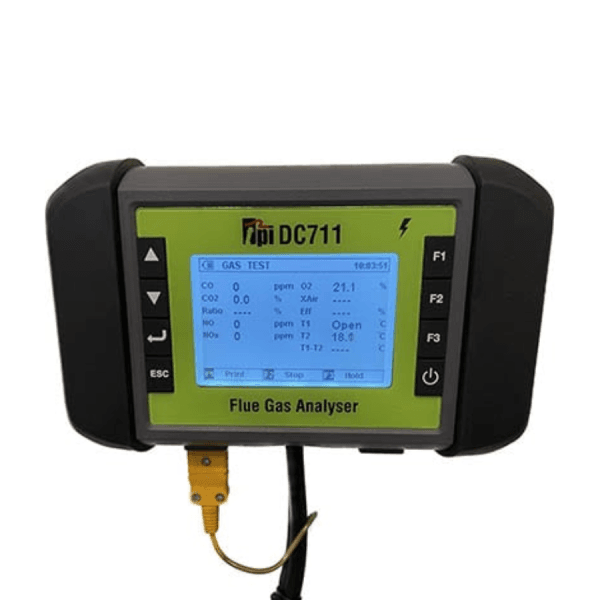

TPI DC711 Flue Gas Analyser
The TPI DC711 Flue Gas Analyser delivers fast and reliable combustion testing for both home and commercial systems. It combines gas sensing, pressure testing, and temperature measurement in one unit. This helps engineers complete checks with fewer tools and less time on site.

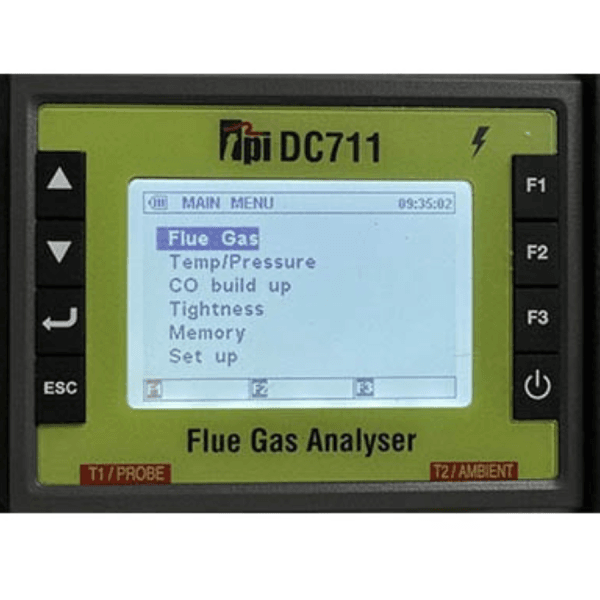

Built for daily use, the TPI DC711 Flue Gas Analyser features a clear backlit screen and simple menu system. As a result, users can move through settings quickly and view readings with ease. It also allows data to be saved, stored, and reviewed later when needed.
Performance and usability
In addition, the analyser supports multiple fuel types, making it suitable for varied heating systems. The unit measures oxygen and carbon monoxide with high precision. This ensures accurate combustion analysis and improved system efficiency checks.
Furthermore, pressure and tightness testing functions help verify system safety. The TPI DC711 Flue Gas Analyser also measures differential temperature, which supports flow and return balancing tasks. These features make it a practical choice for service engineers.
Flexible data handling
Data handling is simple and efficient with onboard storage for multiple readings. Users can hold, save, and print results when required. This allows easy reporting and helps maintain clear service records.
Optional sensor upgrades extend the capability of the TPI DC711 Flue Gas Analyser. Users can add NOx and high range CO sensors for more demanding applications. This flexibility ensures the device can adapt to future testing needs.
Key Features
- Clear digital display with backlight for visibility
- Measures oxygen and carbon monoxide levels
- Supports multiple fuel types for wider use
- Pressure testing for system tightness checks
- Differential temperature measurement capability
- Stores multiple sets of readings for review
- Hold function for stable reading capture
- Compatible with app connectivity upgrade option
- Durable design for regular field use
- Simple navigation menu for quick operation
- Optional NOx sensor upgrade available
- High range CO sensor option for advanced use
Technical Specifications
| Manufacturer | Test Products International |
| Manufacturer part code | TPIDC711 |
| Operating temperature | -10°C to +50°C |
| Battery type | Li-ion 3.7V |
| Battery life | Greater than 6 hours |
| Charging | USB-C input |
| Display | Backlit graphic LCD |
| Data storage | Up to 100 reading sets |
| Time function | 24 hour real time clock |
| Dimensions | 185mm x 125mm x 65mm |
| Weight | 830g |
| Standards | EN50379 Parts 1 to 3 |
| Oxygen range | 0 to 25 percent |
| Oxygen resolution | 0.1 percent |
| Oxygen accuracy | Plus or minus 0.3 percent |
| CO range low | 0 to 10000 ppm |
| CO resolution | 1 ppm |
| CO high range | Up to 100000 ppm optional |
| NOx range | 0 to 5000 ppm optional |
| CO2 calculation | 0 to 25 percent calculated |
| Combustion efficiency | 0 to 100 percent calculated |
| Pressure range | -150 to 150 mbar |
| Pressure resolution | 0.001 mbar to 0.01 mbar |
| Pressure accuracy | Plus or minus 0.5 mbar |
| Temperature probe type | K-type thermocouple |
| Temperature range | -50°C to 1000°C |
| Temperature resolution | 1°C |
| Temperature accuracy | Plus or minus 0.3 percent reading |
| Warranty | Not specified |
Document Downloads
What’s Included
- TPI DC711 Flue Gas Analyser
- Probe and charger
- Padded carry case
