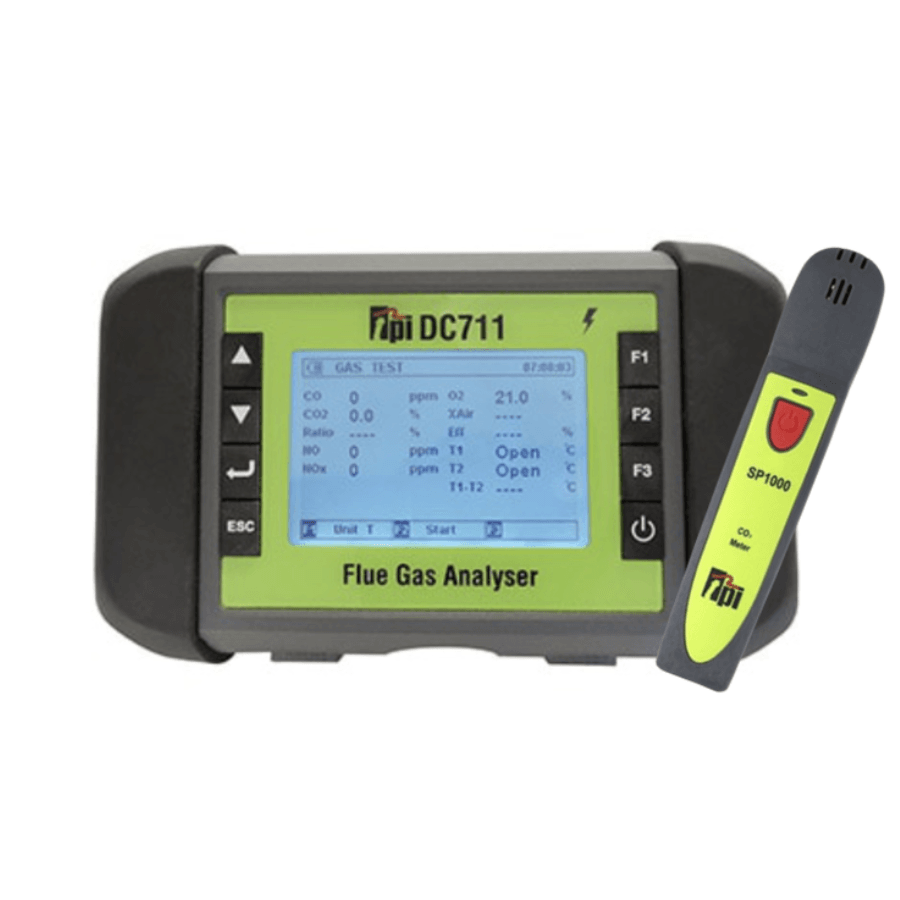

TPI DC711 View Flue Gas Analyser IAQ Kit
The TPI DC711 View Flue Gas Analyser IAQ Kit delivers fast and reliable combustion and air checks in one tool. It helps engineers test systems while also monitoring indoor air quality with ease.
With a clear display and simple controls, the TPI DC711 View Flue Gas Analyser IAQ Kit supports quick setup and smooth operation. It records readings, stores data, and supports reporting to improve workflow.
In addition, the analyser works across many fuel types, which makes it flexible for site work. It also supports pressure and temperature checks to give a full system view.
Smart Measurement Performance
The TPI DC711 View Flue Gas Analyser IAQ Kit includes advanced sensors for oxygen and carbon monoxide. It calculates combustion values and improves safety checks in both homes and commercial sites.
Meanwhile, the included CO2 meter connects by Bluetooth for live readings. It helps monitor indoor air in offices, kitchens, and shared spaces with clear results.
Designed for Daily Use
Lightweight and compact, the TPI DC711 View Flue Gas Analyser IAQ Kit is easy to carry and use all day. The kit includes probes, charger, and case for full support on site.
Furthermore, stored data can be exported for reports, which saves time after each job. This makes the kit a strong choice for service, safety, and maintenance tasks.
Key Features
- Clear digital display for easy reading
- Bluetooth link to mobile app support
- Stores and exports measurement data
- Measures pressure and temperature flow
- Works with many common fuel types
- Optional sensors for NOx and high CO
- Lightweight CO2 meter under 100 grams
- Magnetic back for hands free use
- Fast setup with simple menu system
- Suitable for domestic and trade use
Technical Specifications
| Manufacturer | Test Products International |
| Product type | Flue gas analyser and IAQ kit |
| Operating temperature | -10°C to +50°C |
| Power supply analyser | Li-ion 3.7V battery |
| Battery life analyser | Greater than 6 hours typical use |
| Charging method | USB type C connection |
| Supported fuels | Natural gas, LPG, oil, coal, wood, coke, butane |
| Display type | Backlit graphic LCD |
| Data storage | Up to 100 reading sets with time stamp |
| Clock function | 24 hour real time clock |
| Dimensions | 185 mm x 125 mm x 65 mm |
| Weight | 830 g analyser unit |
| Compliance | EN50379 parts 1 to 3 |
| Oxygen range | 0 to 25 percent with fine resolution |
| Carbon monoxide range | 0 to 10,000 ppm standard option |
| Carbon dioxide calculation | 0 to 25 percent derived value |
| Pressure measurement range | -150 mbar to +150 mbar selectable units |
| Pressure resolution | Down to 0.001 mbar in low range |
| Pressure accuracy | Plus or minus 0.5 mbar full scale |
| Temperature input | K type thermocouple input |
| Temperature range | -50°C to 1000°C |
| Temperature accuracy | Within 0.3 percent reading typical |
| CO2 meter range | 0 to 6000 ppm ambient measurement |
| CO2 resolution | 1 ppm resolution |
| CO2 accuracy | Up to plus or minus 7 percent reading |
| CO2 battery type | AAA x 3 cells |
| CO2 battery life | Up to 30 hours typical use |
| CO2 weight | Approximately 99.5 g |
| Warranty | Not specified |
Document Downloads
What’s Included
- TPI DC711 flue gas analyser unit
- TPI SP1000 smart ambient CO2 meter
- Probes and charging equipment
- Padded carry case
