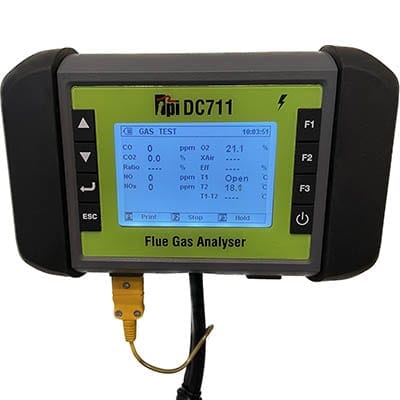

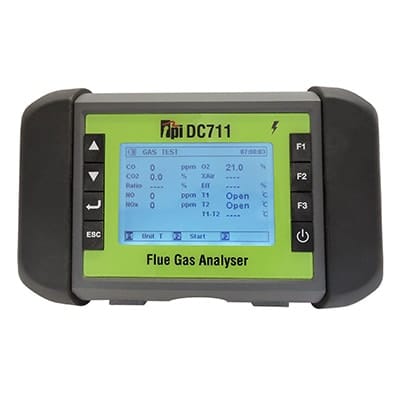

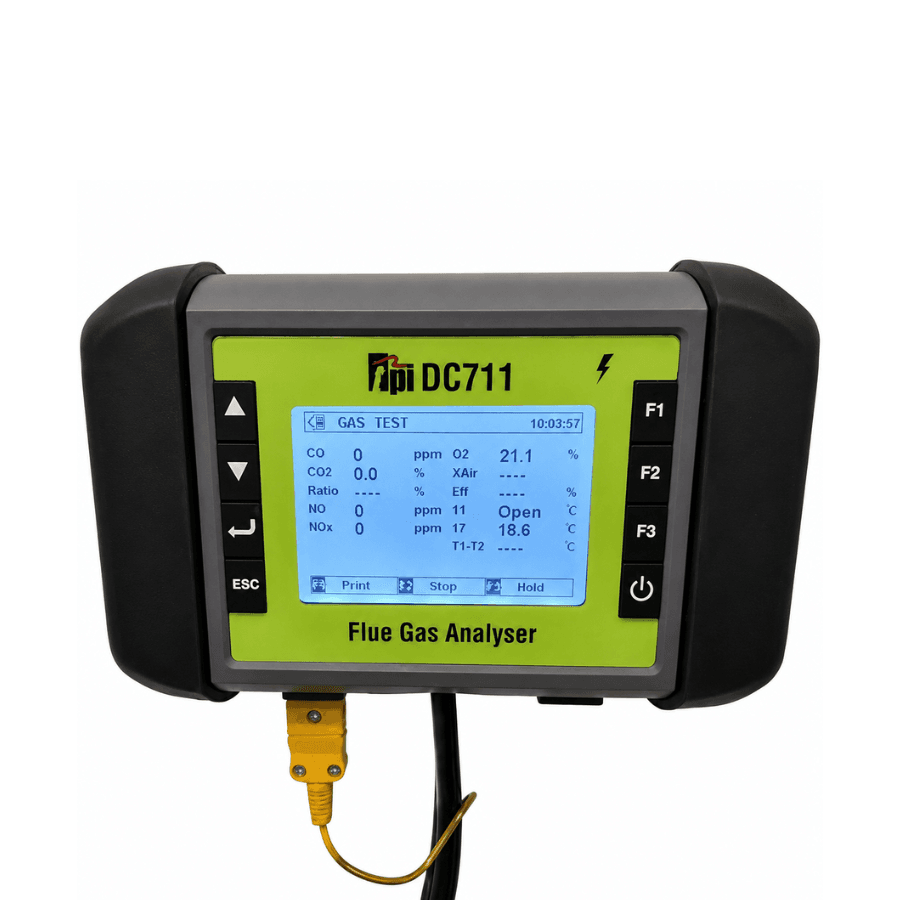

TPI DC711 Flue Gas Analyser Kit 1
The TPI DC711 Flue Gas Analyser Kit 1 delivers reliable flue gas testing for both domestic and commercial systems. It provides clear readings and smooth navigation through a simple menu. As a result, engineers can complete checks quickly and with confidence.
With a large backlit display, the unit stays easy to read in low light. It measures oxygen and carbon monoxide levels while also calculating combustion efficiency. This helps users make informed adjustments and improve system performance.
The TPI DC711 Flue Gas Analyser Kit 1 also supports pressure testing and differential temperature measurement. These functions are ideal for tightness checks and system balancing. Therefore, it suits a wide range of heating and HVAC tasks.
Efficient data handling
Built-in memory allows storage of up to 100 readings for later review. Users can hold values on screen and print results when needed. This ensures accurate records without extra effort during field work.
Flexible upgrade options
Optional sensors expand the capability of the analyser. A high range CO sensor and NOx sensor can be added when required. This allows the TPI DC711 Flue Gas Analyser Kit 1 to adapt to more advanced testing needs.
Durability and portability remain key features of the kit. It includes a padded carry case and wireless printer for easy transport and reporting. Overall, the TPI DC711 Flue Gas Analyser Kit 1 supports efficient and consistent analysis in demanding environments.
Key Features
- Clear digital display with backlight for visibility
- Measures oxygen and carbon monoxide levels
- Supports multiple fuel types for wider use
- Pressure testing for system tightness checks
- Differential temperature measurement capability
- Stores multiple reading sets for later review
- Hold function for stable reading capture
- Compatible with optional app upgrade feature
- Durable design for regular field operation
- Simple menu navigation for quick operation
- Optional NOx sensor upgrade available
- Wireless printing capability for test results
Technical Specifications
| Manufacturer | Test Products International |
| Manufacturer part code | TPIDC711 |
| Operating temperature | -10°C to +50°C |
| Battery type | Li-ion 3.7V rechargeable |
| Battery life | Greater than 6 hours typical use |
| Charging | USB-C input |
| Display | Backlit graphic LCD |
| Data storage | Up to 100 reading sets |
| Time function | 24 hour real time clock |
| Dimensions | 185mm x 125mm x 65mm |
| Weight | 830g |
| Standards | EN50379 Parts 1 to 3 compliant |
| Oxygen range | 0 to 25 percent |
| Oxygen resolution | 0.1 percent |
| Oxygen accuracy | Plus or minus 0.3 percent |
| CO range low | 0 to 10000 ppm |
| CO resolution | 1 ppm |
| CO high range | Up to 100000 ppm optional |
| NOx range | 0 to 5000 ppm optional |
| CO2 calculation | 0 to 25 percent calculated |
| Combustion efficiency | 0 to 100 percent calculated |
| Pressure range | -150 to 150 mbar |
| Pressure resolution | 0.001 mbar to 0.01 mbar |
| Pressure accuracy | Plus or minus 0.5 mbar |
| Temperature probe type | K-type thermocouple |
| Temperature range | -50°C to 1000°C |
| Temperature resolution | 1°C |
| Temperature accuracy | Plus or minus 0.3 percent reading |
| Warranty | Not specified |
Document Downloads

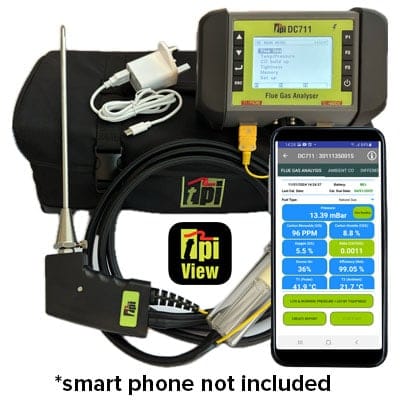

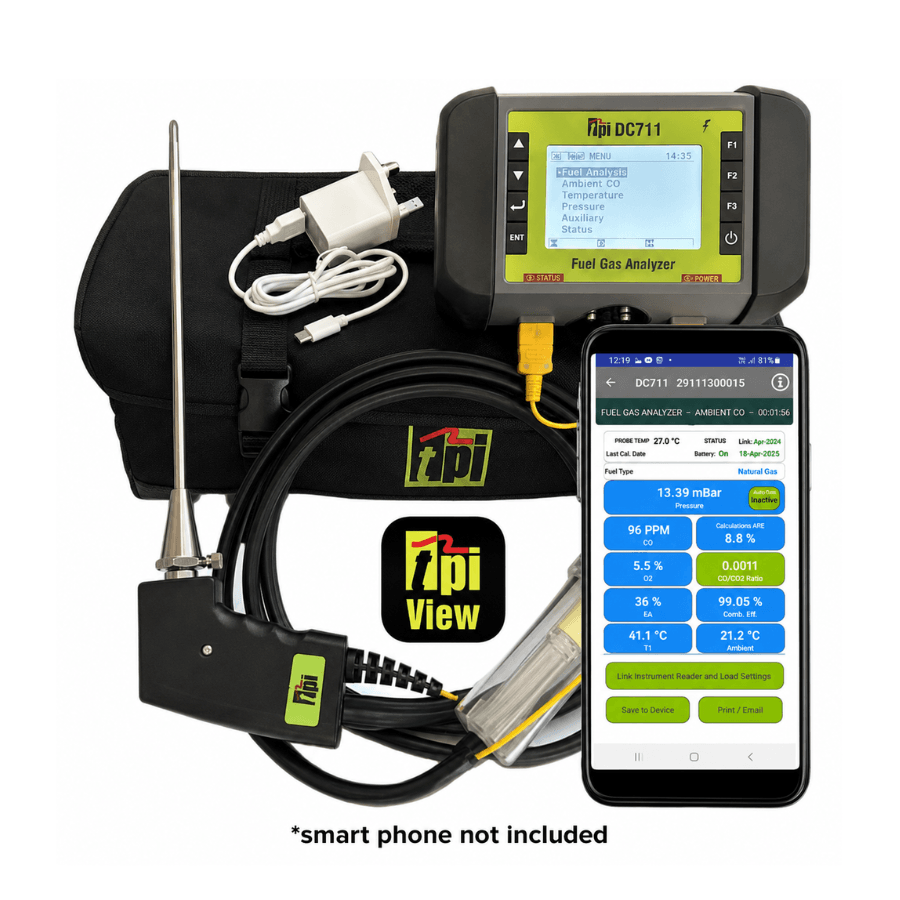

What’s Included
- TPI DC711 Flue Gas Analyser
- Probe and charger
- Padded carry case
- A741BT wireless printeR
