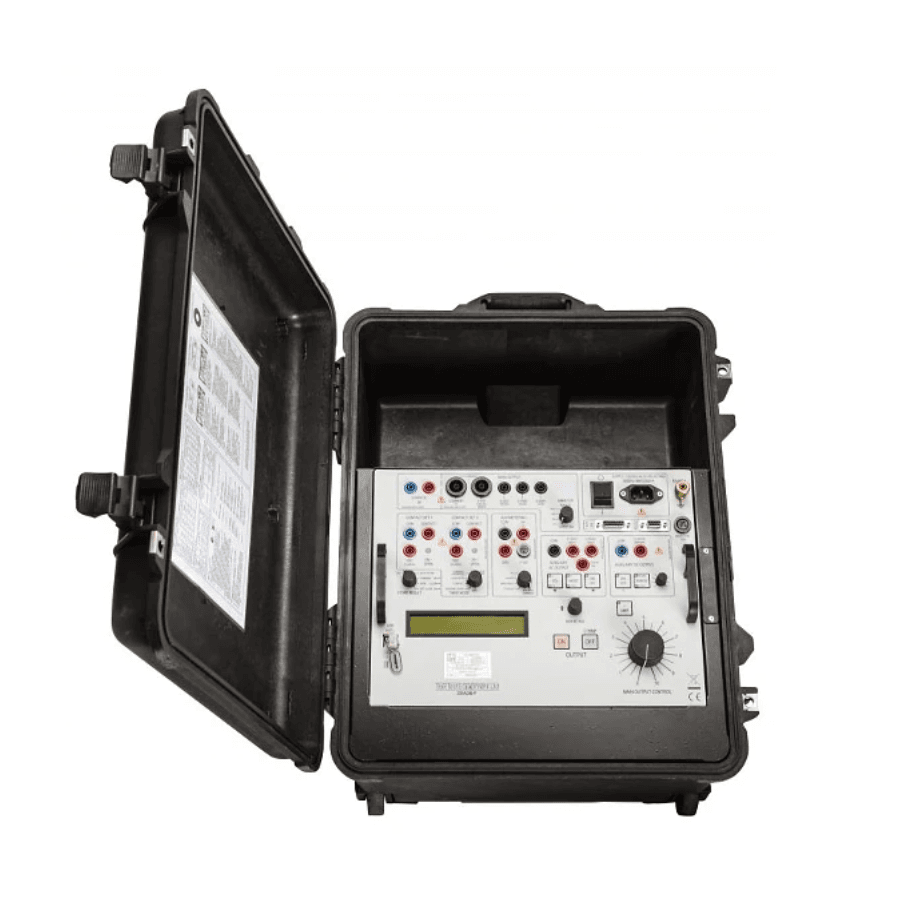

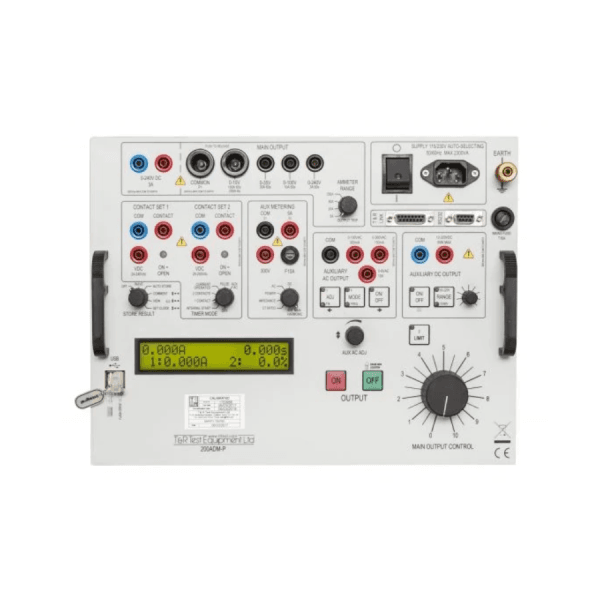

T&R 200 ADM-P Secondary Current Injection System
The T&R 200 ADM-P Secondary Current Injection System provides a flexible solution for testing protection devices and current relay systems. It delivers high output currents while maintaining stable and accurate measurement performance. As a result, engineers can test protection equipment, relays and control systems with confidence.
In addition, the system offers precise True RMS metering with fast capture capability. This allows accurate measurement of current, voltage and timing behaviour during relay operation. The T&R 200 ADM-P therefore supports reliable commissioning, maintenance and diagnostic testing within power system environments.
Advanced Injection and Measurement
Built for demanding electrical testing tasks, the unit supplies injection currents from 1 mA up to 200 A AC. At the same time, the auxiliary AC output can deliver voltage up to 260 V or current up to 10 A depending on the test requirement. Because phase and frequency can be adjusted, technicians can simulate realistic operating conditions for voltage and current relays.
The integrated auxiliary metering input measures voltage, current, phase, frequency and harmonic content. Furthermore, when combined with the main current output, the system can also calculate impedance, power and CT ratio values. These functions allow a detailed view of device behaviour during testing.
Data Capture and Relay Testing
For documentation and analysis, the T&R 200 ADM-P records test results directly to a USB memory device. Data can be stored in spreadsheet format together with waveform and harmonic information. This simplifies reporting while allowing engineers to analyse relay curves and transformer magnetisation results after testing.
A flexible timing system also supports accurate measurement of trip, reset and reclose times. Because the timer can operate in current mode, it measures instantaneous trips with high accuracy. In practice, this ensures dependable verification of protection relay performance.
Key Features
- Programmable current injection output from 0 A to 200 A AC
- True RMS measurement system with one cycle capture capability
- Auxiliary AC output capable of supplying voltage up to 260 V
- Auxiliary AC current output up to 10 A for relay testing
- Adjustable phase shift through a full 360 degree range
- Digitally generated pure sine wave auxiliary output
- Integrated multi function auto ranging timing system
- USB interface supports memory storage, keyboard and printer connection
- Internal waveform capture and harmonic analysis storage
- Current limit control enables precise output adjustment
- Automatic mains voltage selection for flexible installation
Technical Specifications
| Product name | T&R 200 ADM-P Secondary Current Injection System |
| Manufacturer | T&R Test Equipment |
| Manufacturer part code | 200ADM-P |
| Primary function | Secondary current injection testing for protection relays |
| Main current output range | 1 mA to 200 A AC |
| Auxiliary AC voltage output | Up to 260 V AC |
| Auxiliary AC current output | Up to 10 A AC |
| Auxiliary DC output range | 12 V to 220 V DC stabilised supply |
| Auxiliary metering input voltage | Up to 300 V RMS |
| Auxiliary metering input current | 5 A or 10 A depending on waveform measurement conditions |
| Measured parameters | Voltage, current, frequency, phase angle, power, impedance and CT ratio |
| Harmonic measurement | Up to 31st harmonic including THD analysis |
| Measurement capture | True RMS measurement with single cycle capture |
| Timing system | Auto ranging timer for trip, reset and reclose time measurement |
| Data storage | USB memory storage with spreadsheet export and waveform files |
| USB interfaces | Supports memory key, keyboard and printer connection |
| Phase shift adjustment | 0 to 360 degree adjustable phase control |
| Output waveform | Digitally generated pure sine wave output |
| Application environment | Designed for testing equipment on isolated or de-energised systems |
Comparison Table
| Feature | Main Injection Output | Auxiliary AC Output | Auxiliary Metering Input |
| Output or input type | Current injection output | Voltage or current supply | Measurement input |
| Operating range | 1 mA to 200 A AC | Up to 260 V or 10 A | Up to 300 V or 5 A to 10 A |
| Measurement capability | True RMS current injection monitoring | Voltage and current relay simulation | Voltage, current, phase and harmonic analysis |
| Typical use | Testing current relays and protection circuits | Simulating voltage relay test conditions | Monitoring test signals and waveform analysis |
Document Downloads

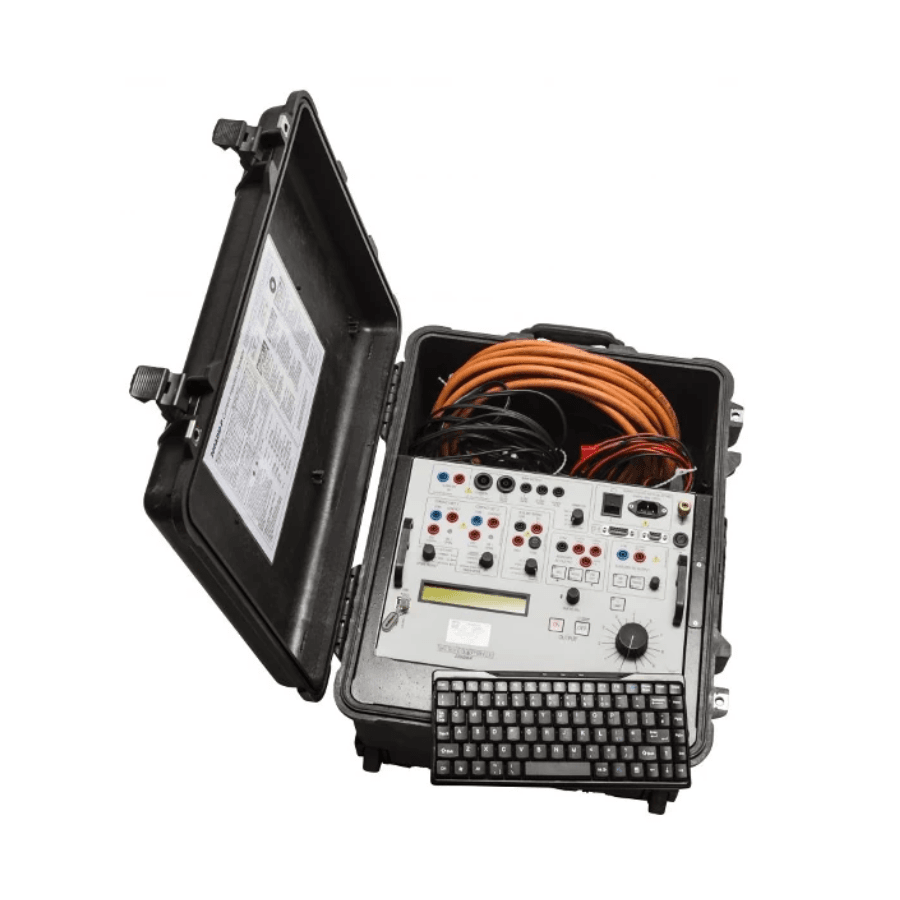

What’s Included
- Operating manual
- Output lead set
- Mains lead
- Spare fuses
- USB keyboard
- USB memory key
