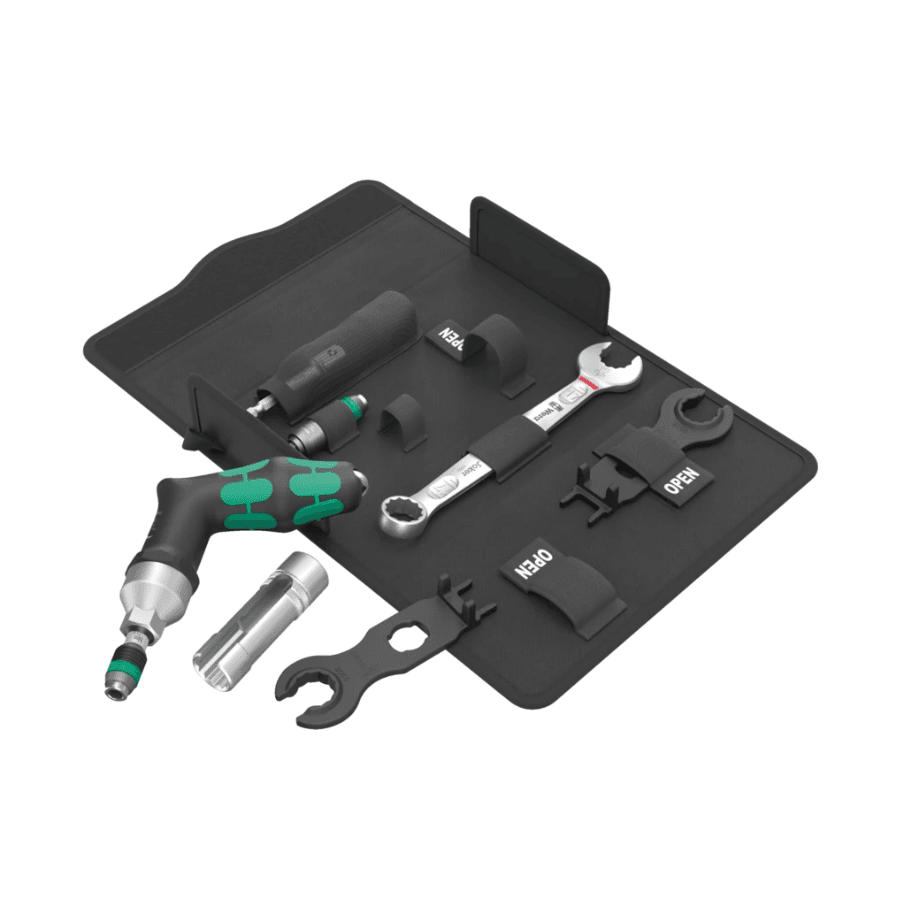

Wera 9524 Photovoltaic Mounting Tool Set 1
Wera 9524 Photovoltaic Mounting Tool Set 1 provides a complete solution for installing photovoltaic systems with control and speed. It brings together torque accuracy, connector tools and specialist spanners in one practical kit. As a result, installers can work efficiently on solar panel connections and mounting points.
Designed for MC4 solar connectors, the set includes dedicated installation tools as well as a 17 mm socket with side wire cutout for panel connectors. In addition, the Joker 6003 ring spanner allows access in confined spaces where standard spanners struggle. This makes the Wera 9524 Photovoltaic Mounting Tool Set 1 suitable for roof installations and tight mounting frames.
Precise Torque Control
An adjustable 7442 torque screwdriver with pistol handle covers a range of 3.0 to 6.0 Nm. Users can set torque values by hand and read the scale with ease. Once the set torque is reached, the slip over mechanism activates to protect fixings from over tightening.
Rapidaptor technology supports fast bit changes and smooth operation. Therefore, the tool can be removed quickly during clockwise torque use without interrupting workflow. This improves productivity while maintaining reliable torque control.
Built for Confined Spaces
The Joker 6003 ring spanner features a special open end with a 7.5° offset and double hex geometry. Because of this design, it increases placement options and allows return angles of less than 30°. Bolts and screw heads can be engaged every 15°, even in restricted areas.
Wera 9524 Photovoltaic Mounting Tool Set 1 also includes an adaptor shaft from 1/4 inch hexagon to 1/2 inch square drive. This allows manual use of 1/2 inch socket inserts when required. Together, these tools form a cohesive kit for solar mounting and connector installation tasks.
Key Features
- Adjustable torque screwdriver with 3.0 to 6.0 Nm range
- Pistol handle design for ergonomic use
- Slip over release mechanism for torque accuracy
- Rapidaptor quick release bitholder
- Two installation tools for MC4 solar connectors
- Joker 6003 ring spanner for narrow spaces
- 7.5° offset open end for improved access
- Double hex geometry for secure fit
- 17 mm 1/2 inch socket with side wire cutout
- 1/4 inch hex to 1/2 inch square adaptor shaft
- Suitable for photovoltaic system installation
- Fast bit changes without additional tools
