The Ultimate Solar Clamp Meter
for Modern PV Installations
Tuesday 16th June 2026

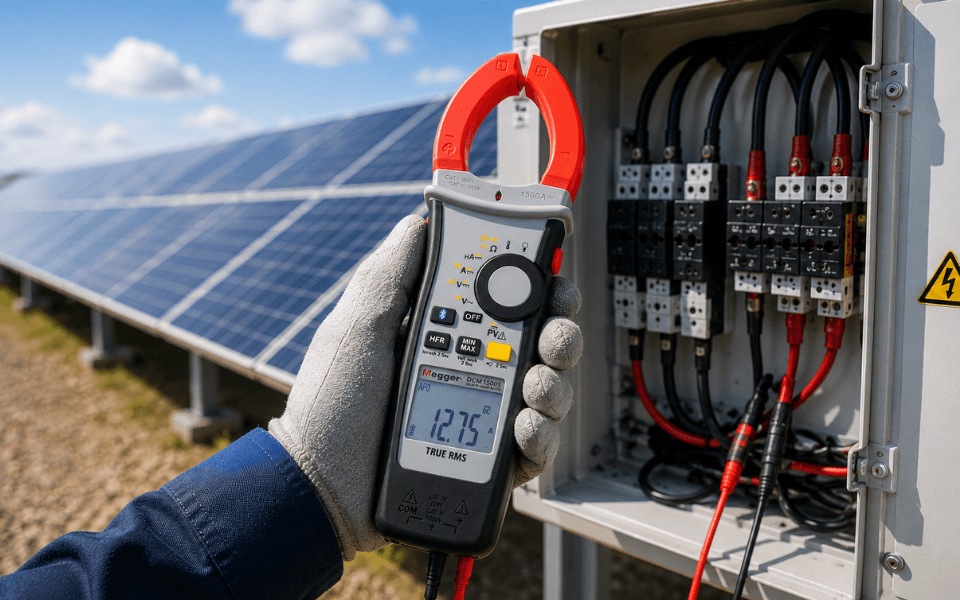

The Megger DCM1500S Solar Clamp Meter has been specifically designed to bridge that gap. Combining high-voltage measurement capabilities, solar-specific testing features, wireless connectivity, and comprehensive diagnostic functions, the DCM1500S is a powerful tool for professionals responsible for installing, commissioning, maintaining, and troubleshooting photovoltaic systems.
Solar PV systems present challenges that standard electrical testing equipment may struggle to address. Modern arrays frequently operate at voltages exceeding 1,000 V DC, while string currents and inverter outputs require accurate current measurements without interrupting system operation.
Technicians often need to:
A dedicated solar clamp meter streamlines these tasks by bringing multiple measurement functions into a single instrument.

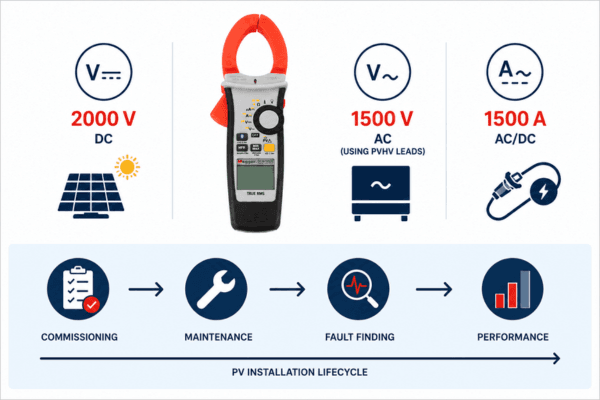

The Megger DCM1500S has been engineered with solar applications at its core. Unlike general-purpose clamp meters, it supports measurements up to:
These capabilities make it suitable for today’s high-voltage photovoltaic installations, including utility-scale solar farms, commercial rooftop systems, and large industrial renewable energy projects. The meter is equally useful throughout the entire lifecycle of a PV installation—from initial commissioning through to ongoing maintenance and fault finding.
Solar installers and maintenance engineers are frequently called upon to diagnose issues that can impact system performance and energy yield. Common faults include underperforming strings, inverter trips, DC isolation issues, loose MC4 connectors, shading-related current imbalances, failed optimisers, and intermittent faults that can be difficult to replicate during a standard inspection.
For example, if one string is producing noticeably less current than neighbouring strings under similar irradiance conditions, the issue may be caused by module damage, excessive shading, a poor connection, a failed optimiser, or a partial string failure.
Using the DCM1500S, installers can quickly identify these abnormalities without disconnecting circuits or disrupting system operation.
Combined with Min/Max recording, Smart Hold functionality and integrated data logging, the meter provides a practical solution for diagnosing faults efficiently and reducing system downtime.

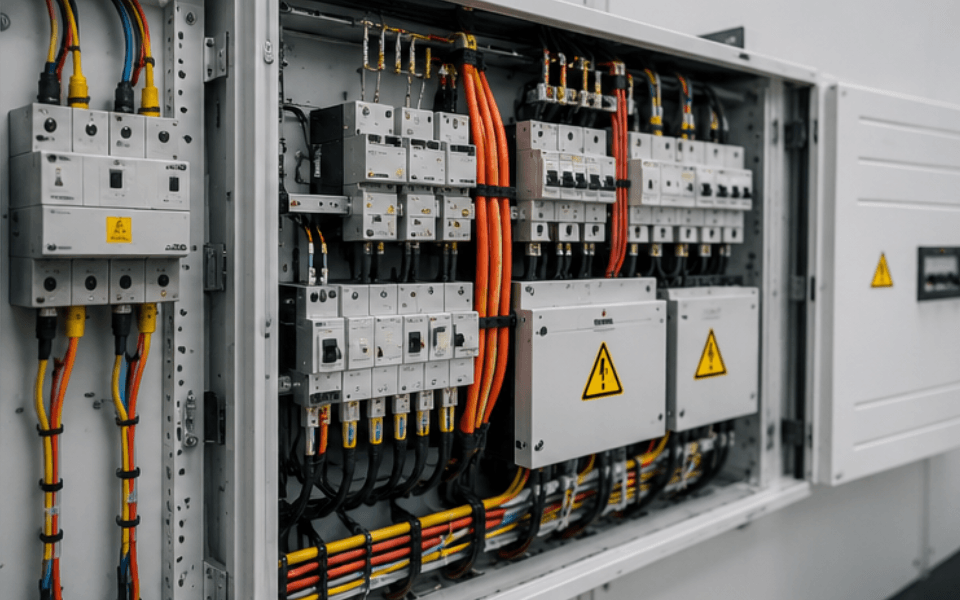

One of the standout features of the DCM1500S is its ability to safely measure voltages commonly found in modern solar systems.
With a DC voltage range extending to 2000 V, technicians can confidently work on high-voltage string configurations without requiring multiple instruments.
For AC measurements, the meter supports up to 1500 V AC when used with the appropriate PVHV leads, making it suitable for inverter outputs and associated electrical infrastructure.
This flexibility allows engineers to move seamlessly between the DC and AC sides of a solar installation using a single meter.
Current measurement is essential for diagnosing performance issues and verifying system operation.
The DCM1500S offers:
The clamp design enables non-contact current measurement, allowing technicians to test live circuits safely without disconnecting conductors or interrupting system operation.
This is particularly valuable when analysing inverter outputs, monitoring string performance, or investigating unexpected current fluctuations.

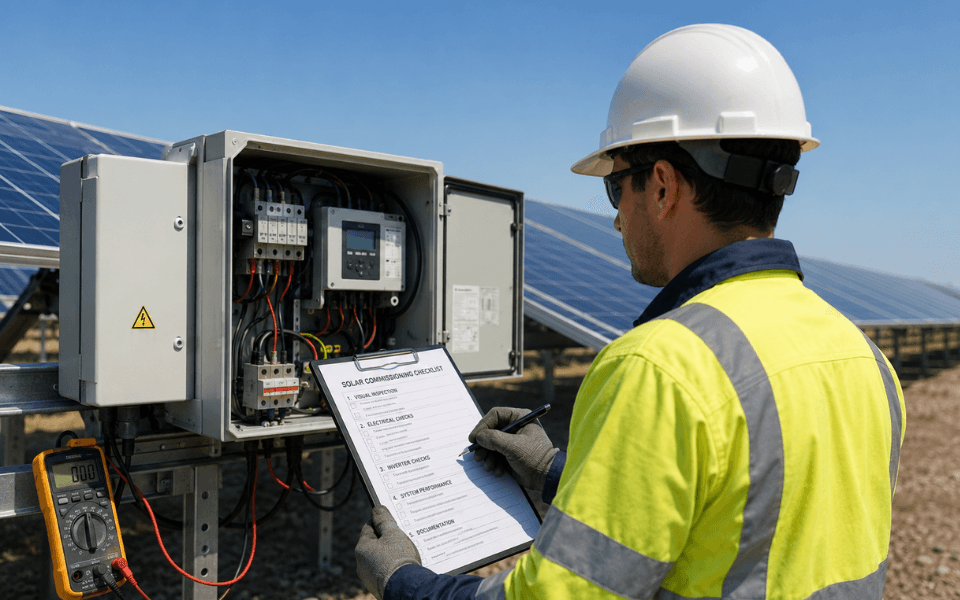

Commissioning is one of the most critical stages of any solar installation, requiring technicians to verify that the system has been installed correctly and is operating within expected parameters before handover.
Typical commissioning checks include:
Rather than carrying multiple instruments to complete these tasks, the Megger DCM1500S combines a wide range of measurement capabilities into a single device. Voltage, current, resistance, continuity, frequency and temperature measurements can all be performed using one instrument, helping to streamline commissioning procedures and reduce time spent moving between test tools.
The meter’s large backlit display, auto-ranging functionality and Bluetooth connectivity further improve efficiency, allowing technicians to focus on completing inspections and producing accurate commissioning records.
While voltage and current measurement are critical, effective solar troubleshooting often requires a broader range of diagnostic functions. The Megger DCM1500S combines several additional testing capabilities to support commissioning, maintenance and fault-finding activities.
| Function | Application |
|---|---|
| Resistance Measurement | Supports electrical integrity checks and general troubleshooting with ranges up to 600 kΩ. |
| Continuity Testing | Audible indication helps identify wiring faults, damaged connections and installation issues. |
| Diode Testing | Useful for evaluating semiconductor components and verifying circuit functionality. |
| Capacitance Measurement | Assists with diagnosing component degradation and wider electrical maintenance tasks. |
| Frequency Measurement | Measures frequencies up to 10 kHz, supporting inverter and electrical system diagnostics. |
| Temperature Measurement | Using the supplied thermocouple probe, temperatures from -40°C to 400°C can be monitored to identify overheating components and potential failure points. |
One of the biggest challenges in solar maintenance is capturing intermittent faults and tracking performance trends over time.
The DCM1500S addresses this with an integrated data logging function capable of storing up to 4,000 records.
Rather than relying solely on instantaneous measurements, technicians can monitor system behaviour over extended periods and review logged results later.
This is especially useful when investigating:
Modern test equipment increasingly benefits from digital connectivity, and the DCM1500S is no exception.
The meter features built-in Bluetooth communication and is compatible with the Megger Link application.
This allows users to:

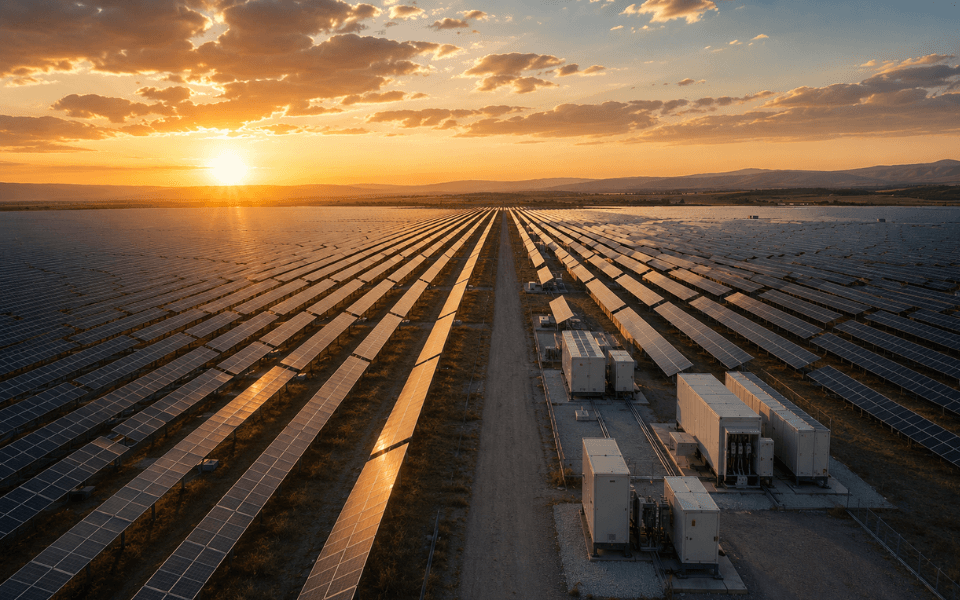

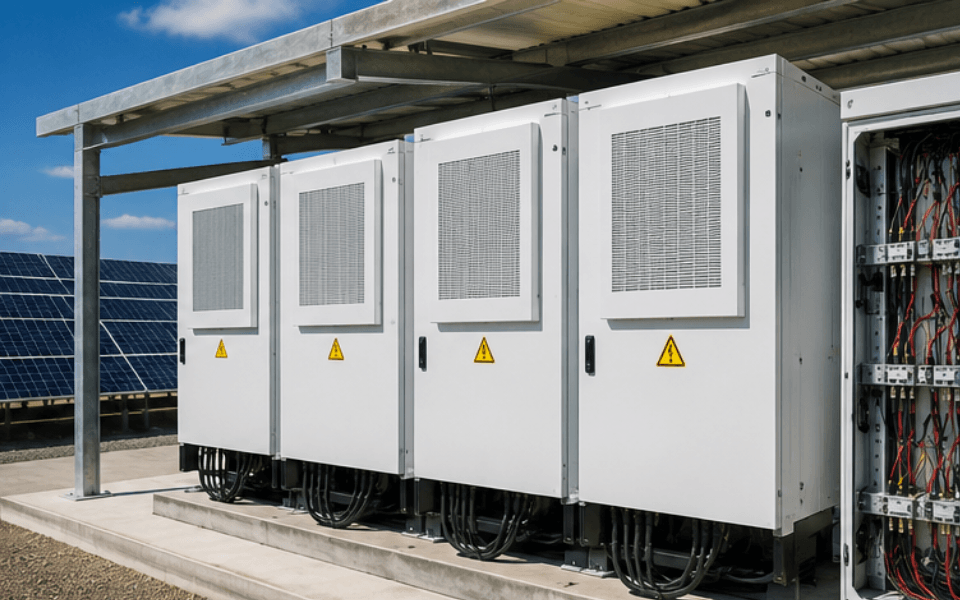

As commercial and utility-scale solar projects continue to evolve, system voltages are increasing to improve efficiency and reduce installation costs. Many modern photovoltaic installations now utilise 1500 V architectures, enabling longer string lengths and reduced balance-of-system costs.
While this development delivers significant benefits for project owners, it also places greater demands on test equipment. Many traditional clamp meters are limited to 1000 V DC measurements, making them less suitable for newer high-voltage installations.
The Megger DCM1500S has been designed with these developments in mind, offering measurement capability up to 2000 V DC and 1500 V AC when used with the appropriate PVHV leads. This enables installers and maintenance teams to work confidently on both current and future solar projects without needing to invest in additional specialist equipment.
For contractors looking to future-proof their toolkit, the DCM1500S provides a practical solution that aligns with the ongoing evolution of photovoltaic system design.
Solar installations often involve challenging working environments, from rooftop arrays to remote solar farms. The DCM1500S incorporates several practical features that improve usability in the field.

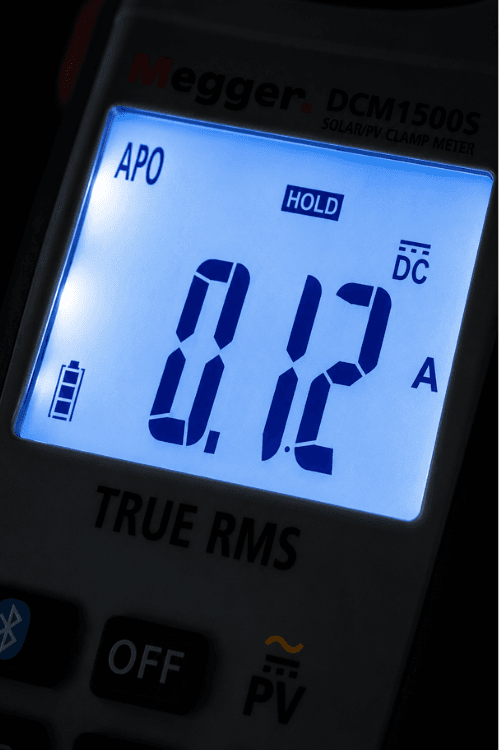

Large Backlit Display
The 6,000-count digital display offers clear visibility in varying lighting conditions.

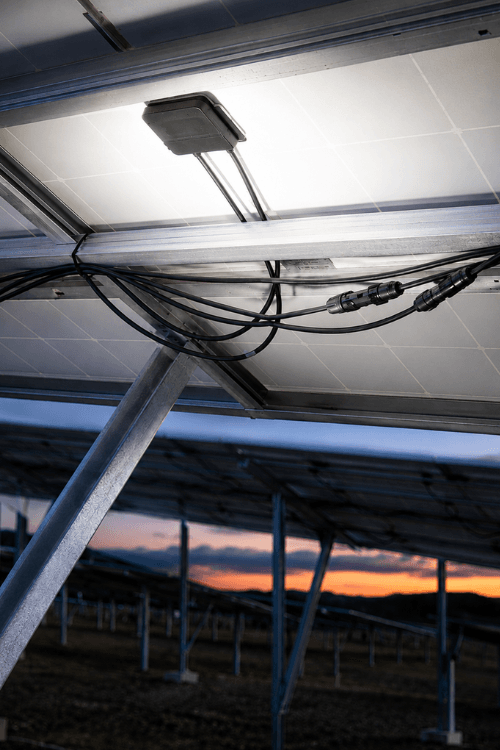

Built-In
Torch
Built-in torch illuminates conductors and equipment in low-light environments.

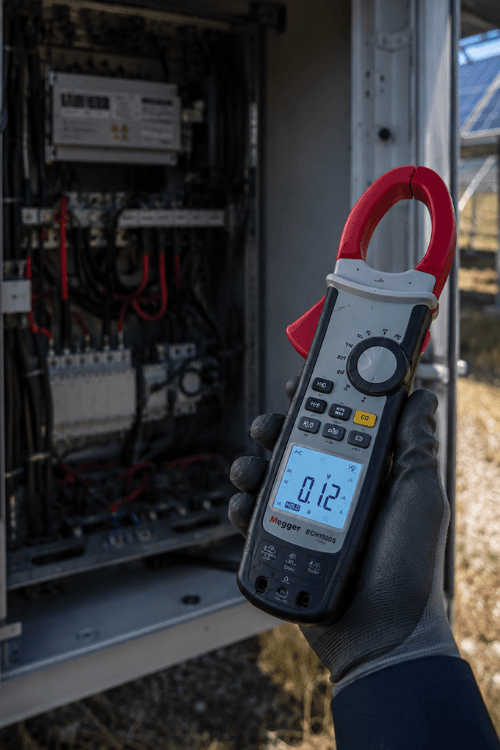

Smart Hold Function
Smart Hold provides an audible alert whenever a held reading changes significantly.
Min/Max Recording
Track system fluctuations over time with automatic Min/Max recording.

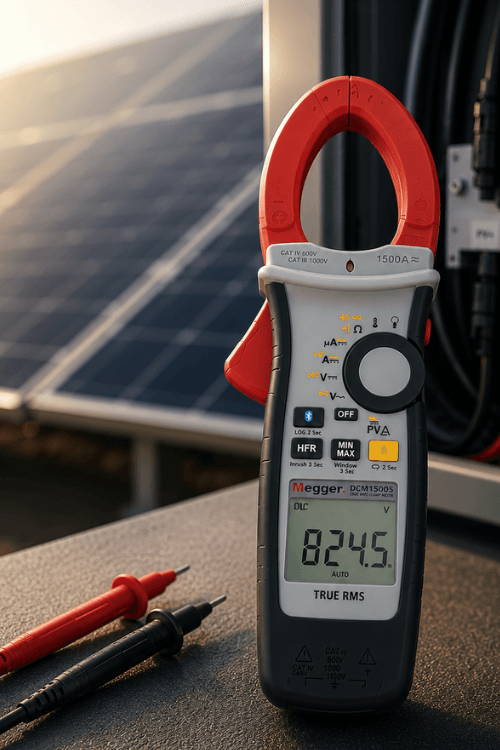

Auto-Ranging Operation
Auto-ranging simplifies measurements and reduces incorrect range selection.
