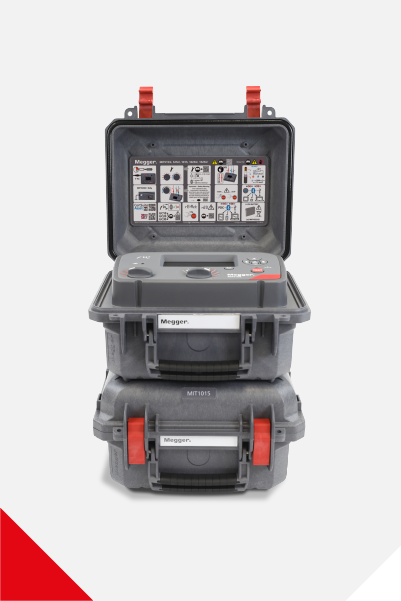

Introducing the new Megger S1 & MIT range
Megger’s Insulation Resistance Testers are trusted across industries from power utilities to railways for their speed, accuracy, and safety.
Now redesigned for simplicity, the range – formerly the S1 and MIT series – is grouped into Essential, Advanced, and Expert categories, each packed with enhancements for even better performance and reliability.
Megger’s Insulation Resistance Testers are trusted across industries from power utilities to railways for their speed, accuracy, and safety.
Now redesigned for simplicity, the range – formerly the S1 and MIT series – is grouped into Essential, Advanced, and Expert categories, each packed with enhancements for even better performance and reliability.
Out with the old. In with the new.
Out with the old. In with the new.
Essential
Performs all of the most commonly needed tasks.
Perfect for:
Power Utilities
- Commissioning and testing after repair – distribution
- Maintenance – distribution
Industrial Users
- HV motor testing
- Maintenance
Railway Applications
- Traction motor testing
- Third-rail power system testing
Advanced
For users with more demanding requirements.
Perfect for:
Same as essential, plus:
Power Utilities
- Commissioning and testing after repair – transmission
- Maintenance – transmission
Production / Manufacturing Applications
- Cable manufacturers
- Production testing
Expert
Offers the highest levels of performance and versatility.
Perfect for:
Power Utilities
- Commissioning and testing after repair – transmission
- Maintenance – transmission
Production / Manufacturing Applications
- Cable manufacturers
- Production testing
Essential
Performs all of the most commonly needed tasks.
Perfect for:
Power Utilities
- Commissioning and testing after repair – distribution
- Maintenance – distribution
Industrial Users
- HV motor testing
- Maintenance
Railway Applications
- Traction motor testing
- Third-rail power system testing
Advanced
For users with more demanding requirements.
Perfect for:
Same as essential, plus:
Power Utilities
- Commissioning and testing after repair – transmission
- Maintenance – transmission
Production / Manufacturing Applications
- Cable manufacturers
- Production testing
Expert
Offers the highest levels of performance and versatility.
Perfect for:
Power Utilities
- Commissioning and testing after repair – transmission
- Maintenance – transmission
Production / Manufacturing Applications
- Cable manufacturers
- Production testing

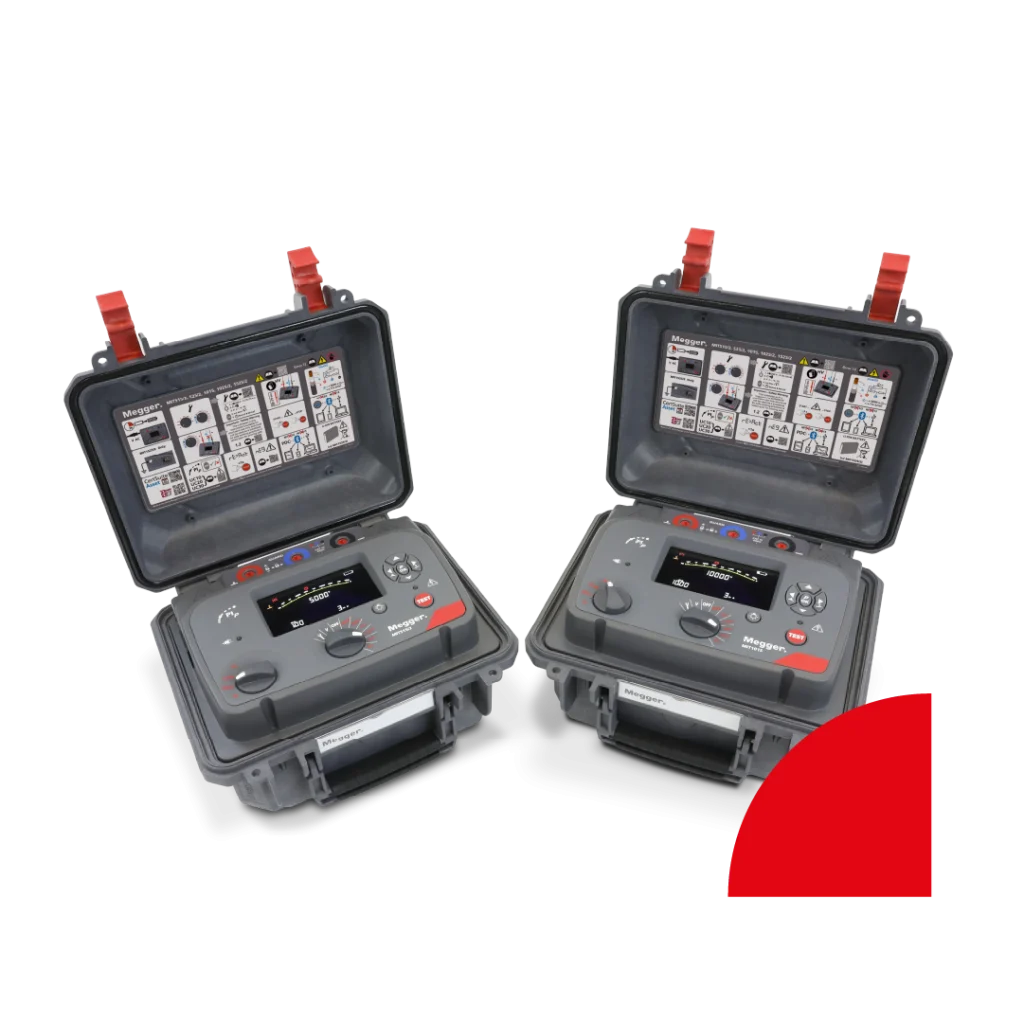

ESSENTIAL
The correct tools to get you started
◣ MIT515/2
The Megger MIT515 is a rugged, portable 5 kV insulation resistance tester with multiple test modes, preset voltages, mains operation, clear display, intelligent charging, and CAT IV 600 V safety for high-voltage equipment maintenance.
◣ MIT1015
The Megger MIT1015 is a high-performance 10 kV insulation tester built for serious professionals. With a massive 20 TΩ range, fast charge time, and intuitive controls, it handles the toughest testing jobs with ease. Its rugged build and long battery life make it perfect for demanding field work.

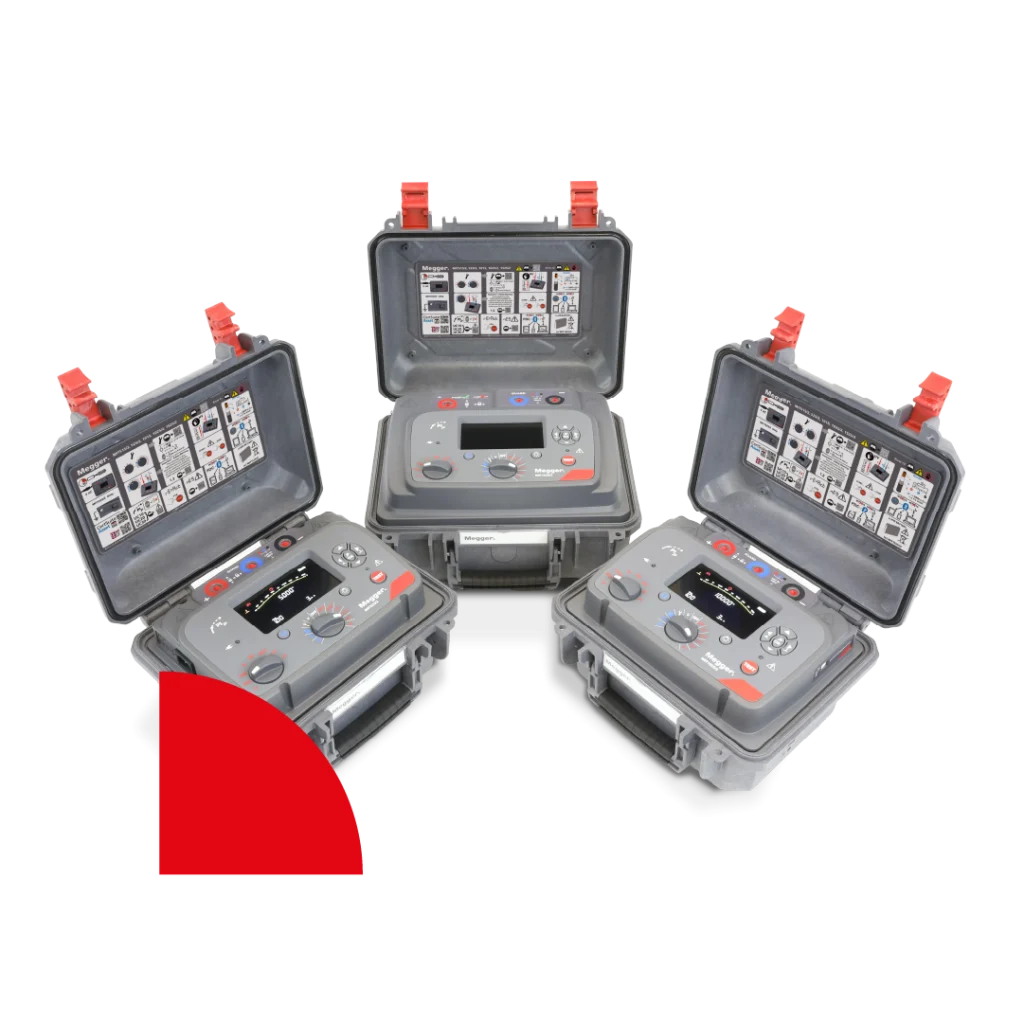

ADVANCED
Next-level performance
◣ MIT525/2
The Megger MIT525 is a rugged, portable 5 kV insulation tester with advanced diagnostics, multiple test modes, data logging, USB transfer, clear display, and CAT IV 600 V safety for high-voltage equipment maintenance.
◣ MIT1025/2
The Megger MIT1025 is a rugged, portable 10 kV insulation tester with advanced diagnostics, multiple test modes, data logging, USB transfer, clear display, and CAT IV 600 V safety for high-voltage equipment maintenance.
◣ MIT1525/2
The Megger MIT1525/2 is a top-tier 15 kV insulation tester with an impressive 30 TΩ range and advanced features like PI, DAR, and DD testing. Designed for critical high-voltage applications, it delivers fast, accurate results with simple controls, long battery life, and a rugged, field-ready build.

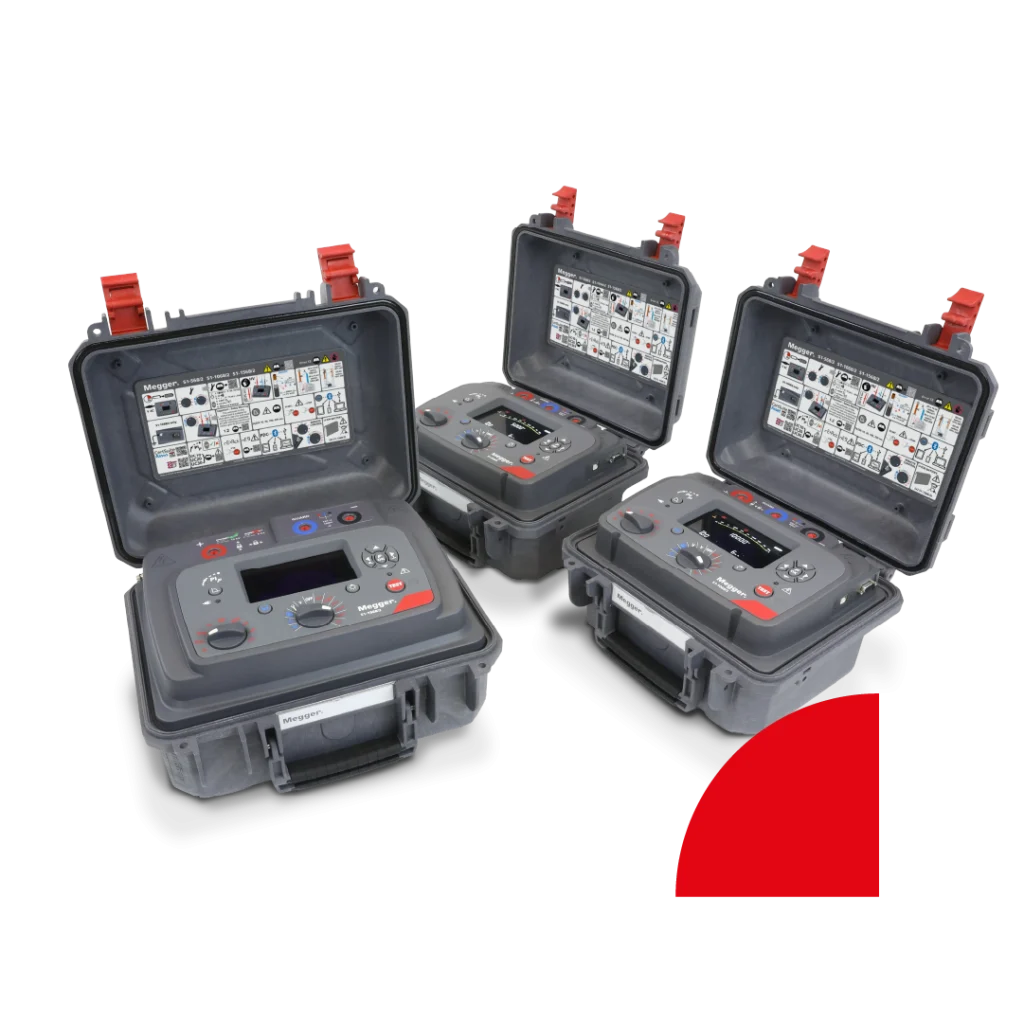

EXPERT
Unleash full capability
◣ S1-568/2
The Megger S1-568/2 is a high-performance 5 kV insulation tester built for demanding industrial and utility environments. With a 15 TΩ range, advanced diagnostic tests, and rapid charge capabilities, it offers powerful performance, long battery life, and a rugged design for reliable results in the toughest conditions.
◣ S1-1068/2
The Megger S1-1068/2 is a rugged 10 kV insulation tester designed for the most demanding environments. With a 20 TΩ range, advanced diagnostics, and high noise immunity, it delivers fast, accurate results even in harsh conditions. Ideal for utilities and industrial applications where reliability matters most.
◣ S1-1568/2
The Megger S1-1568/2 is a powerful 15 kV insulation tester with a wide 35 TΩ range, built for high-voltage testing in challenging environments. It offers advanced diagnostic features, high noise immunity, and fast charge performance, making it ideal for critical utility and industrial maintenance work.

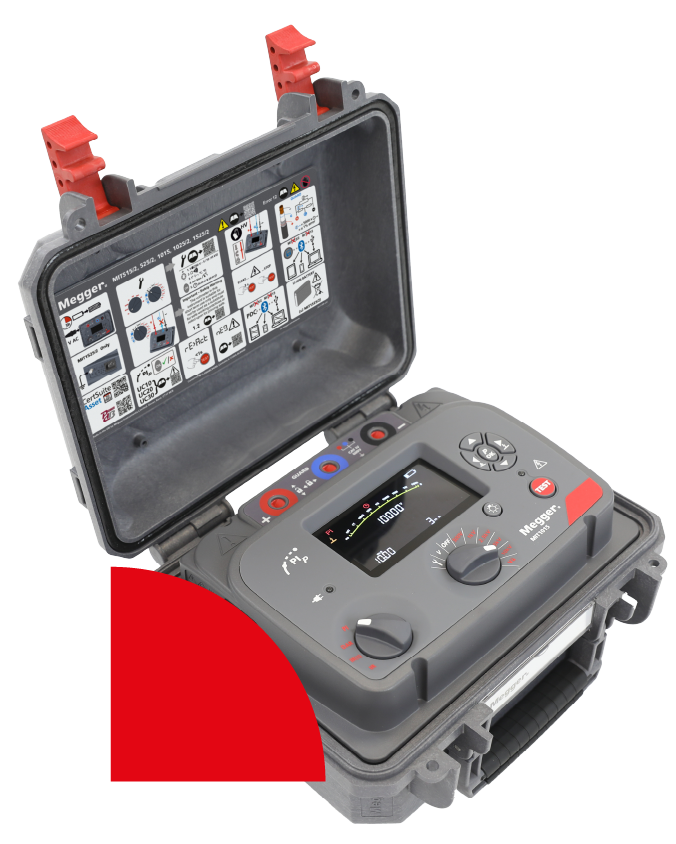

The new MIT on the block
The new Megger MIT1015 is a powerful 15 kV insulation tester with a wide 35 TΩ range, built for high-voltage testing in challenging environments. It offers advanced diagnostic features, high noise immunity, and fast charge performance, making it ideal for critical utility and industrial maintenance work.
The technical specifications.
| Feature | Essential | Advanced | Expert |
|---|---|---|---|
Test Capability | |||
High Guard Terminal Performance | |||
IR | |||
IR (t) | |||
PI (Polarisation Index) | |||
PI Predictor | |||
DAR (Dielectric Absorption Ratio) | |||
DD (Dielectric Discharge) | |||
Ramp Test | |||
RE>Act Mode | |||
PDC Test | |||
Test Voltage | |||
Max. Voltages available |
5 kv or 10 kV |
5 kv, 10 kV or 15kV |
5 kv, 10 kV or 15kV |
Charging and burn mode current | |||
Default maximum current |
3 mA |
3 mA |
6 mA |
User selectable max. current values |
N/A |
1 mA, 3 mA, 6 mA (mains only) |
1 mA, 2 mA, 3 mA, 4 mA, 5 mA, 6 mA, (mains only) |
Noise immunity | |||
User selectable max. current values |
3 mA (LV and MV <45 kV) |
6 mA (HV <230 kV) |
8 mA (EHV <1000 kV) |
Adaptive filter | |||
Negative current handling | |||
Averaging filter | |||
Safety | |||
CAT IV 1000 V | |||
CAT IV 600 V | |||
Hazardous peak voltage detection during IR measurement | |||
Data storage / features | |||
On board – time stamped | |||
Temperature value stored | |||
Humidity value stored | |||
Communications | |||
Test result transfer via wired USB | |||
Test result transfer via wireless bluetooth LE | |||
Test result live streaming via wired USB | |||
Test result live streaming via wireless Bluetooth LE | |||
Display | |||
New custom colour display | |||
Accessories | |||
Carry all holdall | |||
Deeper lid pouch | |||
Software support | |||
CertSuite Asset Lite compatible | |||
CertSuite Asset compatible | |||
Power DB Lite supplied free | |||
Power DB Advance or Pro support | |||
