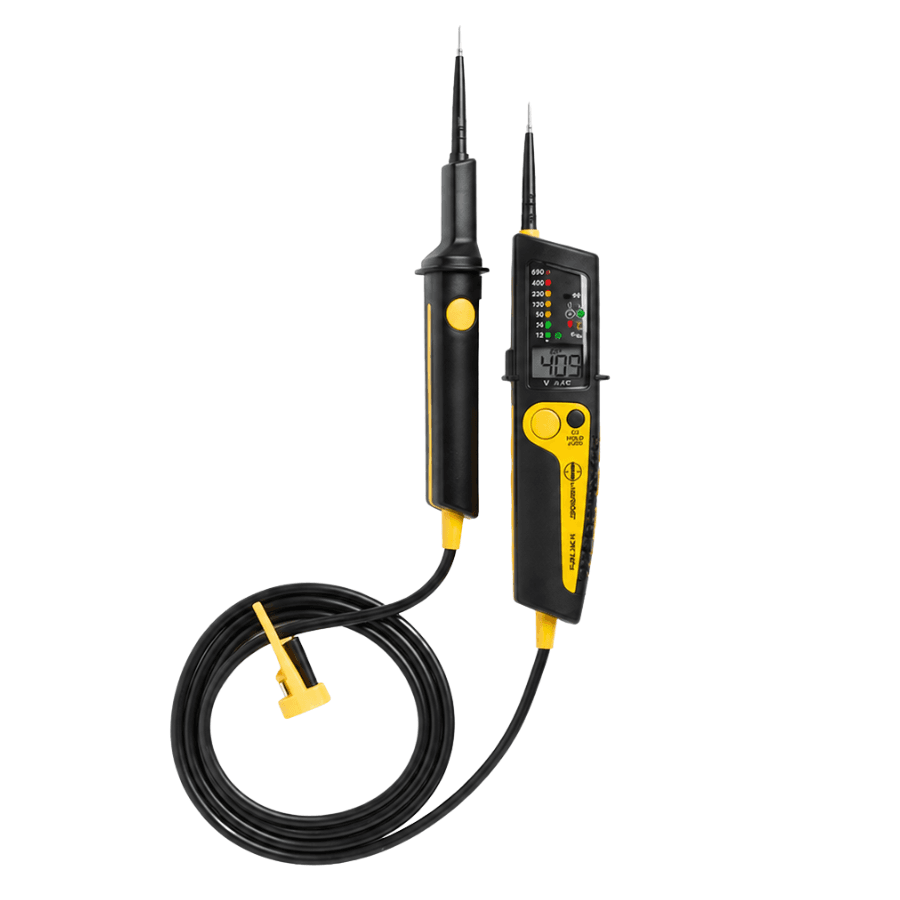

Amprobe 2100-BETA 4312508 2 Pole Tester
The Amprobe 2100-BETA 4312508 2 Pole Tester checks voltage, continuity and phase in electrical systems. Its two-pole design supports safe work in commercial and industrial settings. Clear LED and LCD displays help users read results quickly.
Automatic AC and DC detection reduces the need for manual setup. The tester uses LED steps from 12 V to 690 V, while its LCD measures from 6 V to 690 V AC/DC. An audible alert also sounds when the measured voltage reaches 50 V AC or 120 V DC.
Practical Testing Functions
The Amprobe 2100-BETA 4312508 2 Pole Tester includes automatic continuity testing up to 500 kΩ. It also checks single-pole phase and shows full-range polarity. In addition, green LEDs show right or left phase rotation on three-phase systems.
Switchable load buttons apply a test load for RCD checks and help reduce the effect of stray voltage. Users can select a 10 mA or 30 mA RCD trip test. A Data Hold function keeps voltage readings on the display when the probes must be removed.
Built for Site Work
A torch light and backlit screen support work in dim areas. The double-insulated lead includes a wear indicator that shows when the cable needs replacement. IP64 protection also guards the tester against dust and splashing water.
The Amprobe 2100-BETA 4312508 2 Pole Tester meets CAT IV 600 V and CAT III 690 V safety ratings. It is GS approved and built to the listed IEC, EN and DIN standards. Two different set types are available, so buyers can select the option that suits their work and required contents.
Key Features
- Uses coloured LEDs to show different voltage levels clearly
- Detects AC and DC voltage automatically without manual range selection
- Combines an LED voltage scale with a clear digital LCD
- Provides visual and audible continuity indication
- Checks single-pole phase with a red LED warning
- Shows right and left phase rotation with green LEDs
- Offers full-range polarity detection for fast lead checks
- Applies a switchable load through two easy-access push buttons
- Supports 10 mA and 30 mA RCD trip testing
- Holds voltage readings on screen for easier recording
- Includes a backlight for reading the LCD in poor light
- Uses a built-in torch to light the measurement area
- Provides an audible alert at dangerous voltage levels
- Switches on automatically when a valid test level is detected
- Uses double-insulated cable with a visible wear indicator
- Accepts screwable 4 mm probe extensions and GS38 probe caps
- Resists dust and splashing water to an IP64 protection level
- Comes with a four-year warranty as stated by the manufacturer
Technical Specifications
| Product name |
Amprobe 2100-BETA 4312508 2 Pole Tester |
| Manufacturer |
Amprobe |
| Manufacturer part code |
4312508 |
| Tester type |
Rugged two-pole voltage and continuity tester |
| Available set options |
Two different set types are available |
| LED voltage range |
12 V to 690 V AC/DC |
| LED indication levels |
±12 V, ±24 V, 50 V, 120 V, 230 V, 400 V and 690 V |
| LCD voltage range |
6 V to 690 V AC/DC |
| LCD resolution |
1 V |
| LCD tolerance |
±3% of reading plus 3 least significant digits |
| Frequency range |
DC or 16⅔ Hz to 1000 Hz |
| LED and LCD response time |
Less than 1 second |
| Acoustic voltage warning |
At or above 50 V AC and 120 V DC |
| Voltage detection |
Automatic AC/DC detection |
| Polarity detection |
Full-range detection |
| Range detection |
Automatic |
| Current without load buttons |
Up to 3.5 mA AC/DC at 690 V AC/DC |
| Internal load without load buttons |
Approximately 2.4 W at 690 V AC/DC |
| Test current with switchable load |
Up to 250 mA AC/DC at 690 V AC/DC |
| Switchable load |
Approximately 170 W at 690 V AC/DC |
| Automatic power-on level |
LED above 10 V and LCD above 10 V |
| Impedance at ELV level |
270 kΩ at 50 V AC |
| Impedance with switched load |
5 kΩ at 50 V AC |
| RCD switchable load test current |
Greater than 30 mA AC at 230 V AC |
| Single-pole phase voltage range |
100 V to 690 V AC against earth |
| Single-pole phase frequency |
40 Hz to 70 Hz |
| Single-pole phase indication |
Red LED with an audible signal |
| Continuity range |
0 kΩ to 500 kΩ |
| Continuity tolerance |
0% to +50% |
| Continuity test current |
Less than 5 µA |
| Continuity indication |
Yellow LED and audible signal |
| Diode test |
Yes |
| Continuity overvoltage protection |
690 V AC/DC |
| Phase rotation voltage range |
170 V to 690 V AC phase to phase |
| Phase rotation frequency |
40 Hz to 70 Hz |
| Phase rotation indication |
Green LEDs for right and left rotation |
| Data Hold |
Voltage measurement from 12 V to 690 V AC/DC |
| Torch light |
White LED |
| Display backlight |
White LED |
| Operating time |
30 seconds |
| Recovery time |
240 seconds |
| Operating temperature |
-15°C to +55°C |
| Storage temperature |
-15°C to +55°C |
| Maximum humidity |
95% relative humidity |
| Maximum operating altitude |
2000 m |
| Safety rating |
CAT IV 600 V and CAT III 690 V |
| Pollution degree |
2 |
| Ingress protection |
IP64 |
| Safety standards |
IEC 61243-3:2014, EN 61243-3:2014 and DIN VDE 0682-401:2015 |
| Approval |
GS mark from TÜV Rheinland, CE |
| Power supply |
2 × 1.5 V AAA batteries, IEC LR03 |
| Power consumption |
Approximately 90 mA |
| Battery life |
More than 10,000 measurements at under 5 seconds per measurement |
| Dimensions |
Approximately 280 × 78 × 35 mm |
| Weight |
Approximately 320 g |
| Warranty |
Four years |
Comparison Table
| Function |
2100-Alpha |
2100-Beta |
2100-Gamma |
| Safety rating |
CAT III 690 V / CAT IV 600 V |
CAT III 690 V / CAT IV 600 V |
CAT III 1000 V / CAT IV 600 V |
| LED voltage test |
Yes |
Yes |
Yes |
| LCD voltage indication |
No |
6–690 V AC/DC |
6–1000 V AC / 6–1200 V DC |
| LED voltage indication |
12–690 V AC/DC |
12–690 V AC/DC |
12–690 V AC/DC |
| Continuity test |
Below 500 kΩ |
Below 500 kΩ |
Below 500 kΩ |
| RCD trip test |
Yes |
Yes |
Yes |
| Single-pole phase test |
Yes |
Yes |
Yes |
| Full-range polarity detection |
Yes |
Yes |
Yes |
| Two-pole phase rotation |
Right and left |
Right and left |
Right and left |
| IP64 protection |
Yes |
Yes |
Yes |
| Backlight |
No |
Yes |
Yes |
| Torch and measurement-area light |
Yes |
Yes |
Yes |
| Cable wear indication |
Yes |
Yes |
Yes |
| Probe extensions and GS38 caps |
Yes |
Yes |
Yes |
| Data Hold |
No |
Yes |
Yes |
| Resistance measurement |
No |
No |
0–1999 Ω |
| Low-resistance indication |
No |
No |
Audible below 10 Ω |
Document Downloads
What’s Included
- Amprobe 2100-BETA two-pole tester
- Screwable 4 mm test probe extensions
- GS38 protective probe caps
