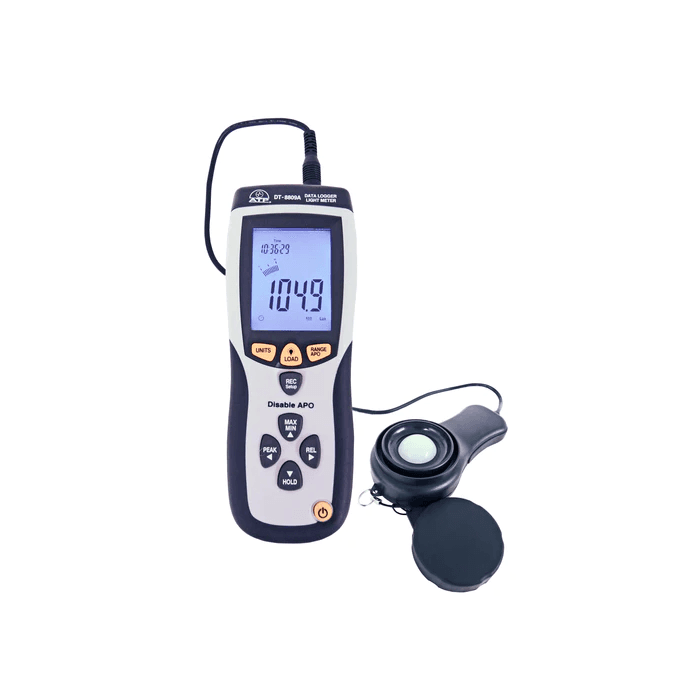

ATP LX-8809A USB Data Logging Light Meter
ATP LX-8809A USB Data Logging Light Meter provides clear light level measurements in both Lux and Footcandle. Four measuring ranges cover light levels up to 400,000 Lux and 40,000 FC, allowing one instrument to handle a wide range of survey conditions. A large 58 mm LCD with backlight, clear icons and a 41-segment bargraph makes readings easy to view during site work.
A remote light sensor with a one-metre lead helps users take readings around ducts, hoods and other areas that are difficult to reach while keeping the meter in hand. The silicon photodiode sensor uses a spectral response filter, while the fully cosine-corrected lens supports stable measurements when the sensor is used at an angle. Relative measurement, peak hold, minimum and maximum review, auto zero and an over-range warning provide useful controls for routine checking and survey work.
For longer measurement tasks, the ATP LX-8809A USB Data Logging Light Meter can record more than 16,000 readings for later transfer to a PC or laptop through USB. The instrument can also store up to 99 readings for on-screen review, and the user can set the data logger sampling rate and time. Auto power-off after 15 minutes helps conserve battery life and can be disabled when continuous operation is required.
Key Benefits
- Measures in both Lux and Footcandle for flexible light surveys.
- Four measurement ranges cover light levels up to 400,000 Lux.
- Records over 16,000 readings for longer surveys and later review.
- Transfers logged data by USB to a PC or laptop for graphing and reporting.
- Large backlit LCD and 41-segment bargraph improve reading visibility.
- One-metre remote sensor lead provides easier access to ducts, hoods and tight areas.
- Relative mode helps compare light levels between different areas.
- Peak hold and minimum/maximum review help capture changing light levels.
- Auto zero and over-range indication help users identify measurement conditions during use.
- Auto power-off helps conserve battery life and can be disabled when required.
Common Applications
ATP LX-8809A USB Data Logging Light Meter is suitable for a range of testing, maintenance and inspection tasks, including:
- Environmental light monitoring
- Health and safety inspections
- Industrial light surveys
- General site light level surveys
- Light measurement inside ducts
- Light checks around hoods
- Measurements in tight or hard-to-reach areas
- Comparing light levels between areas using relative mode
Why Choose This Model?
The ATP LX-8809A combines measurement up to 400,000 Lux with data logging for over 16,000 readings, USB PC transfer and a one-metre remote light sensor. It also offers on-screen memory, relative measurement, peak hold and minimum/maximum review in one portable light meter.
