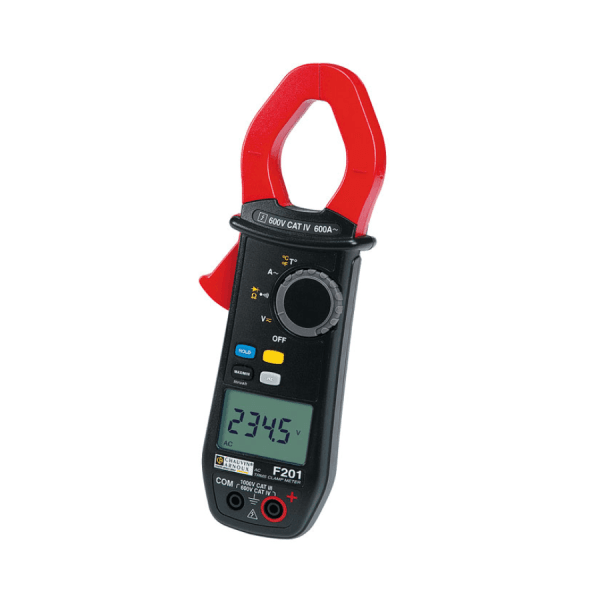

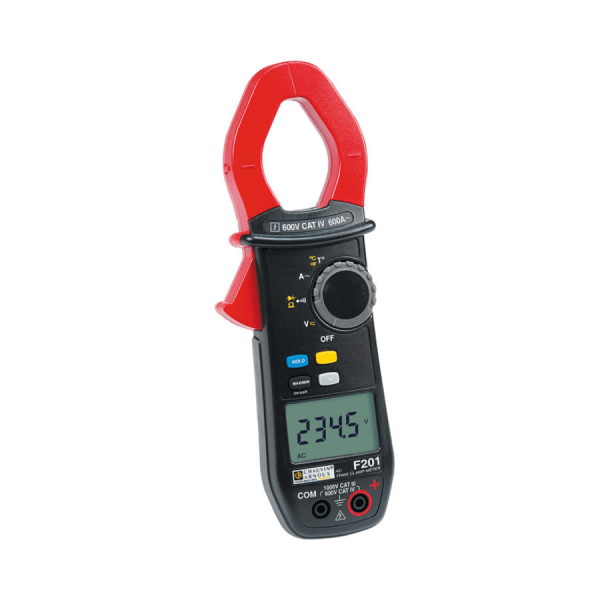

Chauvin Arnoux F201 True RMS Clamp Meter
The Chauvin Arnoux F201 True RMS Clamp Meter is a reliable and versatile tool for professional electricians. It provides accurate measurements for AC voltage up to 1000V, DC voltage up to 1400V, and AC current up to 600A. Its compact, ergonomic design makes it easy to operate with one gloved hand, perfect for tight spaces like switch cabinets. The meter’s simple dial and button controls ensure straightforward operation, while the clear LCD screen displays results with ease.
Enhanced Features for Versatile Measurements
This clamp meter is equipped with True RMS technology, ensuring precise readings on non-linear waveforms. It also features True Inrush current measurement, capturing start-up surges from single motors or multiple machines. Additional functionalities include resistance, frequency, continuity, and diode testing, along with temperature measurements ranging from -60°C to 1000°C. The Chauvin Arnoux F201 handles tough tasks with its durable IP54-rated casing, protecting against dust and withstanding drops of up to 2m.
Data hold and min/max recording functions allow users to analyse and freeze readings for better troubleshooting. An audible continuity buzzer ensures quick feedback during tests, enhancing user efficiency. This meter is CAT IV 600V rated, providing high-level safety for mains-connected circuits.
With a 34mm clamping diameter and weighing only 300g, the F201 is both lightweight and robust, making it an essential tool for professional maintenance tasks. A three-year warranty provides added peace of mind, and the also includes accessories like test leads, a thermocouple, and a protective case.
Key Features
- Measures AC voltage up to 1000V and DC voltage up to 1400V
- True RMS for accurate readings on non-linear waveforms
- Inrush current measurement for capturing start-up surges
- Tests AC current up to 600A
- Resistance measurement up to 59.99kΩ
- Temperature range from -60°C to 1000°C
- Frequency measurement for current up to 3000Hz, voltage up to 20kHz
- Audible continuity and diode testing
- 34mm jaw opening for clamping larger cables
- IP54 rated for dust resistance, drop tested to 2m
