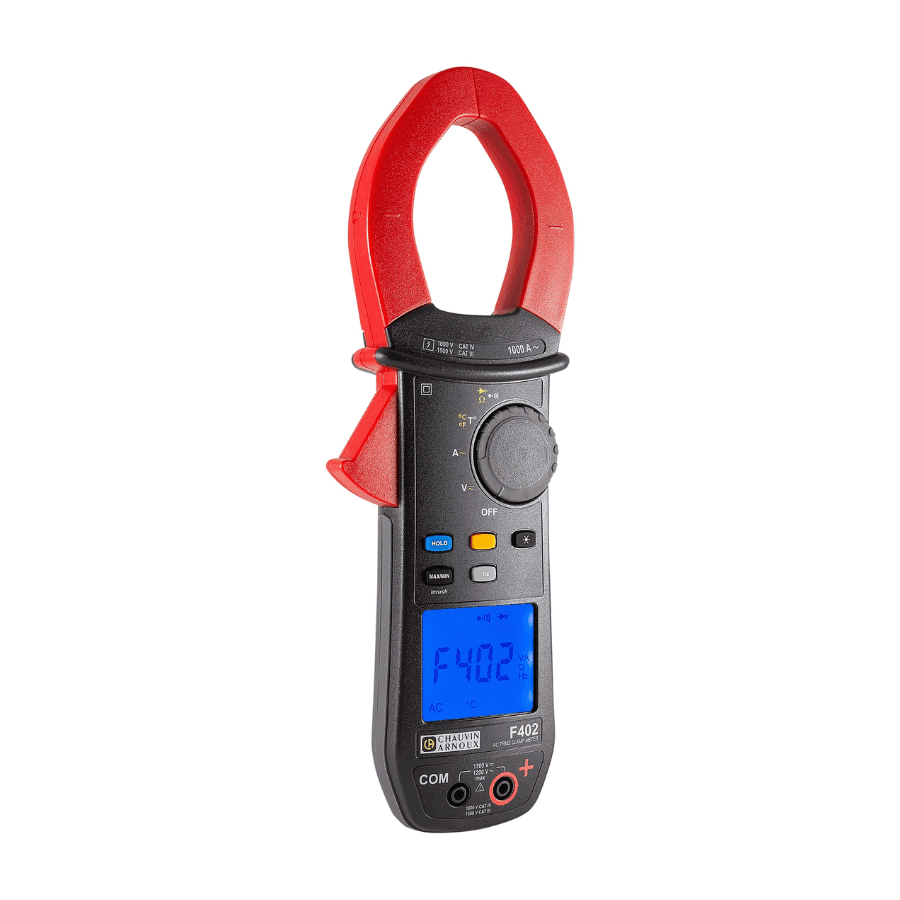

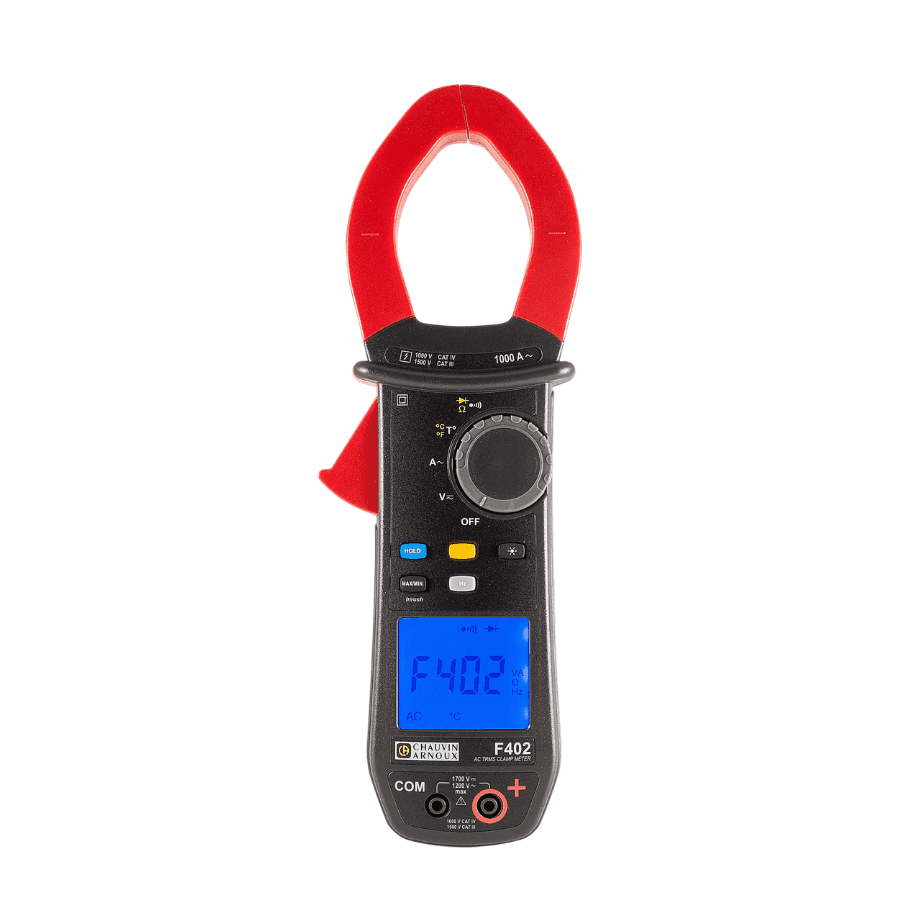

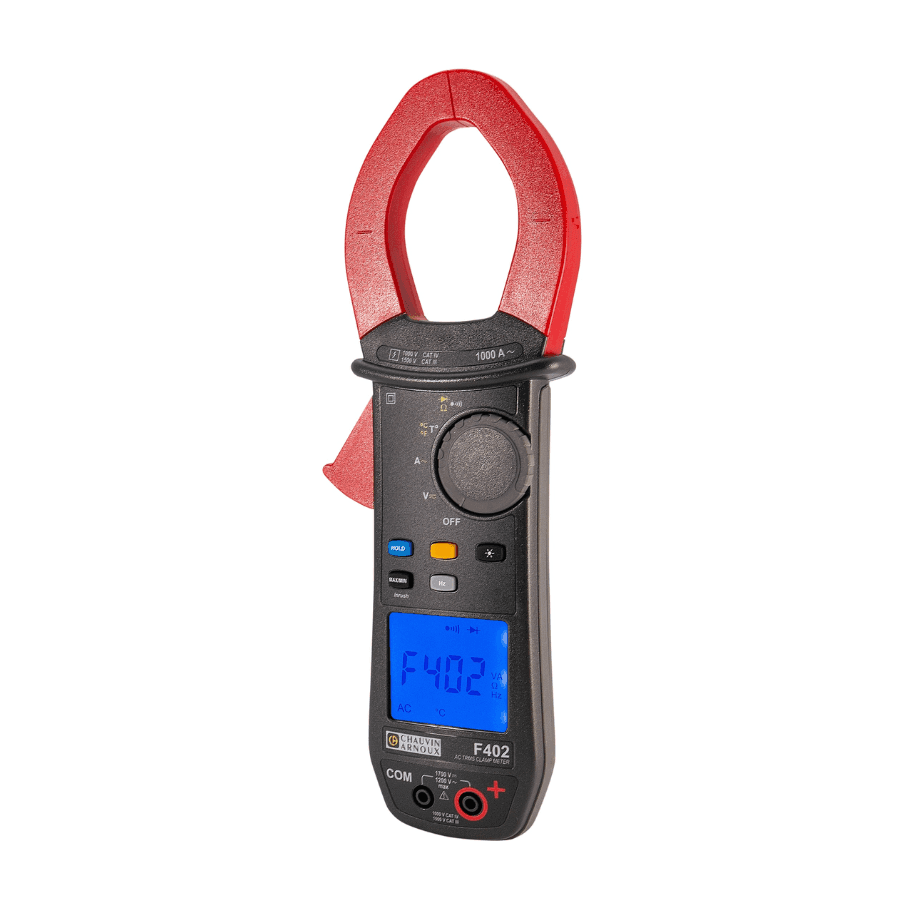

Chauvin Arnoux F402 Clamp Multimeter
The Chauvin Arnoux F402 Clamp Multimeter is built for electrical testing, maintenance, and fault finding in low-voltage installations. It combines high measurement accuracy with a strong safety specification, making it suitable for demanding working environments. The advanced 12-bit TRMS digital acquisition system helps deliver reliable readings across different signal types.
Designed for professional users, this clamp multimeter measures AC current up to 1,000A and voltage up to 1,200VAC or 1,700VDC. It also supports resistance checks, continuity testing, and temperature measurement. As a result, users can carry out a wide range of electrical tests with a single instrument.
Accurate Measurement Performance
Fast signal processing allows the Chauvin Arnoux F402 Clamp Multimeter to capture readings with excellent precision. In addition, the TrueInrush function helps measure start-up currents that are often difficult to record with standard meters. Data Hold, Min, and Max functions also make it easier to review important measurements during testing.
Automatic AC/DC detection saves time when moving between different applications. Furthermore, the 48mm clamp opening provides flexibility when working on larger conductors. This makes the instrument suitable for installation, servicing, and diagnostic tasks.
Built for Demanding Environments
Safety remains a key feature of the Chauvin Arnoux F402 Clamp Multimeter. It is rated to CAT IV 1000V and CAT III 1500V standards, helping protect users when working on electrical systems. These ratings make it suitable for professional maintenance and monitoring work.
Durability is equally important. The IP54-rated housing helps protect against dust and water ingress, while the robust construction supports daily use on site. Two different set types are available, allowing users to select the package that best suits their testing requirements.
Key Features
- 12-bit TRMS digital acquisition technology
- TrueInrush current measurement capability
- Automatic AC and DC signal detection
- Large 48mm clamp opening for versatile use
- Data Hold function for capturing readings
- Minimum value recording function
- Maximum value recording function
- Suitable for maintenance and diagnostic work
- Designed for low-voltage electrical installations
- Reliable performance across varying signal waveforms
- Professional-grade measurement platform
- Supports monitoring, testing, and fault finding tasks
- Robust construction for demanding environments
- Available in two different set configurations
Technical Specifications
| Product name | Chauvin Arnoux F402 Clamp Multimeter |
| Manufacturer | Chauvin Arnoux |
| Measurement technology | 12-bit TRMS digital acquisition system |
| Maximum AC current | 1,000A AC |
| Maximum AC voltage | 1,200VAC |
| Maximum DC voltage | 1,700VDC |
| Resistance measurement | Yes |
| Continuity test | Audible continuity testing |
| Temperature measurement | Yes |
| AC/DC detection | Automatic |
| Clamp opening | 48mm |
| Current measurement type | TrueInrush current measurement |
| Safety category | CAT IV 1000V |
| Safety category | CAT III 1500V |
| Ingress protection | IP54 |
| Data functions | Data Hold, Min and Max |
| Typical applications | Maintenance, monitoring, testing and diagnostics |
| Installation type | Low-voltage electrical installations |
| Set options | Two different set types available |
Document Downloads
What’s Included
- Chauvin Arnoux F402 Clamp Multimeter
- Multi-language instructions
- Test leads
- Test probes
- 9V battery
- Carry case
