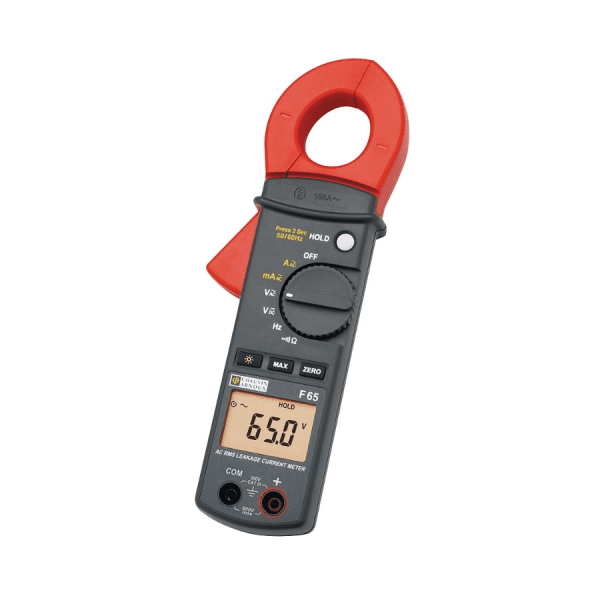

Chauvin Arnoux F65 Leakage Clamp Multimeter
Your installation and its users may be endangered through isolation faults and untimely RCD tripping. Such phenomena are often caused by leakage currents that prove difficult to detect. For testing and maintenance professionals in the industrial and tertiary sectors faced with this challenge, F65 pocket-sized clamps are the recognized solution, while providing the full range of functions proposed by conventional clamp multimeters.
Offering exceptional resolution of 10 µA and high immunity (70 dB) to eddy currents, the F65 clamp is specially suited to the measurement of leakage currents that trigger RCDs, causing imbalances between phase-phase and phaseearth currents. The harmonic filter facilitates the detection of
faults on disturbed systems and power circuits (switched power supplies, variable speed drives, inverters, etc.).
F65 key features
Backlit 10,000-count LCD screen
Automatic power-off function
High immunity offered by 28mm maximum insertion jaws
“Zero” relative value function to facilitate comparative measurements
Rotating selector switch for selection of desired measurement: current, voltage, frequency, audible continuity or resistance
x1 set of elbowed male banana/straight male banana leads,
x1 set of test probes,
x2 1.5 V AAA/LR3 batteries,
x1 carry bag
x1 operating manual in 5 languages
