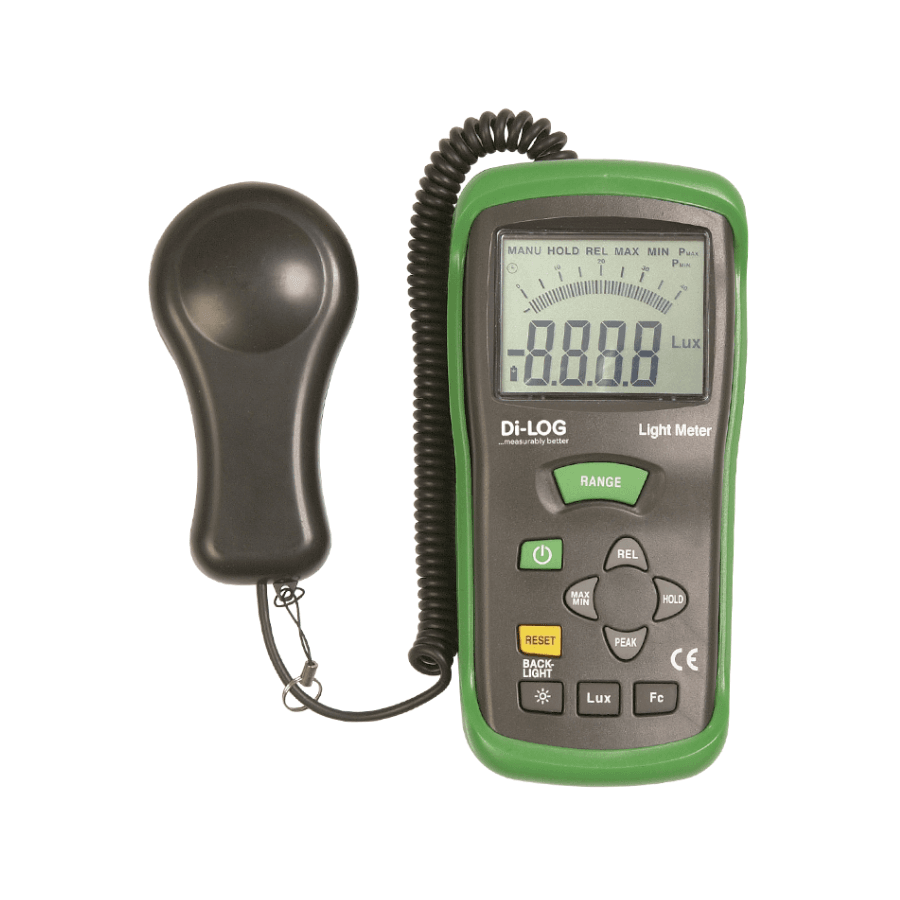

Di-Log DL7040 Digital Light Meter
The Di-Log DL7040 Digital Light Meter helps users check light levels across a wide range of sites. It measures up to 400,000 lux, so it suits general checks as well as high light areas. This makes it useful for environmental, health and safety, and industrial work.
Users can read results on a 4000 count digital LCD display. In addition, the bar graph display gives a quick view of changing light levels. The clear screen helps reduce errors during routine testing.
Wide Light Measurement
This meter covers two lux ranges for flexible use. The lower range measures 0 to 50,000 lux with higher accuracy. The upper range extends to 400,000 lux for brighter settings.
The Di-Log DL7040 Digital Light Meter also offers 0.1 lux maximum resolution. As a result, it can support closer checks where small light changes matter. Its 1.5 times per second measuring rate gives steady updates during testing.
Practical Field Functions
A long life silicon photo diode sensor supports reliable light detection. Meanwhile, peak hold, data hold, min and max hold, and relative reading help users record useful values. These functions make it easier to compare areas and track changes.
The Di-Log DL7040 Digital Light Meter is supplied with a rubber holster, attached diode sensor, cover, and carry case. It also includes auto power off, low battery indication, and over range indication. Therefore, it is well suited to regular site checks and portable use.
Key Features
- 4000 count display for clear digital readings
- Bar graph display for quick light level changes
- Measures up to 400,000 lux
- Long life silicon photo diode sensor
- Peak hold function for capturing peak readings
- Data hold function for freezing displayed values
- Min and max hold for checking light variation
- Relative reading for comparison checks
- Over range indication for measurement limits
- Auto power off to help save battery life
- Low battery indication for user awareness
- Lux and foot candle selectable measurement
- Carry case included for storage and transport
Technical Specifications
| Product name | Di-Log DL7040 Digital Light Meter |
| Display type | 3½ digit digital LCD |
| Display count | 4000 count with bar graph |
| Primary measurement | Lux light level measurement |
| Selectable unit | Lux and foot candle |
| Low lux range | 0 to 50,000 lux |
| High lux range | 0 to 400,000 lux |
| Low range accuracy | ±5% + 10 digits |
| High range accuracy | ±10% + digits |
| Maximum resolution | 0.1 lux |
| Measuring rate | 1.5 times per second |
| Sensor type | Silicon photo diode sensor |
| Power supply | 1 x 9 V battery, PP3 format stated in supplied data |
| Dimensions | 165 x 76 x 43 mm |
| Weight | 403 g |
| Supplied protection | Rubber holster with sensor cover |
Comparison Table
| Measurement setting | Range | Accuracy | Best suited use |
| Lux range 1 | 0 to 50,000 lux | ±5% + 10 digits | General light checks with higher accuracy |
| Lux range 2 | 0 to 400,000 lux | ±10% + digits | Bright light checks and wider site use |
Document Downloads
What’s Included
- Di-Log DL7040 Digital Light Meter
- Attached diode sensor
- Sensor cover
- Rubber holster
- Carry case
