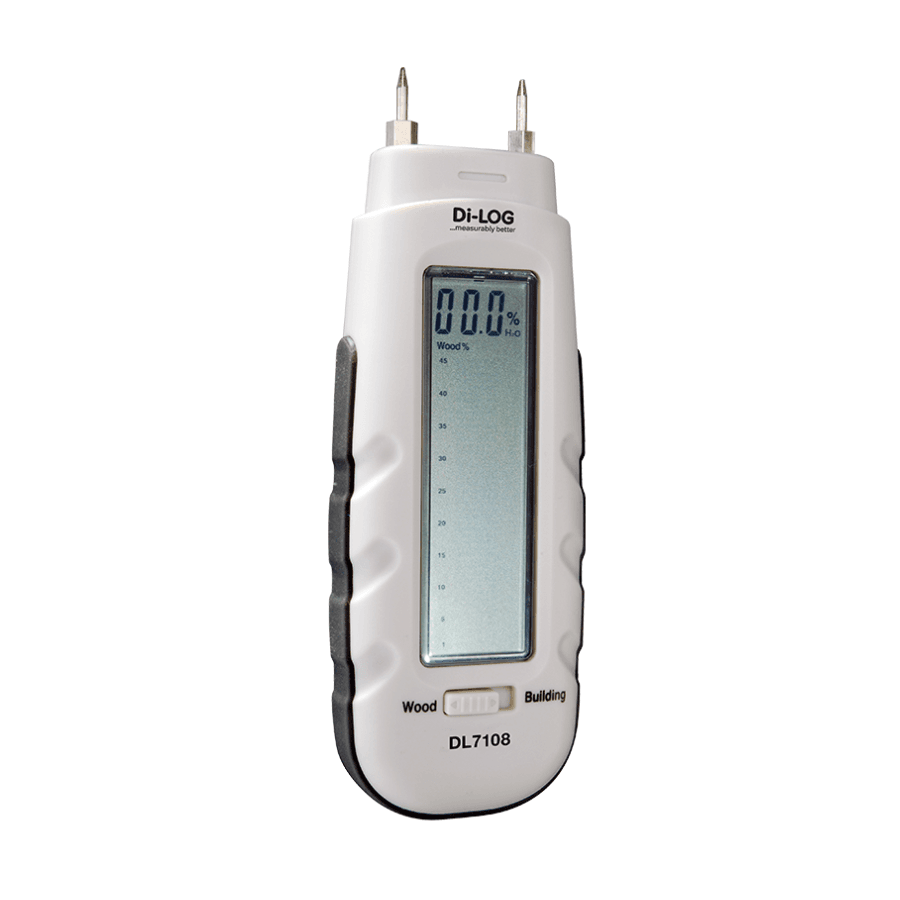

Di-Log DL7108 Moisture Meter
The Di-Log DL7108 Moisture Meter provides a fast and simple way to check moisture levels in building materials. It helps users assess damp conditions in timber, plaster, brick and other common materials. Clear digital readings and a bar graph indicator allow quick interpretation of results during surveys or inspection work.
Designed for direct measurement, the Di-Log DL7108 Moisture Meter uses penetrating electrode pins that reach into the material surface. As a result, it measures moisture where it matters most. This approach supports more reliable readings when checking timber structures, walls or floors.
Clear Moisture Measurement
A large LCD screen shows both a numeric value and an analogue style bar indicator. This combination helps users identify moisture trends at a glance. In addition, the dual scale design allows the meter to measure both wood moisture content and general building material moisture levels.
The Di-Log DL7108 Moisture Meter includes two selectable measurement ranges. One range is designed for wood moisture readings between 6 and 44 percent. The second range supports other building materials between 0.2 and 2.0 percent moisture content.
Designed for Building Inspection
Reliable construction tools must be simple to operate and durable in daily use. Therefore the meter includes replaceable electrode pins and a compact handheld body. This makes the Di-Log DL7108 Moisture Meter suitable for surveyors, maintenance engineers and property inspectors.
Because different materials absorb moisture in different ways, the meter provides a reference reading for damp conditions. For example, timber may show higher moisture values than brick at the same level of dampness. The Di-Log DL7108 Moisture Meter allows professionals to compare readings and assess potential moisture issues with confidence.
Key Features
- Pin type moisture meter designed for building inspection work
- Measures moisture levels in timber cardboard plaster brick and mortar
- Direct measurement method using penetrating probe electrodes
- Large LCD screen with clear digital moisture value
- Analogue bar graph display for quick visual interpretation
- Simple switch located beneath the display selects measurement range
- Compact handheld design suited to field inspection tasks
- Provides relative damp indication for property surveys
- Supports moisture evaluation during construction maintenance and repair
- Lightweight instrument suitable for daily professional use
- Helps identify damp problems in walls floors and timber structures
Technical Specifications
| Product name | DL7108 Moisture Meter |
| Manufacturer | Di-Log |
| Manufacturer part code | DL7108 |
| Measurement method | Electrical resistance using penetrating electrodes |
| Electrode length | 8 mm |
| Electrode type | Integrated replaceable pin electrodes |
| Wood moisture measurement range | 6 to 44 percent moisture content |
| Building material moisture range | 0.2 to 2.0 percent moisture content |
| Measurement accuracy wood scale | 1 percent |
| Measurement accuracy material scale | ±0.05 percent |
| Display type | Large LCD with digital reading and analogue bar graph |
| Power supply | 3 × CR2032 batteries |
| Dimensions | 140 × 48 × 33 mm |
| Weight | 93 g |
Additional Information
| Material | Moisture Content % | Interpretation |
| Wood | 4% | Extremely dry |
| Mortar | 4% | Dry |
| Brick | 4% | Damp |
| Plaster | 4% | Very wet |
| Wood | 12% | Air dry |
| Brick | 12% | Saturated |
| Plaster | 12% | Not possible |
Document Downloads
What’s Included
- Di-Log DL7108 Moisture Meter
- Integrated penetrating electrode pins
- CR2032 batteries
