Di-LOG DLEV1 EVSE Charge Station Adaptor Kit

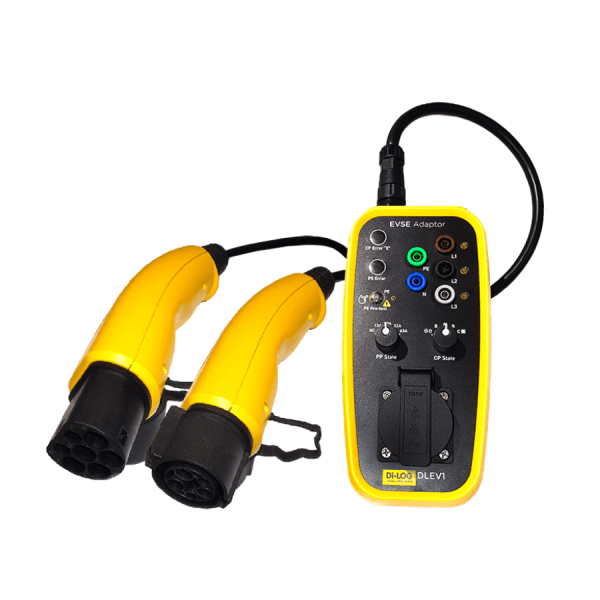

The Di-LOG DLEV1 EVSE Charge Station Adaptor Kit is a versatile and essential tool for professionals working with electric vehicle supply equipment (EVSE). Designed to simulate both Proximity Pilot (PP) and Control Pilot (CP) states, this kit ensures seamless testing and activation of EV charge stations, whether they are free-standing or wall-mounted. The DLEV1 is equipped with both Type 1 and Type 2 connector plugs, making it compatible with a wide range of EV chargers.

This adaptor kit goes beyond basic functionality by offering the ability to simulate PE Pre-test, CP Error “E,” and PE Error states, which are crucial for thorough testing and diagnostics. Additionally, the DLEV1 provides CP signal output and load connection capabilities, enhancing its utility in various testing scenarios. The 13A socket allows for easy connection to Multifunction Testers (MFT) or can be used for inline load connection, while the 4mm input terminals support single and 3-phase connections.

Universal compatibility with all electrical installation multifunction testers, including the Di-LOG DL9130EV, ensures that the DLEV1 can integrate smoothly into any professional’s toolkit. For those looking for a comprehensive solution, the DLEV1 is also available as part of the DL9130EVKIT, offering everything needed for effective EVSE testing in one package. This kit is compliant with stringent safety standards, providing peace of mind during operation.

Key Features

• Compatible with all electrical multifunction installation testers
• Simulates Proximity Pilot (PP) states: NC, 13A, 20A, 32A, and 63A
• Simulates Control Pilot (CP) states: A, B, C, and D
• Includes simulation for PE Pre-test, CP Error “E,” and PE Error
• Type 1 and Type 2 EV connector plugs provided for comprehensive testing
• 13A socket available for MFT mains lead or inline load connection
• 4mm input terminals support both single and 3-phase chargers
• CP signal output and load connection for enhanced testing capabilities
• Compliance with EN 61326-2-2, EN IEC 61326-1: 2021, BS EN 61010-1, and BS EN 61010-2-30 safety standards
• Can be purchased as part of the DL9130EVKIT for a complete EV testing solution

Technical Specifications

What’s Included

• Di-Log DLEV1 EVSE Charge Station Adaptor Kit
• Type 1 EV Connector Plug
• Type 2 EV Connector Plug
