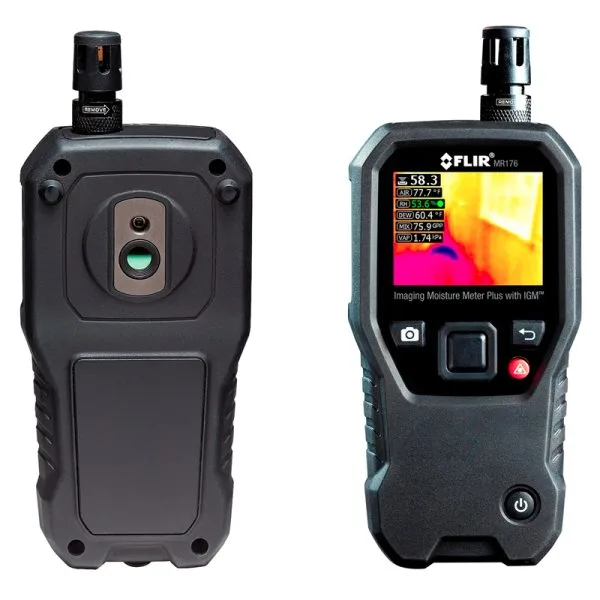

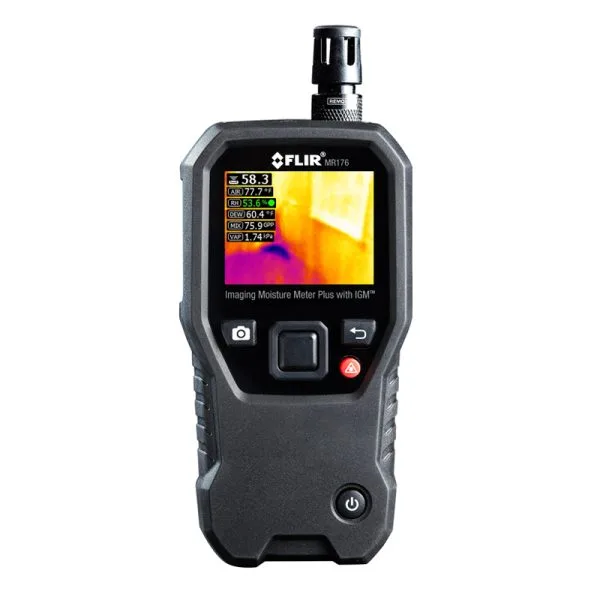

FLIR MR176 Imaging Moisture Meter
Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton thermal imaging sensor, MR176 visually guides you to the precise spot that moisture may be hiding for further testing and investigation. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM.
Easily Investigate Moisture Issues And Troubleshoot Quickly

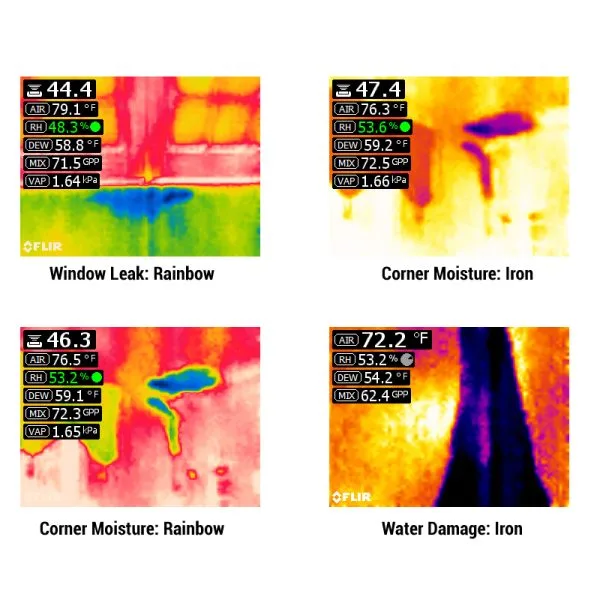

Visually identify hidden moisture with IGM, and benefit from added flexibility with the MR176. Customize readings to your preference by selecting which measurements are integrated into your thermal images (moisture, temperature, RH, dew point, vapor pressure, mixing ratio), and display images in a color palette of your choice: Ice, iron, rainbow, or gray.
Take Precise Measurements And Confidently Analyze Readings
Verify moisture levels with non-intrusive, integrated pinless sensor moisture measurements, or via the external pin probe (with expandable probe options) for intrusive measurements. The field-replaceable temperature and relative humidity sensor can simply be removed from meter and replaced when needed, so you can reduce unnecessary downtime. A Progressive Environmental Stability Indicator removes response-time error when you move through a site to different measurement locations, informing you when the relative humidity readings have stabilized.
Convenient, Flexible, Easy To Operate
Get more work done in less time with the intuitive, easy-to-navigate menu system. Document and share your readings and images, and quickly generate reports with Free FLIR Tools PC software. With a durable, over-molded design, and an industry-leading 2-10 warranty, MR176 will serve you well for years.
Features
IGM
- An 80 x 60, 4800-pixel Lepton thermal imager powers IGM technology, visually indicating potential moisture areas via the color display
Replaceable thermal hygrometer
- Field-replaceable temperature/relative humidity sensor can simply be removed from meter and exchanged when needed, so you can continue to work and reduce downtime
Measurement Accuracy
- Progressive Environmental Stability Indicator removes response time error when you move through a site to different measurement locations, informing you when the relative humidity readings have reached a steady state.
Customizable measurements
- Select which measurements are integrated into your thermal images (moisture, temperature, relative humidity, dew point, vapor pressure, mixing ratio), and choose from one of four thermal imaging color palettes
Pin and Pinless
- Integrated pinless moisture measurements for fast detection, and external pin probe included with expandable probe options
Laser
- Equipped with a laser and cross hair to easily reference the exact location of the potential moisture issue seen in the thermal image
| Model Number | FLIR MR176 | |
|---|---|---|
| Thermal Imaging | ||
| Thermal Imaging Detector | FLIR Lepton microbolometer | |
| Image Calibration | Automatic with manual lock scale option | |
| Thermal Image Resolution | 4800 pixels (80 × 60) | |
| Spectral Response | 8–14 μm | |
| Field of View | 51° × 38° | |
| Sensitivity | < 150mK | |
| Detection Limit (Wet Area Detection @ 32ft (10m) |
19.7in2 (49cm2) | |
| Image Frame Rate | 9 Hz | |
| Thermal Image Palettes | Iron, Rainbow, Ice, Greyscale | |
| Minimum Focus Distance | 10 cm (4”) | |
| Moisture Measurement | Range | Basic Accuracy |
|---|---|---|
| Pin Moisture | 7% to 30% | ±1.5% MC |
| 30% to 100% | Reference only | |
| Pin Moisture Groups | 9 material groups | |
| Pinless Moisture Range | 0 to 100 | Relative |
| Pinless Measurement Depth | 0.75″ (19mm) Max | |
| Measurement Resolution | 0.1 | |
| Response Time Pinless | 100 ms | |
| Response Time Pin Mode | 750 ms | |
| Environmental Measurement | Range | Basic Accuracy |
|---|---|---|
| Relative Humidity | 0 to 100% | 2.5%RH |
| Air Temperature | 32 to 122°F (0 to 50°C) | ±1.1°F (±0.6°C) |
| Dew Point | -22 to 122°F (-30 to 50°C) | ±1.8°F (±1.0°C) |
| Vapor Pressure | 0.0 to 12.0kPa | ±0.05kPa |
| Mixing Ratio | 0 to 560GPP (0.0 to 80.0 g/kg) | ±2GPP (0.25 g/kg) |
| General Information | ||
|---|---|---|
| Display Type | QVGA (320 × 240 pixel) 2.3” color TFT graphical display | |
| Saved Image File format | BMP with measurement values overlaid | |
| Stored Image Capacity | 9999 images | |
| Laser Orientation | Single laser pointer to center of thermal image | |
| Continuous Run Time | 18 hours max | |
| Typical Usage | 4 work weeks | |
| Battery | 3.7V, 3000mAh Li-ion rechargeable via micro USB | |
| Certification Standards | EN 61326 (EMC), EN 60825-1 Class 2 (Laser) | |
| Agency Approvals | CE, FCC Class B | |
| Warranty | 2 Yr Product, 10 Yr Thermal Detector | |

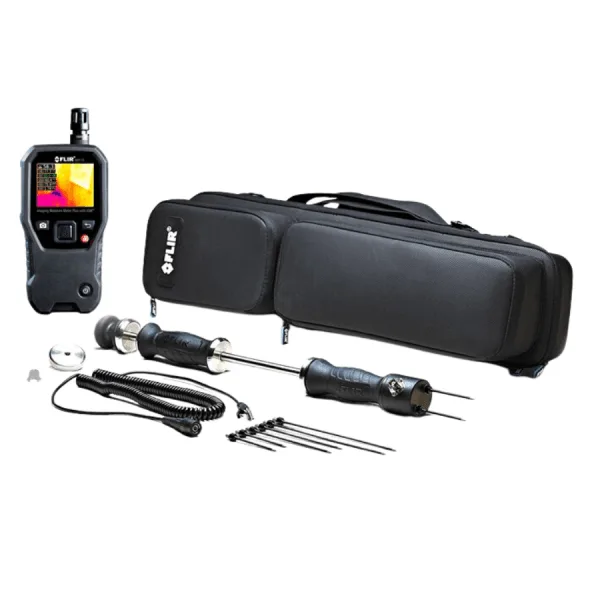

What’s Included?
- Imaging Moisture Meter
- FLIR MR01 Replaceable Temperature and Relative Humidity Sensor
- FLIR MR02 Standard Pin Probe
- Quick Start Guide
- International USB Charger
- USB Cable
