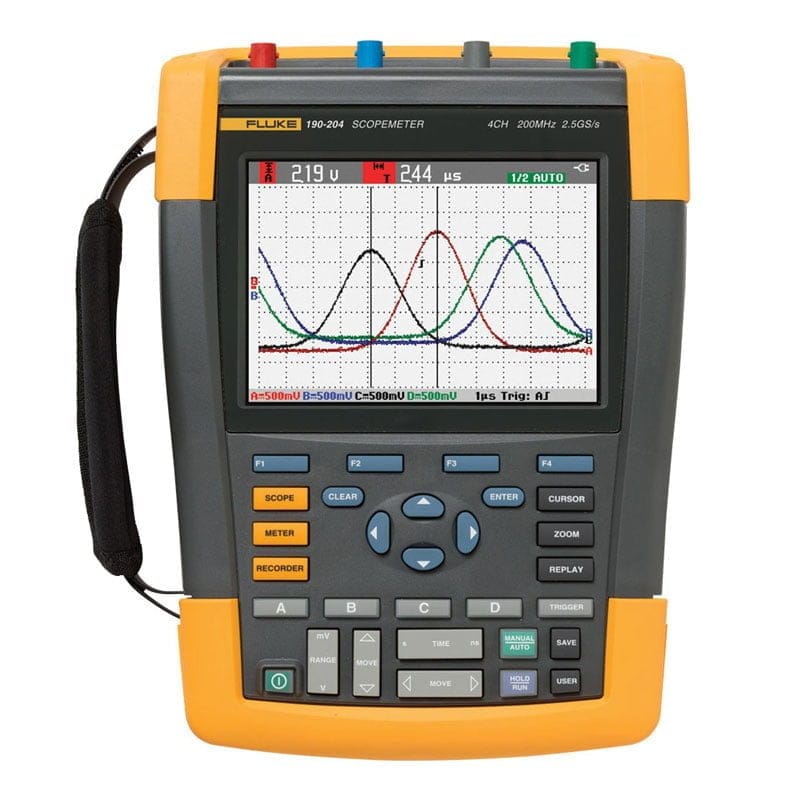

Fluke 190-204/S Colour ScopeMeter Test Tool Kit

The Fluke 190-204/S Colour ScopeMeter Test Tool Kit combines rugged design with high performance. It is built to handle demanding environments while still delivering accurate and fast results. With 200 MHz bandwidth and a real-time sample rate up to 2.5 GS/s, this portable scope ensures you can capture the smallest details. Its four independent inputs and CAT IV safety rating provide versatility and confidence when working in both industrial and field settings.

Built for Demanding Tasks

Engineers and technicians can rely on the Fluke 190-204/S to tackle a wide range of diagnostic challenges. It is suitable for micro-electronics, power electronics, and three-phase systems. Its deep memory of 10,000 samples per channel makes it possible to zoom into fine waveform details. IP-51 protection keeps the instrument safe against dust, humidity, and drips, ensuring it works consistently in harsh conditions.

Reliable Measurements and Recording

The Fluke 190-204/S makes capturing and analysing waveforms easy. Features such as Connect-and-View auto-triggering, ScopeRecord for up to 48 hours of data, and TrendPlot for 22-day monitoring give you greater diagnostic power. Its built-in digital multimeter extends its capabilities further, making it possible to measure voltage, resistance, continuity, and more without switching tools.

This model also provides excellent usability and flexibility. The Li-Ion battery supports up to seven hours of continuous operation, with a quick-swap battery door for minimal downtime. Isolated USB ports allow safe data transfer and waveform storage, while the included FlukeView software supports further analysis and archiving. Rugged, portable, and powerful, the Fluke 190-204/S is designed to help you resolve problems quickly and safely.

Key Features

• Four independent and isolated input channels
• Safety rated to CAT III 1000 V and CAT IV 600 V
• 200 MHz bandwidth for high-frequency analysis
• Real-time sampling up to 2.5 GS/s
• Deep memory of 10,000 samples per channel
• ScopeRecord mode for 48-hour waveform capture
• TrendPlot mode for monitoring up to 22 days
• Built-in digital multimeter with quad measurements
• Connect-and-View auto-triggering for stable signals
• Rugged IP-51 dust and drip proof housing
• Isolated USB connectivity for PC and memory devices
• Li-Ion battery providing up to 7 hours operation
• Easy access battery door for fast swaps
• Supplied with software, probes, leads, and carry case

Technical Specifications

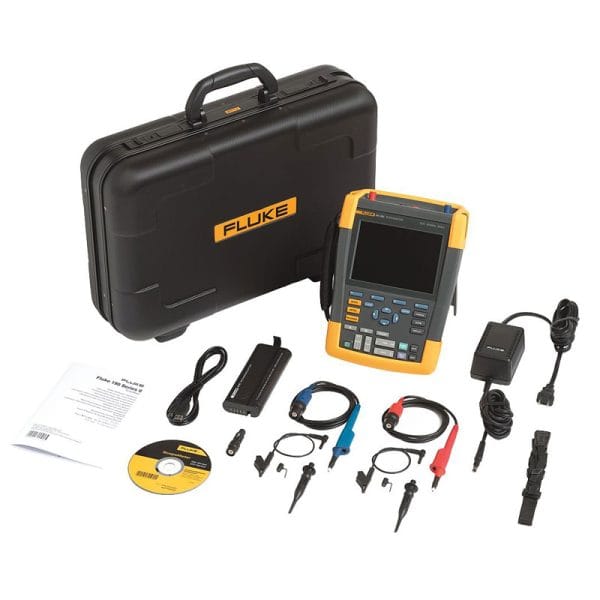

What’s Included

• Fluke 190-204/S Colour ScopeMeter
• Battery charger and mains adapter
• Li-Ion BP291 battery pack
• VPS410 voltage probe sets with accessories
• TL175 test leads red and black
• Handstrap and hangstrap
• Multilingual user manuals on CD-ROM
• FlukeView demo package (restricted)
• USB interface cable
• Carry case
