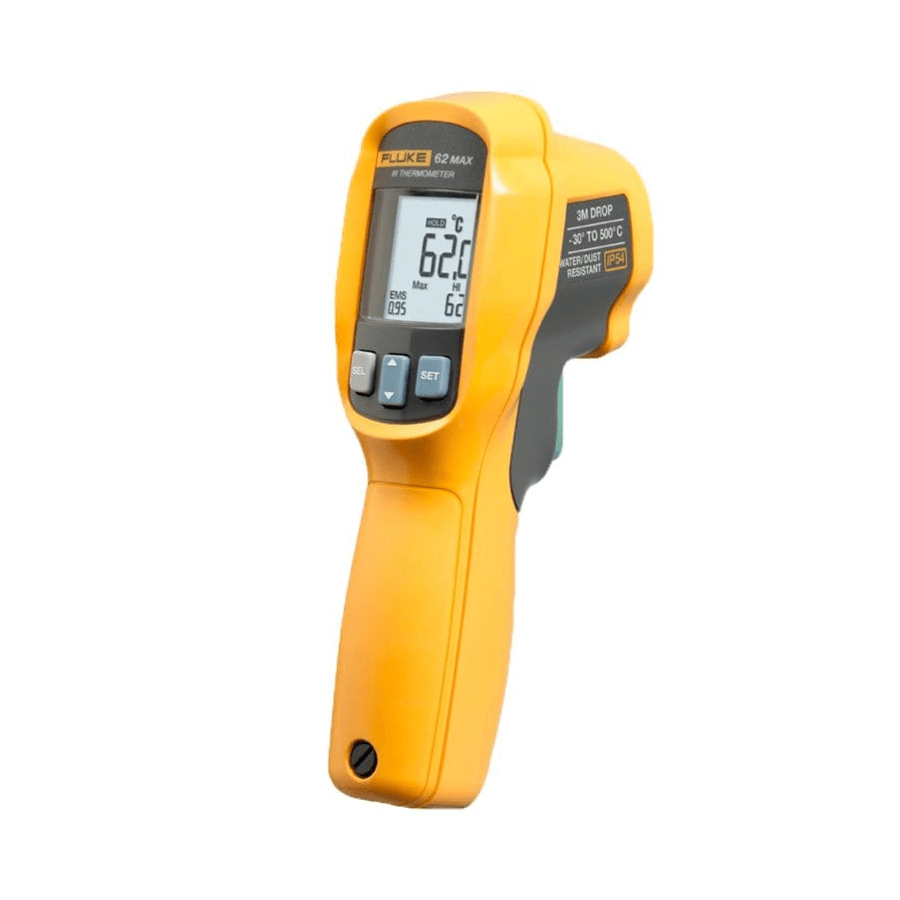

Fluke 62 MAX+ Mini Infrared Thermometer
The Fluke 62 MAX+ is Fluke’s easy to use entry level infra-red thermometer. It is exceptionally versatile and can be used in almost any domestic, commercial or industrial environment. This unit is ideal for those looking for an accurate, affordable solution to non-contact temperature measurement.
The Fluke 62 MAX+ can measure temperatures between -30°C to 650°C, with an accuracy of ±0.5% of reading or <±0.5°C (1°F), whichever is greater. A laser pointer in also included to enable the engineer to accurately measure the target area. Readings are also displayed in under a second on the illuminated, easy to read display. Furthermore, the
Made to last
Designed to withstand everyday use, the Fluke 62 MAX+ is IP 54 rated against dust and moisture ingress, as well as drop tested to a height of 3 meters. Despite it’s ruggedness, the 62 MAX+ weighs only 255g and operates using a single AA battery, providing up to 8 hours use.
More than just temperature measurement.
The Fluke 62 MAX+ includes minimum, maximum, average and difference measurement capabilities. It also features user configurable high and low temperature alarms, allowing the user to quickly identify temperatures outside normal parameters.
Take anywhere, measure anything
The Fluke 62 MAX+ can be used for a vast rang of applications, such as temperature readings from transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents. The Fluke 62 MAX+ thermometer is also a popular choice for temperature measurement of pizza ovens.
Fluke 62 MAX+ specifications
| Temperature range | -30°C to 650°C (-22°F to 1202°F) |
| Accuracy | ±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0 |
| Response time (95%) | < 500 ms (95% of reading) |
| Spectral response | 8 to 14 microns |
| Emissivity | 0.10 to 1.00 |
| Optical Resolution | 12:1 (calculated at 90% energy) |
| Display Resolution | 0.1°C (0.2°F) |
| Repeatability of readings | ±0.5% of reading or <±0.5°C (1°F), whichever is greater |
| Power | AA battery |
| Battery Life | 8 hours with laser and backlight on |
| Weight | 255 g (8.99 oz) |
| Size | 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in) |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F), (without battery) |
| Operating humidity | 10% to 90% RH non-condensing at 30°C (86°F) |
| Operating altitude | 2000 meters above mean sea level |
| Storage altitude | 12,000 meters above mean sea level |
| IP rating | IP 54 per IEC 60529 |
| Drop test | 3 meters |
| Vibration and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
| EMC | EN 61326-1:2006 EN 61326-2:2006 |
| Standards and agency approval | Compliance: EN/IEC 61010-1: 2001 Laser safety: FDA and EN 60825-1 Class II |
What’s included
- Fluke 62 MAX+ Mini Infrared Thermometer
- AA battery
- Instruction manual
