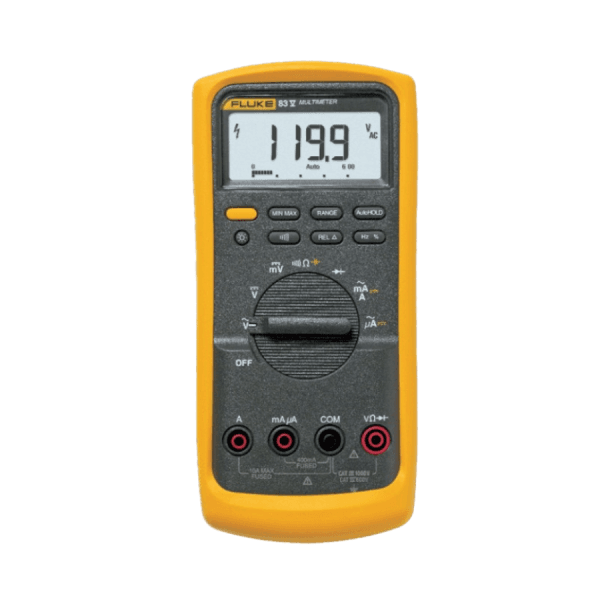

Fluke 83V Industrial Multimeter

Fluke 83V Industrial Multimeter

IMPORTANT RECALL INFORMATION – Previously purchased a Fluke 8x V series multi meter ? Read here.

The Fluke 83V is a rugged yet precise multimeter designed for fast troubleshooting in industrial and commercial environments. It is backed by Fluke’s industrial products limited lifetime warranty.

Designed with everything you need

The large backlit LCD screen provides great visibility of readings, plus the single rib textured rotary dial makes function selection easy, even when wearing PPE.

The Fluke 83V measures AC / DC voltage up to 1000V and current up to 10A (20A for up to 30 seconds). Plus Resistance up to 50MΩ, capacitance up to 9,999µF and frequency up to 200 kHz. Furthermore the 83V features duty cycle, conductance and diode testing.

Use its low pass filter function to measure voltage and frequency accurately on electrically ‘noisy’ equipment like adjustable speed motor drives. Use the peak capture function to detect intermittent problems and transients as fast as 250 micro seconds (µs).

The Input Alert function gives you an audible warning against wrong use of input jacks. Fluke 80 Series multimeters are independently tested for use in CAT IV 600V/CAT III 1000V environments. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.

Key Features

• 6000 counts, 3-3/4 digit
• Measure up to 1000 V ac and dc
• Measure up to 10 A, 20 A for up to 30 seconds
• Frequency to 200 kHz and % duty cycle
• Resistance, continuity and diode test
• 10,000 µF capacitance range for components and motor caps
• Min/Max-Average recording with Min/Max Alert to capture variations automatically
• Peak capture to record transients as fast as 250 µs
• Relative mode to remove test lead interference from low ohms measurements
• Auto and manual ranging for maximum flexibility
• Touch Hold to capture stable readings avoiding noisy signals
• Large display digits and two-level bright white backlight for increased visibility
• Analog bargraph for fast changing or unstable signals
• Input Alert provides audible warning against wrong use of input jacks
• Improved selectable sleep mode for long battery life
• Access door for fast battery changes without breaking the calibration seal
• Classic design with new removable holster with built in test lead and probe storage

What’s Included

• Fluke 83V
• TL75 Test Leads
• AC72 Alligator Clips
• Holster
• 9V battery (installed)
• Getting Started Manual
• CD with detailed manual
