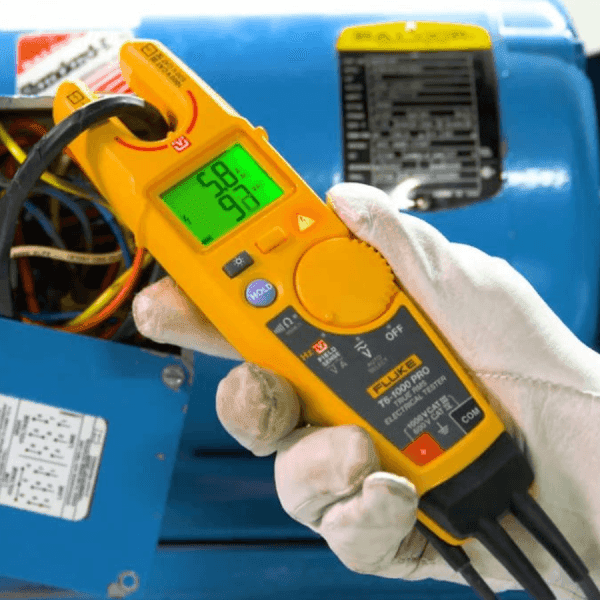

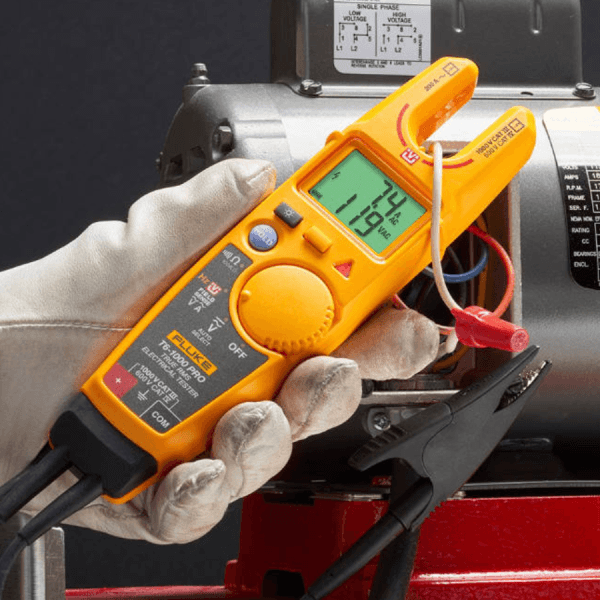

Fluke T6-1000 Pro Electrical Tester
The Fluke T6-1000 tester has been designed by Fluke to be the ideal ‘all in one’ electrical voltage tester for troubleshooting, maintenance and service. It features True RMS measurement and allows the user to take current and voltage measurements without test leads* using Fluke’s FieldSense Technology. Furthermore, voltage and current measurements appear on screen simultaneously.
What is Fluke FieldSense technology?
The T6-1000 measures a voltage signal in reference to earth via the hand of the user. A capacitive sensor safely accomplishes this, ensuring no electrical contact with live voltage or galvanic connection.
The sensor area of the tester should be located close to the measured signal on a live conductor. In this case the hand and body of the user provide a connection to earth. The electrical field (voltage) and the magnetic field (current) is picked up.
The benefits of Fluke FieldSense technology
Without the need to make electrical contact to make measurements, The Fluke T6-1000, with FieldSense technology, makes it much easier to take measurements in crowded junction boxes or along conductors with hard to reach or even inaccessible endpoints. This saves time, minimises the potential for errors and greatly reduces the possibility of arc flash.
Fluke T6-600 vs T6-1000
| T6-600 | T6-1000 | |
| Function | Range | Range |
| FieldSense ac voltage | 600 V | 1000 V |
| FieldSense ac current | 200.0 A | 200.0 A |
| FieldSense frequency (Hz) | N/A | 45 Hz – 66 Hz |
| Volts ac | 600 V | 1000 V |
| Volts dc | 600 V | 1000 V |
| Resistance | 2000 Ω | 2000 Ω 20.00 kΩ 100.0 kΩ |
| Safety | 600 V CAT III | 1000 V CAT III 600 V CAT IV |
Key Features
- Simultaneous voltage and current measurements displayed on screen
- Voltage detection range: 1 – 1000V AC
- Current detection range: 0 to 200A AC
- Accurate and reliable True RMS voltage and current measurement
- Resistance measurement 1Ω to 100kΩ
- Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
- HOLD button temporarily freezes the reading for easy viewing
- Backlit display for good visibility in poor lighting
What’s Included
- Fluke T6-1000 Pro Electrical Tester
- Attached test lead set with removable 4mm probe caps
- Black AC285 SureGrip™ alligator clip
- H-T6 holster
- User documentation
