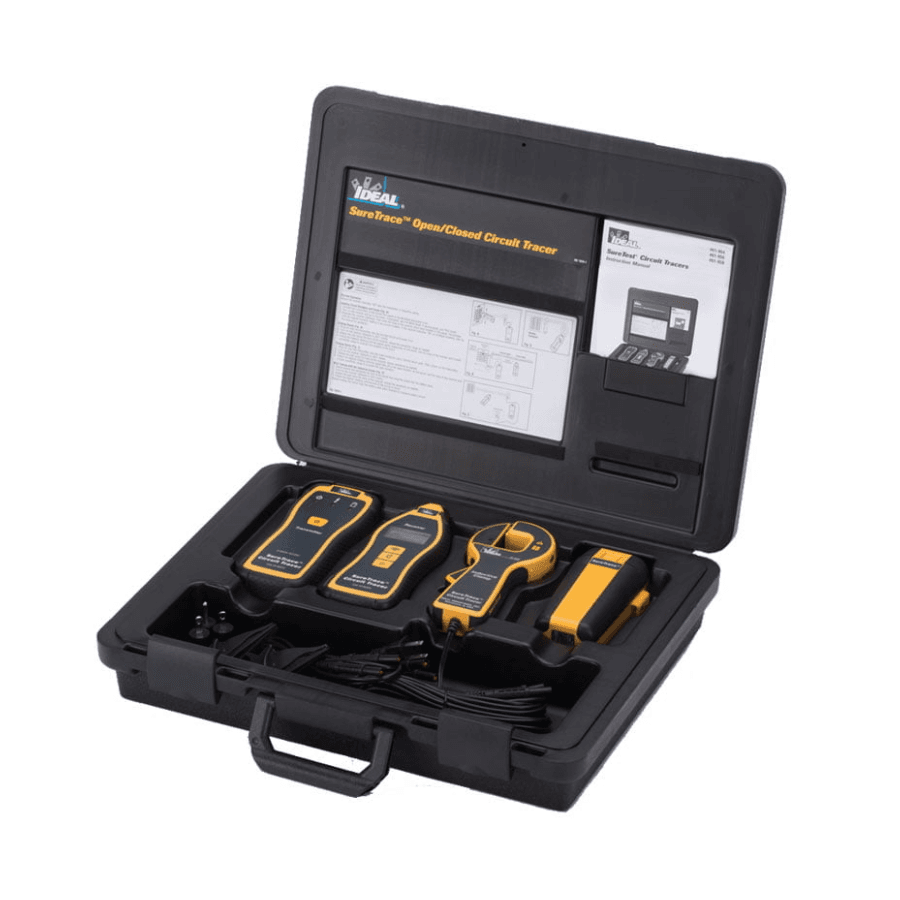

Ideal 61-959 SureTrace Circuit Tracer

Ideal 61-959 SureTrace Circuit Tracer

Performance

Four defined ranges of the new Circuit Tracers let you quickly select the proper sensitivity for your specific job. And, with easy-to-replace AA batteries, the tracer provides four times the tracing power of conventional 9-volt circuit tracers on the market.

Ease-of-Use

No circuit tracer has ever been so user friendly. Super-bright models provide a numeric value between 0 and 99 and a variable pitch/tone audible indication. In addition, the peak detector provides instantaneous signal strength feedback. SureTrace™ features the only rotating display in the industry. Regardless of what position you put the receiver in, the display will orient itself so that the reading stays upright.

Safety

Every safeguard has been taken to make the Circuit Tracers durable and safe for the long term. Additionally, a high-energy fuse and CAT III 600V design give you the confidence to go about the job without worrying about equipment safety.

Features:

• Numeric value and audible signal provide quick and easy-to-understand tracing feedback
• Receiver display rotates automatically for easy viewing
• “0-99” display of signal strength
• Audible intensifies in tone/pitch
• Works on energized or de-energized circuits (0-600VAC/DC)
• Four modes of sensitivity
• Displays % battery life remaining
• Peak detection bar graph
• Identifies breakers/fuses with CertainCircuit™ detection
• Pinpoints opens and shorts
• Traces wires behind walls
• 2-year warranty

What’s Included?

TR-955 Transmitter Tests energized circuits up to 600V AC/DC

• Tests de-energized circuits
• Injects a powerful signal into the circuit
• Can be used on GFCI protected circuits
• Indicates presence of AC/DC voltage
• Low battery indicator
• Supplied with four AA batteries

RC-959 Receiver

• Super bright OLED display
• Rotating display (in 90º increments)
• Displays 0-99 numeric signal strength
• Four modes of sensitivity
• CertainCircuit™ detection
• Peak detecting bar graph
• Audible indication (pitch/tone)
• Displays battery life remaining
• Supplied with three AA batteries

IC-958 Inductive Clamp & BP-958 Battery Pack

• Induces a signal onto the circuit
• 1 in. jaw opening/6 ft. cord
• Powered solely by a separate battery pack (Supplied with 8 C-cell batteries)
• Battery pack has a magnetic strap for hanging in panels
• TL-956 Tracer Test Lead Set
• C-957 Hard Carrying Case
• Batteries
• Instruction Manual
