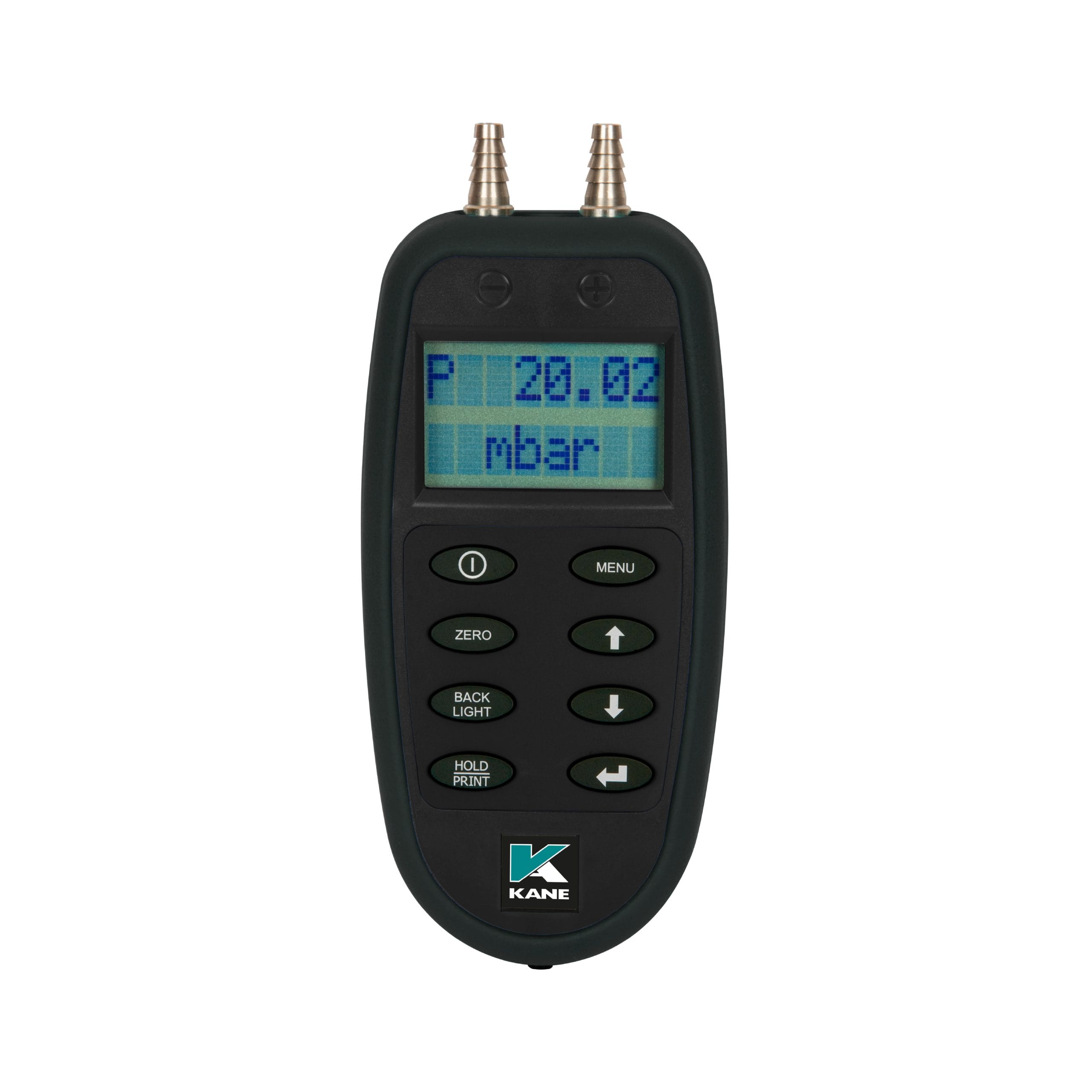

Kane 3500 Differential Manometer

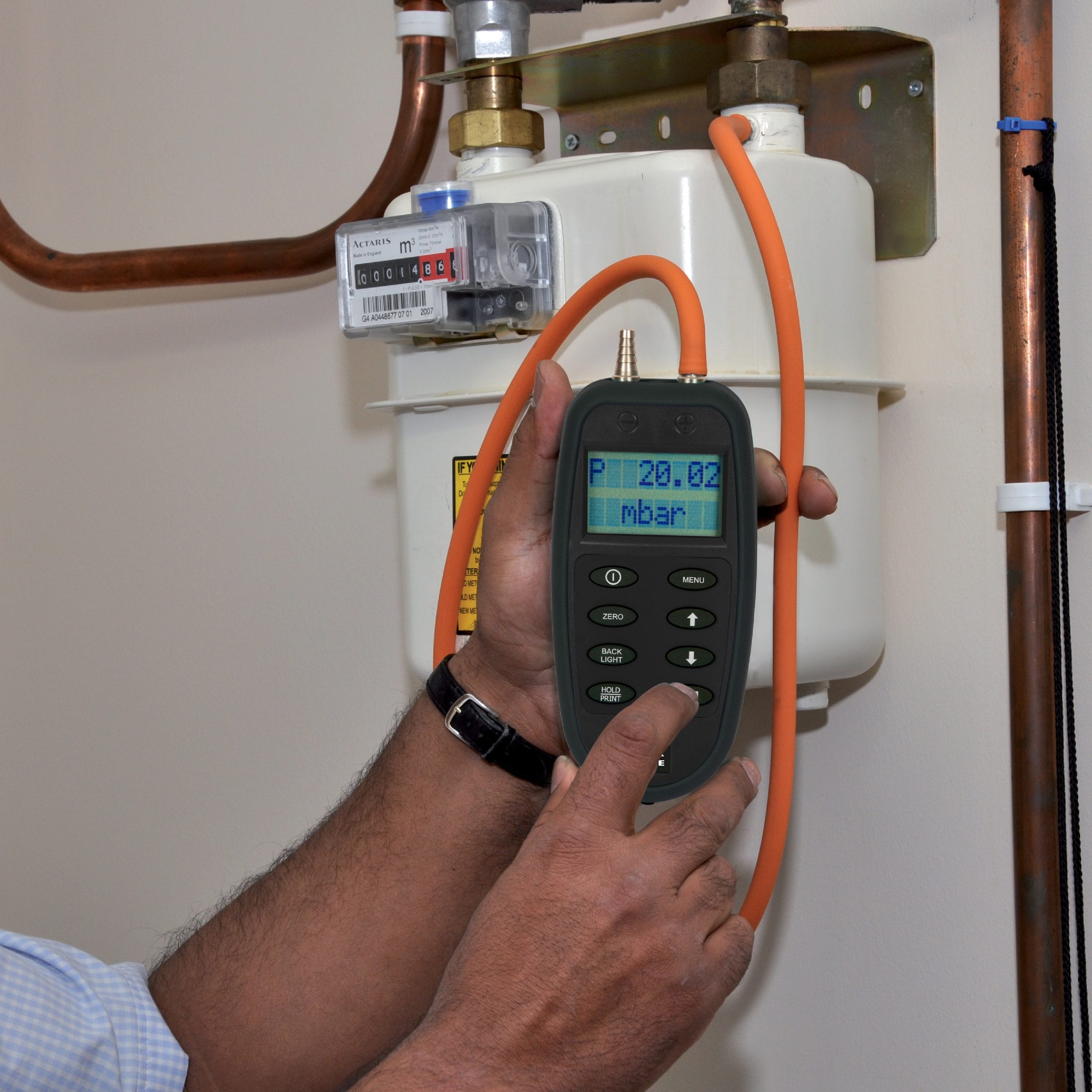

The Kane 3500 Differential Manometer, an effective tool for measuring pressure ranges between 0 to ±80mbar (±1psi), is perfectly suited for tasks like flue draught measurement and assessing differential pressure in gas/air ratio valves commonly used in high-efficiency boilers. It delivers highly accurate readings with a top precision of ±0.005mbar and can fine-tune measurements to 0.001mbar, thanks to its high/low resolution switching feature. Additionally, this manometer can conduct automated tightness tests, and its temperature compensation feature guarantees reliable accuracy under various environmental conditions.
The 3500-1 Manometer features a clear digital display, showcasing readings in various units such as mbar, Pa, hPa, kPa, mmHg, mmH2O, inH2O, and PSI. It includes functions for data hold and recording minimum/maximum values. The device also incorporates a smoothing function to ensure that temporary fluctuations do not impact the final readings. Users can store up to 250 readings in the meter’s internal memory, both automatically and manually. For added convenience, it supports an optional KIRMP wireless printer, allowing for immediate onsite printouts of readings. Additionally, the Kane Wireless Printer App enables users to send data directly to their smartphones. The meter’s operation is straightforward, with intuitive menus and clearly marked push buttons for ease of use.
- Temperature compensated for superior accuracy
- Resolution to 0.1 pascal / 0.001 mbar
- Switchable between high and low resolution
- Switchable between: mbar, Pa, hPa, kPa, mmHg, mmH2O, inH2O and PSI
- Data hold and max/min recording
- Printouts include date/time and user details
- Automated Tightness Testing
- High/low resolution and smoothing features
- Optional Wireless Upgrade
- Send printout data to your mobile device using FREE Kane printer app
