Kane 460 Flue Gas Analyser with CPA Kit 2
Kane 460 Flue Gas Analyser with CPA Kit 2 combines combustion analysis, pressure measurement, temperature testing and gas leak detection in a portable kit for HVACR and heating work. It can be used to install, commission and service boilers, heat pumps, air conditioning and refrigeration systems. The analyser also supports domestic and commercial heating and water system testing, helping engineers carry out several common checks with one kit.
Combustion measurements include oxygen from 0-21% and carbon monoxide from 0-10,000 ppm with H2 compensation and over-range protection. Kane 460 Flue Gas Analyser with CPA Kit 2 also calculates carbon dioxide, excess air, CO/CO2 ratio and combustion efficiency, while its differential pressure capability supports flue draught, system and tightness tests. Refrigeration functions include subcool and superheat calculations, and the analyser can detect more than 40 refrigerants including R22, R32, R134a, R290 and R410A.

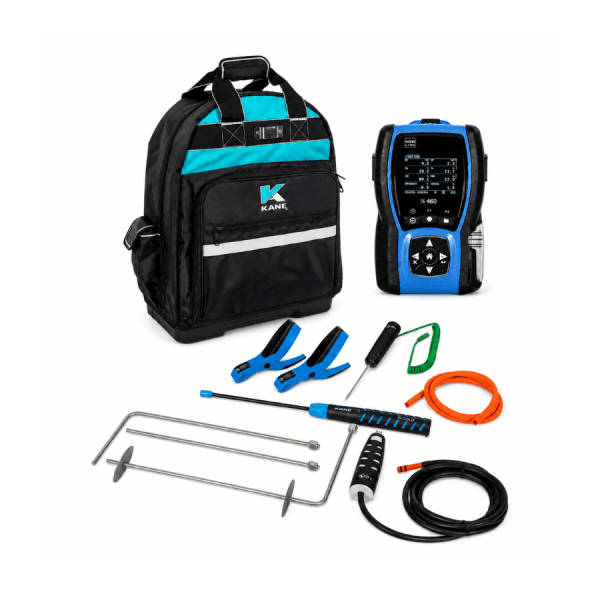

Wireless Kane Link connectivity allows the analyser to work alongside compatible Kane instruments, while the Kane Live app can display results on Android and iOS devices, log test locations by GPS and add personal notes. Results can also be emailed or recorded as CSV files for easier reporting. Kane 460 Flue Gas Analyser with CPA Kit 2 includes wireless clamp-on probes, a general-purpose temperature probe, a combustible gas leak detector, ASP3 cooker, fire and grill appliance testing probes and a Kane backpack for organised transport.
Key Benefits
- Combines combustion, pressure, temperature and refrigeration testing in one portable kit.
- Supports boiler, heat pump, air conditioning and refrigeration installation, commissioning and servicing.
- Wireless clamp-on probes allow temperature testing without relying only on wired accessories.
- Kane Link connectivity allows compatible Kane instruments to be used alongside the analyser.
- Kane Live app support provides remote result viewing, CSV logging, email reporting, GPS test locations and personal notes.
- Built-in pressure measurement supports flue draught, system and tightness testing.
- ASP3 probes extend the kit to cooker, gas fire, grill and general appliance sampling tasks.
- Kane-GLD combustible gas leak detector helps locate combustible gases with sensitivity below 50 ppm for methane.
- Hydrophobic water trap and protective rubber sleeve help protect the analyser during site use.
- Included Kane backpack keeps the analyser and kit accessories together for storage and transport.
Common Applications
Kane 460 Flue Gas Analyser with CPA Kit 2 is suitable for a range of testing, maintenance and inspection tasks, including:
- Boiler installation, commissioning and servicing
- Heat pump installation and servicing
- Air conditioning and refrigeration system testing
- Flue draught, system and tightness tests
- Combustion analysis and combustion efficiency calculation
- Boiler sweep and CO migration testing
- Indoor air quality and ventilation measurement
- Refrigeration subcool and superheat testing
- Cooker, gas fire and grill appliance sampling
- Combustible gas leak detection
Why Choose This Model?
The Kane 460 CPA Kit 2 adds the ASP3 oven, grill and fire probes to the equipment supplied with the Kane 460 Pro Kit 2, while retaining the gas leak detector, general-purpose temperature probe and two wireless temperature clamps. This makes it a practical choice where combustion, HVACR and cooker, fire or grill appliance testing are all required.
