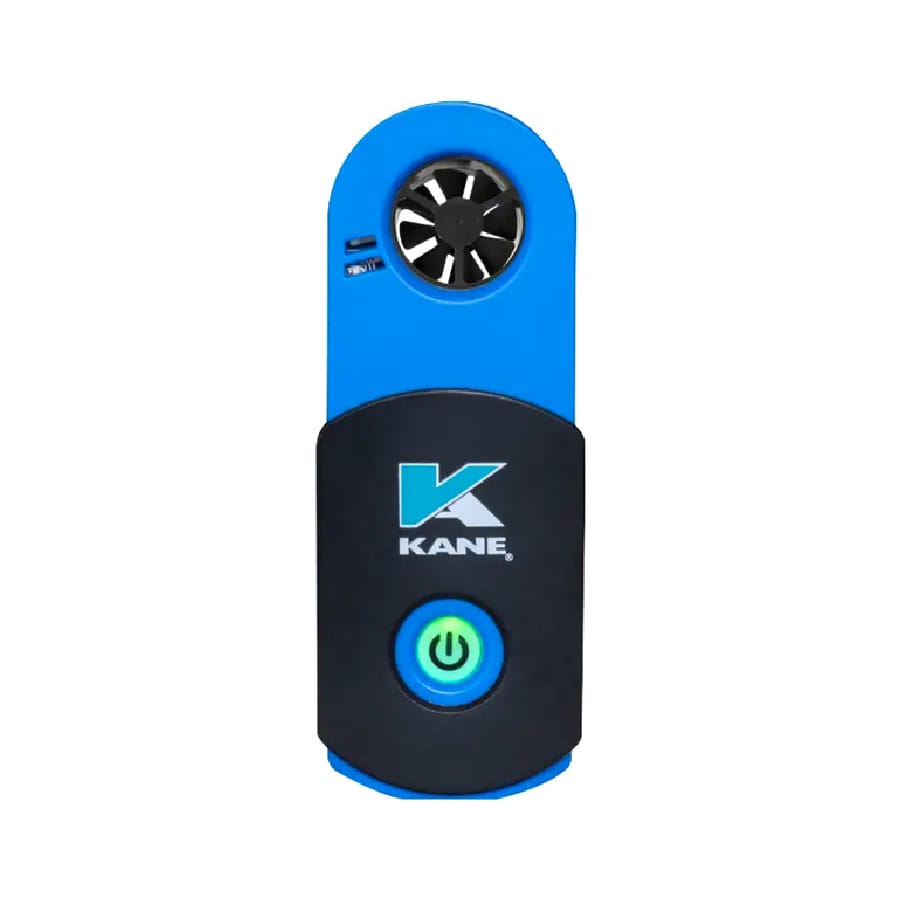

Kane DTHA2 Wireless Airflow, Temperature & Humidity Meter
The Kane DTHA2 Wireless Airflow, Temperature & Humidity Meter gives HVAC engineers and maintenance teams a simple way to measure airflow, temperature and relative humidity. It sends readings wirelessly to compatible KANE LINK enabled flue gas analysers, helping users work more efficiently. As a result, testing can be completed without the need for wired connections.
Designed for air conditioning systems and kitchen extraction fans, the Kane DTHA2 Wireless Airflow, Temperature & Humidity Meter delivers reliable measurements across a wide operating range. Users can view live readings directly on supported analysers and share results with connected devices. In addition, the wireless design helps improve access when measuring difficult locations.
Wireless Connectivity and Data Handling

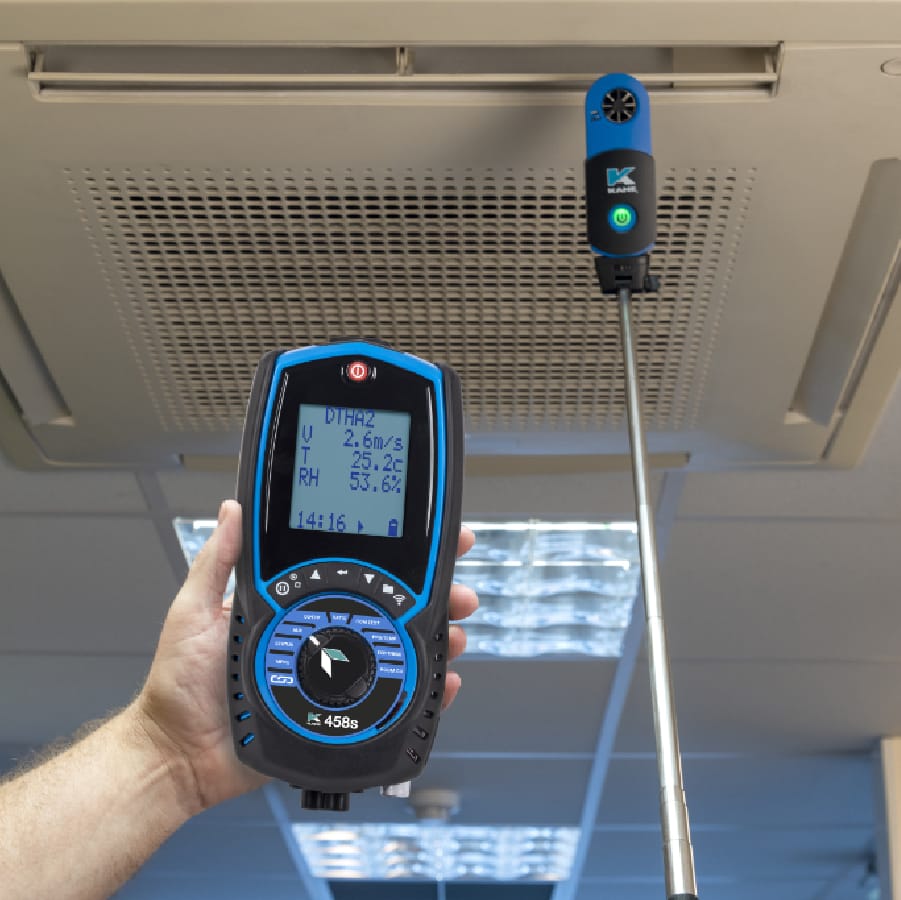

The Kane DTHA2 Wireless Airflow, Temperature & Humidity Meter wirelessly transmits measurement data over distances of up to 150 metres. Users can view live readings on compatible analysers, including the Kane 458s, 958 and 988. They can also save and send results directly to printers or smartphones, making reporting and record keeping quick and efficient.

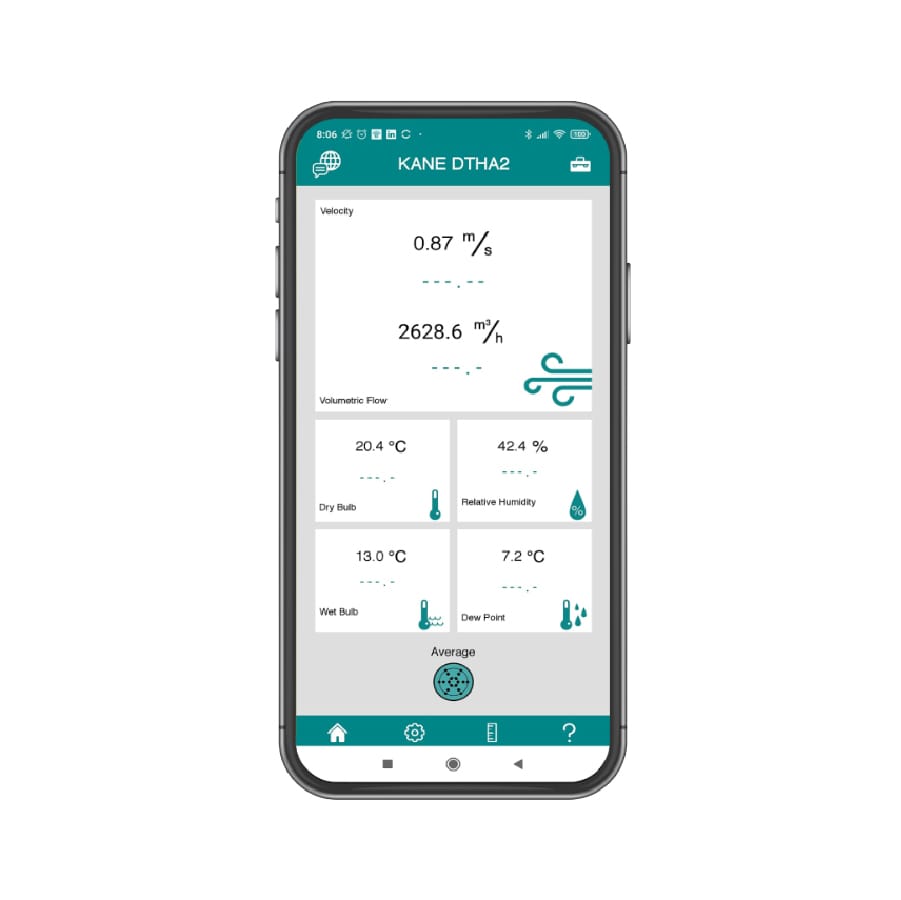

The free iOS and Android application adds extra functionality by calculating outlet volume flow using duct dimensions and geometry. Consequently, users can complete airflow assessments more quickly while reducing manual calculations. Instant On technology also helps speed up operation when measurements are required.
Designed for HVAC Applications
Airflow measurement ranges from 1.1 to 20.0 m/s, making the unit suitable for ventilation and extraction testing. Temperature measurement covers conditions from -20°C to +50°C, while relative humidity readings extend from 0.1% to 99.9% RH. The meter also supports dew point, dry bulb and wet bulb measurements for wider environmental analysis.
Two set types are available for different application requirements. Users can select the standard Kane DTHA2 Wireless Airflow, Temperature & Humidity Meter configuration or choose a set with the optional extender probe compatibility for improved reach. This flexibility helps engineers adapt the instrument to a wider range of testing environments.
Key Features
- Wireless operation for airflow, temperature and humidity testing
- Compatible with KANE LINK enabled analysers
- Works with Kane 458s flue gas analyser
- Works with Kane 958 flue gas analyser
- Works with Kane 988 flue gas analyser
- Displays live readings on connected analysers
- Supports remote data transmission up to 150 metres
- Sends results to printers and smartphones
- Free iOS application available
- Free Android application available
- Calculates outlet volume flow through the mobile app
- Instant On technology for rapid operation
- Suitable for air conditioning unit testing
- Suitable for kitchen extraction fan testing
- Optional extender probe available
- Two set types available to suit different requirements
Technical Specifications
| Manufacturer | Kane International Ltd |
| Product name | Kane DTHA2 Wireless Airflow, Temperature & Humidity Meter |
| Manufacturer part code | DTHA2 |
| Instrument type | Wireless airflow, temperature and humidity meter |
| Connectivity | KANE LINK wireless communication |
| Compatible analysers | Kane 458s, 958 and 988 |
| Airflow measurement range | 1.1 to 20.0 m/s |
| Temperature measurement range | -20°C to +50°C |
| Alternative temperature specification | -15°C to +50°C |
| Relative humidity range | 0.1% RH to 99.9% RH |
| Dew point measurement | Yes |
| Dry bulb measurement | Yes |
| Wet bulb measurement | Yes |
| Maximum wireless range | 150 m (50 ft) |
| Mobile app support | iOS and Android |
| Volume flow calculation | Via app using dimensions and geometry |
| Suitable applications | HVAC systems and kitchen extraction fans |
| Instant On technology | Yes |
| Optional extender probe | Available |
| Optional extender probe part number | 20128 |
| Real-time display | On compatible analysers |
| Data output | Printer and smartphone compatible |
| Available set types | Standard set and extender probe compatible set |
| Warranty | Not specified |
Document Downloads
What’s Included
- Kane DTHA2 Wireless Airflow, Temperature & Humidity Meter
- Batteries
