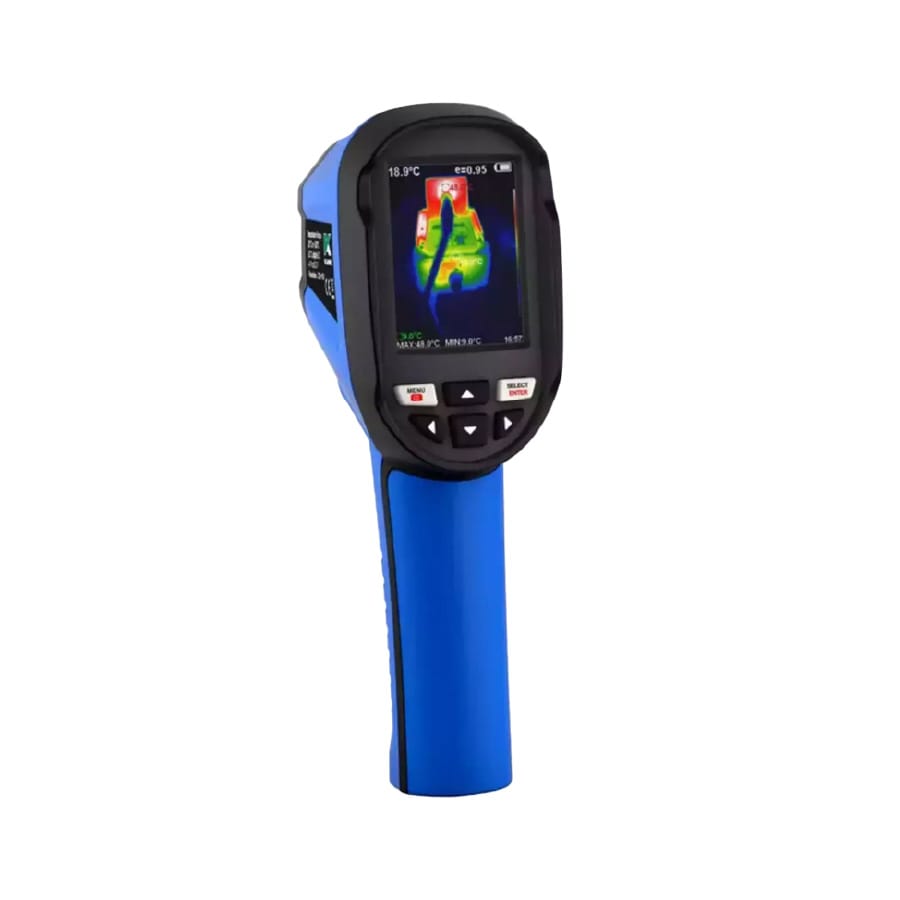

Kane TCAM Thermal Imaging Camera
The Kane TCAM Thermal Imaging Camera helps engineers and technicians find temperature issues quickly and accurately. It combines real-time thermal imaging with surface temperature measurement in one compact handheld unit. As a result, users can identify faults faster and improve inspection efficiency in a wide range of applications.
Designed for daily professional use, the Kane TCAM Thermal Imaging Camera offers a temperature measurement range from -20°C to 300°C. In addition, it delivers an infrared resolution of 220 x 160 pixels and detects temperature differences as small as 0.07°C. The large colour display provides a clear thermal image that makes hotspots easy to locate.
Built for Fast Fault Finding
Whether working on heating systems, plumbing installations or vehicle diagnostics, this thermal camera helps locate hidden problems without contact. Furthermore, the 9Hz frame rate provides smooth thermal image updates during inspections. Fixed focus operation also keeps measurements simple and consistent.
Users can adjust emissivity settings from 0.01 to 1.00 for improved measurement accuracy across different materials. Four dedicated surface modes support coarse, matte, semi-shiny and shiny surfaces. Consequently, the camera adapts easily to a variety of inspection environments.
Practical Storage and Operation
The Kane TCAM Thermal Imaging Camera stores up to 20,000 thermal images in its internal memory. Data can be extracted through USB, while the integrated storage system supports efficient record keeping. This makes it suitable for reporting, maintenance records and condition monitoring tasks.
A rechargeable battery provides approximately two to three hours of continuous operation under normal conditions. Five selectable colour palettes help improve image contrast and temperature interpretation. Two set options are available, allowing users to select the package that best suits their requirements.
Key Features
- Combines surface temperature measurement and thermal imaging
- Compact and lightweight handheld design
- Large colour display with on-screen cursor
- Quick point-and-shoot operation

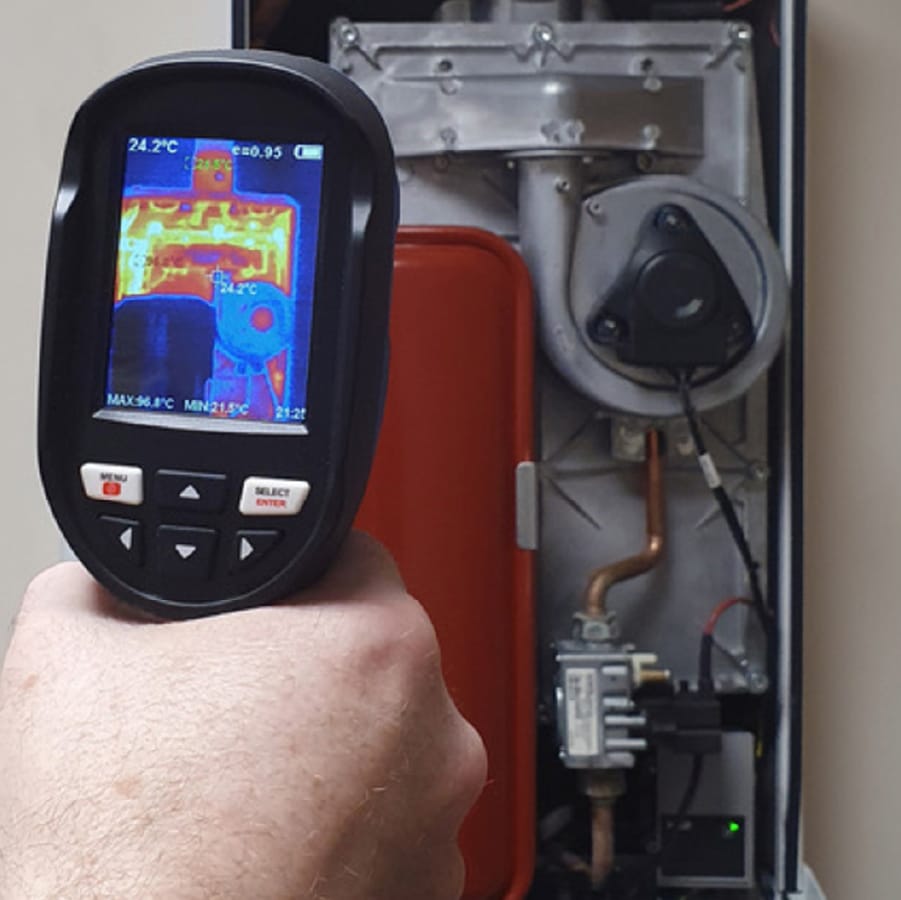

- Suitable for plumbing and heating inspections
- Ideal for energy auditing applications
- Supports automotive diagnostic work

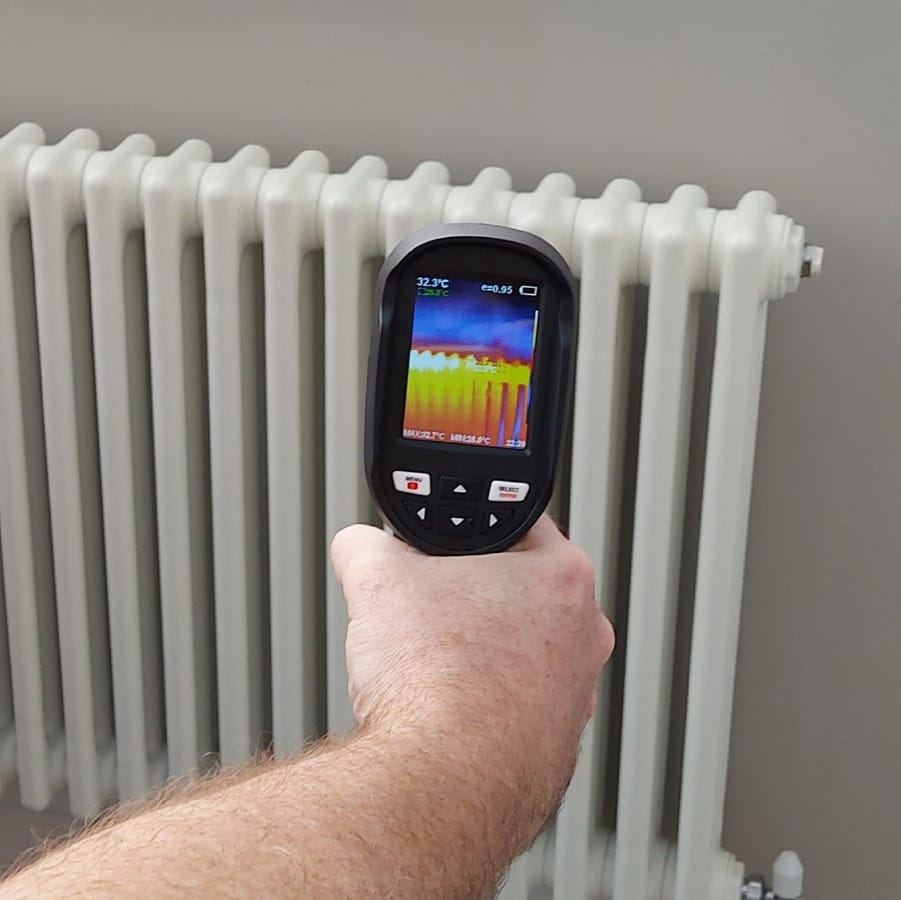

- Helps identify central heating leaks
- Assists with locating uneven heat distribution
- Detects overheating wiring and components
- Five thermal image colour palette options
- Internal image storage for inspection records
- USB image extraction capability
- Rechargeable battery operation
- Available in two different set configurations
Technical Specifications
| Product | Kane TCAM Thermal Imaging Camera |
| Manufacturer | Kane |
| Manufacturer part code | KANE-TCAM |
| Camera type | Thermal imaging camera |
| Infrared resolution | 220 x 160 pixels |
| Visible image resolution | 35,200 pixels |
| LCD resolution | 320 x 240 pixels |
| Temperature measurement range | -20°C to 300°C |
| Measurement accuracy | ±2°C or ±2% |
| Thermal sensitivity | 0.07°C |
| Field of view | 35° x 26° |
| Frame rate | 9Hz |
| Focus type | Fixed focus |
| Minimum focus distance | 15cm |
| Emissivity adjustment | 0.01 to 1.00 |
| Surface measurement modes | Coarse, matte, semi-shiny and shiny |
| Colour palettes | Rainbow, Iron Oxide Red, Cold Colour, White Heat and Black Heat |
| Image storage capacity | Up to 20,000 images |
| Data transfer | USB extraction |
| Storage | 3GB SD card storage |
| Battery type | Rechargeable |
| Battery life | 2 to 3 hours continuous operation |
| Typical applications | Plumbing, heating, energy auditing, refrigeration and automotive diagnostics |
| Warranty | Not specified |
Document Downloads
What’s Included
- Kane TCAM Thermal Imaging Camera
- Rechargeable battery
- Battery charger
- Carry case
