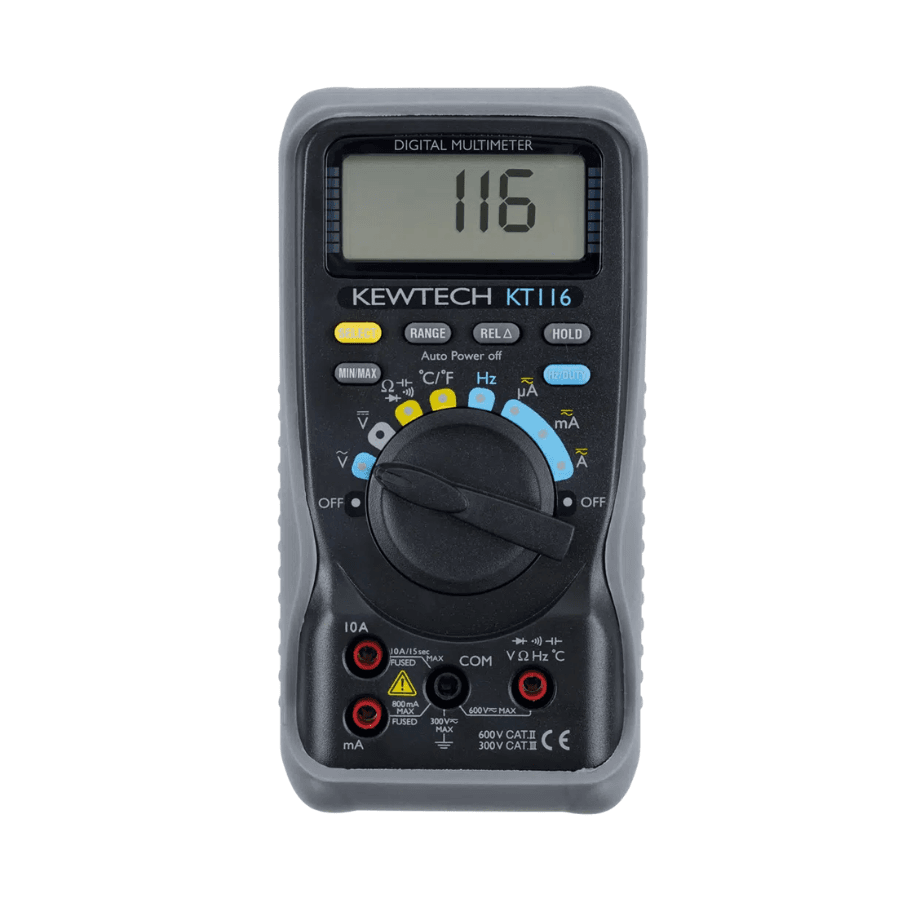

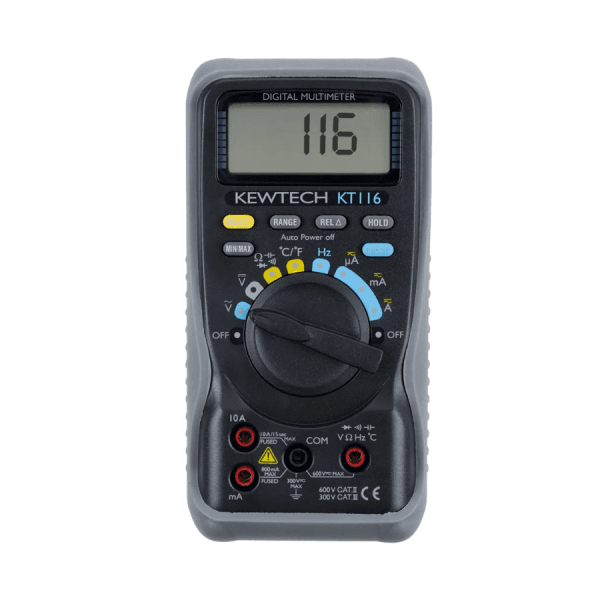

Kewtech KT116 AC/DC Digital Multimeter
Kewtech KT116 AC/DC Digital Multimeter is a contractor-orientated digital multimeter for electrical measurement and testing. It measures both AC and DC voltage up to 600V and AC and DC current up to 10A. A supplied K-type temperature probe also allows temperature measurement alongside the main electrical test functions.
A wide range of functions helps cover routine checks with one instrument. Users can measure resistance, capacitance and frequency, check continuity and diodes, and measure duty cycle. Auto-ranging supports straightforward operation, while manual ranging is also available when direct range selection is preferred.
Kewtech KT116 AC/DC Digital Multimeter also provides MIN/MAX memory, data hold, relative measurement and a bar graph indication. Its sleep function helps preserve the batteries when the meter is left unused. Safety information supplied for the meter includes CAT III 300V, CAT II 600V, IEC 61010-1, IEC 61010-031 and IEC 61326 compliance.
Key Benefits
- Measures AC and DC voltage and current with one meter.
- Supplied K-type probe adds temperature measurement without needing a separate meter.
- Auto-ranging can reduce the need for manual range selection during routine tests.
- Manual ranging remains available when a specific measurement range is required.
- MIN/MAX memory helps capture changing values during continuous testing.
- Data hold keeps a displayed reading available for easier checking and recording.
- Continuity buzzer and diode test functions support quick circuit and component checks.
- Sleep mode helps preserve battery power when the instrument is not being used.
- Bar graph indication gives an additional visual reference alongside the digital display.
Common Applications
Kewtech KT116 AC/DC Digital Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:
- AC voltage measurement up to 600V.
- DC voltage measurement up to 600V.
- AC current measurement up to 10A.
- DC current measurement up to 10A.
- Resistance and continuity testing.
- Diode and capacitance checks.
- Frequency and duty cycle measurement.
- Temperature measurement using the supplied K-type probe.
- Continuous testing using the MIN/MAX memory function.
Why Choose This Model?
No alternative models were supplied for a direct model-to-model comparison. The Kewtech KT116 combines AC/DC voltage and current measurement, temperature measurement with an included K-type probe, auto and manual ranging, MIN/MAX memory, data hold and several additional test functions in one instrument.
