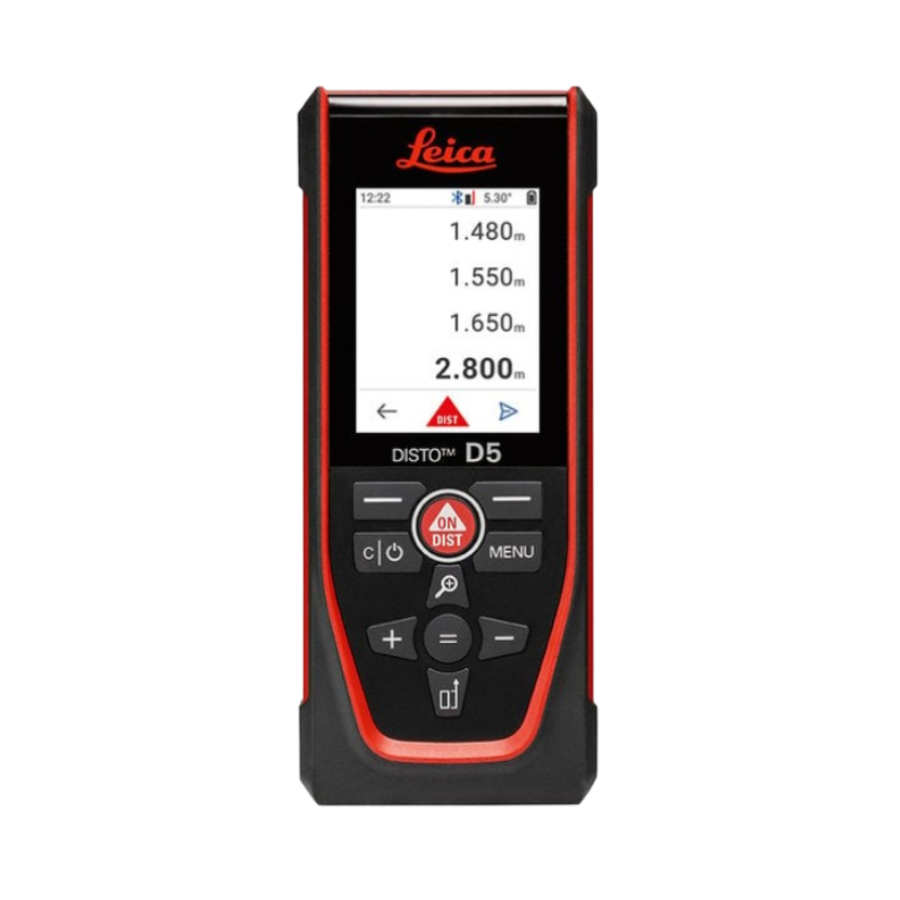

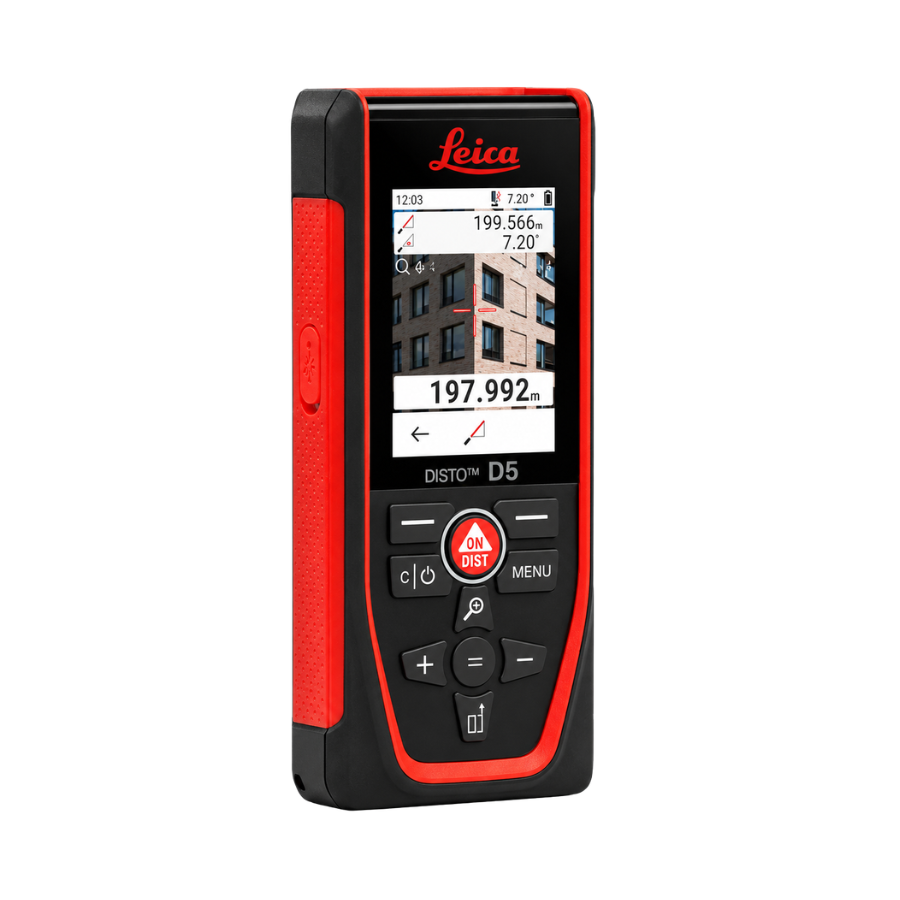

Leica Disto D5 R Laser Distance Meter
The Leica Disto D5 R Laser Distance Meter delivers precise distance measurements for professional users working indoors and outdoors. Its advanced digital pointfinder makes aiming simple, even when the laser dot is difficult to see in bright conditions. This helps improve accuracy and supports reliable results across a wide range of measuring tasks.
Built for demanding environments, the Leica Disto D5 R Laser Distance Meter offers a measuring range of up to 200 metres and accuracy as high as ±1mm in favourable conditions. Gesture activation allows measurements to be triggered without touching the instrument, helping maintain stability during use. The bright IPS display provides a clear view of targets and measurement data.
Built for Outdoor Measurement
Smart Horizontal Mode enables accurate measurements when obstacles block a direct path to the target. In addition, the instrument supports tilt measurements, height tracking, profile measurements and angle measurements. These functions help users complete complex measuring jobs with a single device.
A digital pointfinder with 4x zoom improves visibility over long distances. Combined with X-Range Power Technology, the unit provides dependable performance in challenging outdoor conditions. The multifunctional end-piece automatically adapts to different measuring positions, reducing setup time and improving consistency.
Connected Workflow and Documentation
Bluetooth Smart V5.0 connectivity allows measurements to be transferred directly to the Leica DISTO Plan App. Users can create sketches, document site conditions and organise project data from a smartphone or tablet. As a result, records can be shared quickly and reviewed later when needed.
Two set options are available to suit different applications. The Leica Disto D5 R Laser Distance Meter can be purchased as a standalone instrument or as part of the DISTO D5 R Pro Pack, which includes a tripod and accessories. A rechargeable Li-ion battery, IP54 protection and robust construction make it suitable for daily professional use.
Key Features
- Measures distances up to 200 metres
- Provides accuracy of ±1mm in favourable conditions
- Digital pointfinder improves target visibility outdoors
- 4x zoom assists long-distance aiming
- Bright 2.4 inch IPS display
- Suitable for indoor and outdoor measurement tasks
- Smart Horizontal Mode measures around obstacles
- Supports height tracking functions
- Supports profile measurements
- Supports angle measurements
- Supports slope measurements
- Gesture activation enables non-contact operation
- Bluetooth Smart V5.0 connectivity
- Works with the Leica DISTO Plan App
- Stores up to 50 measurements
- Multifunctional end-piece with automatic detection
- Rechargeable Li-ion battery
- Available as a standalone unit or D5 R Pro Pack
Technical Specifications
| Manufacturer | Leica |
| Product name | Leica Disto D5 R Laser Distance Meter |
| Manufacturer part code | 950908 |
| Accuracy in favourable conditions | ±1mm / 1/16″ |
| Accuracy in unfavourable conditions | ±2mm / 1/8″ |
| Range in favourable conditions | 0.05m to 200m |
| Range in unfavourable conditions | 0.05m to 120m |
| Smallest unit displayed | 0.1mm / 1/32″ |
| X-Range Power Technology | Yes |
| Laser class | Class 2, 635nm, <1mW |
| Digital pointfinder | Yes |
| Digital pointfinder zoom | 4x zoom |
| Display | 2.4 inch scratch-resistant IPS display |
| Indoor use | Yes |
| Outdoor use | Yes |
| Smart Horizontal Mode | Yes |
| Tilt measuring range | 360° |
| Tilt measuring tolerance | ±0.2° |
| Height tracking | Yes |
| Profile measurement | Yes |
| Angle measurement | Yes |
| Slope measurement | Yes |
| Memory capacity | 50 measurements |
| Laser point diameter | 6mm at 10m, 30mm at 50m, 60mm at 100m |
| Bluetooth version | Bluetooth Smart V5.0 |
| Bluetooth range | Up to 10m |
| App compatibility | Leica DISTO Plan App |
| Keyboard mode | Yes |
| Gesture activation | Yes |
| Multifunctional end-piece | Automatic detection |
| Battery type | Li-ion rechargeable battery |
| Battery capacity | 2,000mAh |
| Battery life | Up to 5,000 measurements or 10 hours operation |
| Automatic laser switch off | After 90 seconds |
| Automatic power switch off | After 180 seconds |
| Protection class | IP54 dust and splash water protected |
| Dimensions (H × D × W) | 144 × 60 × 24mm |
| Dimensions (Imperial) | 5.7 × 2.4 × 0.9in |
| Weight with batteries | 180g / 6.35oz |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -25°C to 70°C |
| Available set types | Standalone unit or DISTO D5 R Pro Pack |
| Warranty | 3 years |
Comparison Table
| DISTO D1 | DISTO D110 | DISTO D2 BT | DISTO X3 | DISTO X4 | DISTO D5 R | |
| Indoor/Outdoor Use | Mainly Indoor Use | Mainly Indoor Use | Mainly Indoor Use | Mainly Indoor Use | Indoor/Outdoor Use | Indoor/Outdoor Use |
| Accuracy/Range | 2mm/40m | 1.5mm/60m | 1.5mm/100m | 1mm/150m | 1mm/150m | 1mm/200m |
| Intelligent Endpiece | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Smart Horizontal | X | X | X | ✓ | ✓ | ✓ |
| Bluetooth | V4.0 Smart | V4.0 Smart | V4.0 Smart | V4.0 Smart | V4.0 Smart | V4.0 Smart |
| Outdoor Pointfinder Camera | X | X | X | X | ✓ | ✓ |
Document Downloads
What’s Included

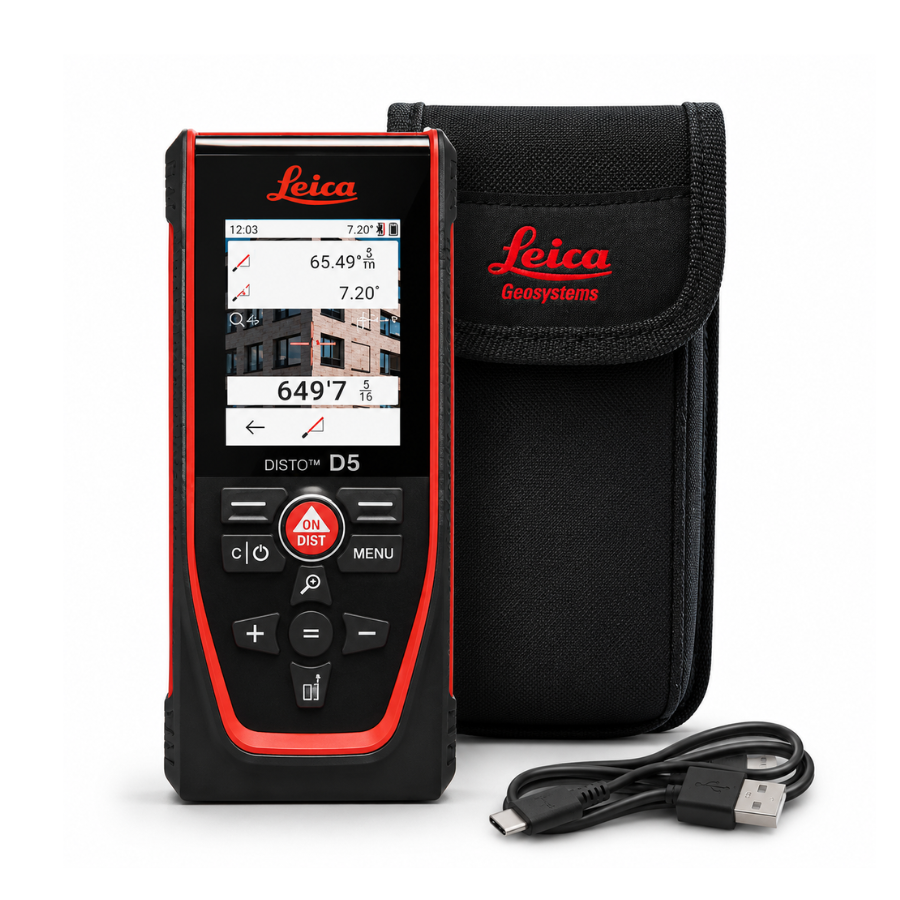

- Leica Disto D5 R Laser Distance Meter
- DISTO pouch
- USB cable
- Hand loop
- Calibration Certificate Silver
- 3 year warranty
