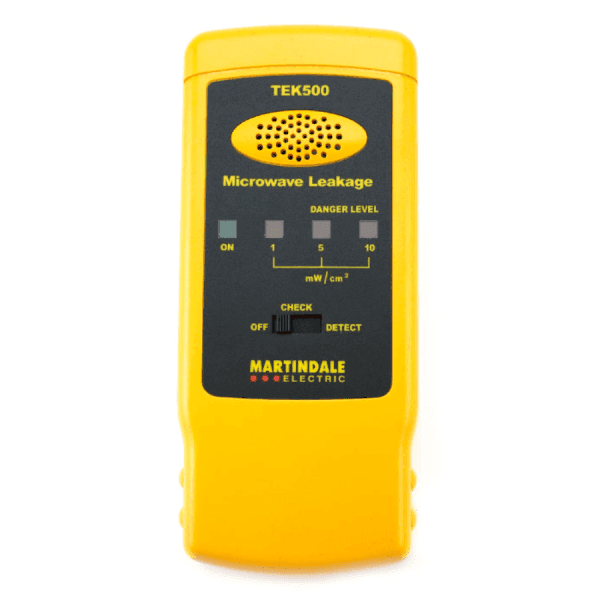

Martindale TEK500 Microwave Leakage Detector
An easy to use, low cost pass/fail microwave leakage detector suitable for commercial and domestic microwave ovens. It is designed to comply with national standards on permitted exposure levels. The Martindale TEK500 includes a self test which simulates a real microwave input to ensure the unit is working correctly at all times. The Martindale TEK500 can test microwave ovens for potentially dangerous leaks with the accessories supplied. Using the measuring beaker and thermometer supplied, microwave power output may be assessed. Indicates at 1, 5, 10mW/cm2. Tests to BS 5175.
Detection Frequency Range
- 2450MHz +/-25MHz
- Sensor Distance

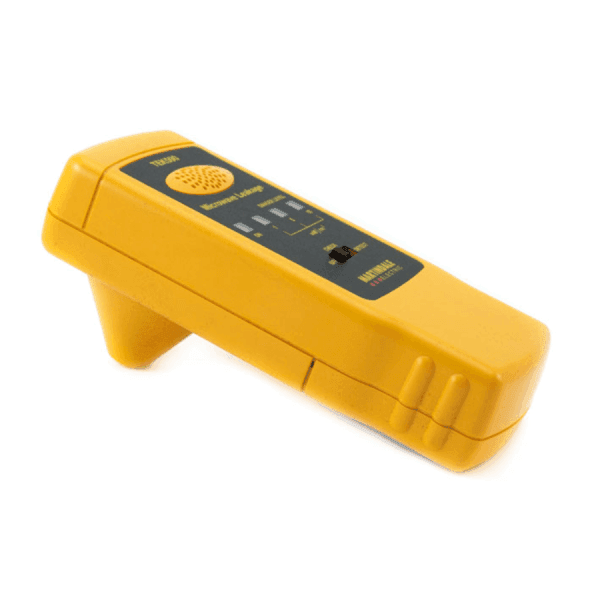

Fixed cone on rear of unit should be in gentle contact for standard 50mm separation
All four LEDs should light and an audible tone will be emitted
On Position
- PASS: Green “sys” LED only (<1mW per cm2
- Green “sys” LED & yellow “1mW” LED (<5mW per cm2
- FAIL: Red “5mW” LED (>5mW per cm2, audible tone
- Red “10mW” LED (>10mW per cm2, audible tone
General Specifications
- Supply: 9V alkaline battery, PP3 / MN1604 or equivalent
- Dimensions: 150 x 64 x 30mm
- Weight: 170g approx

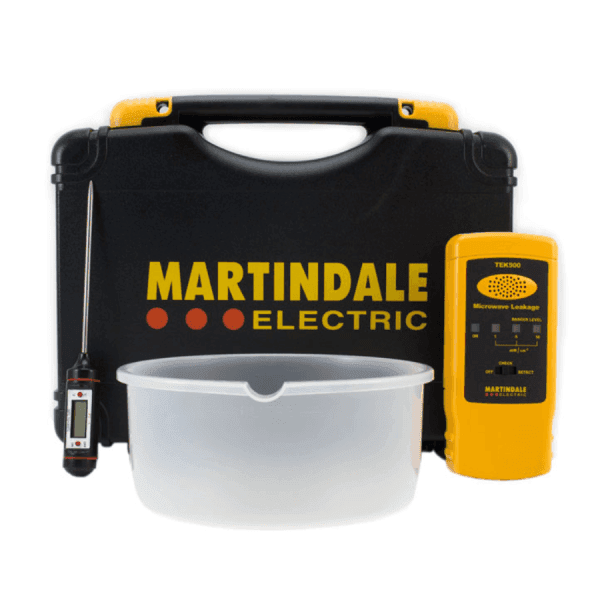

What’s Included?
- Martindale TEK500
- Digital Thermometer
- Water Beaker
- Carry Case
- Battery
- Instruction Manual
