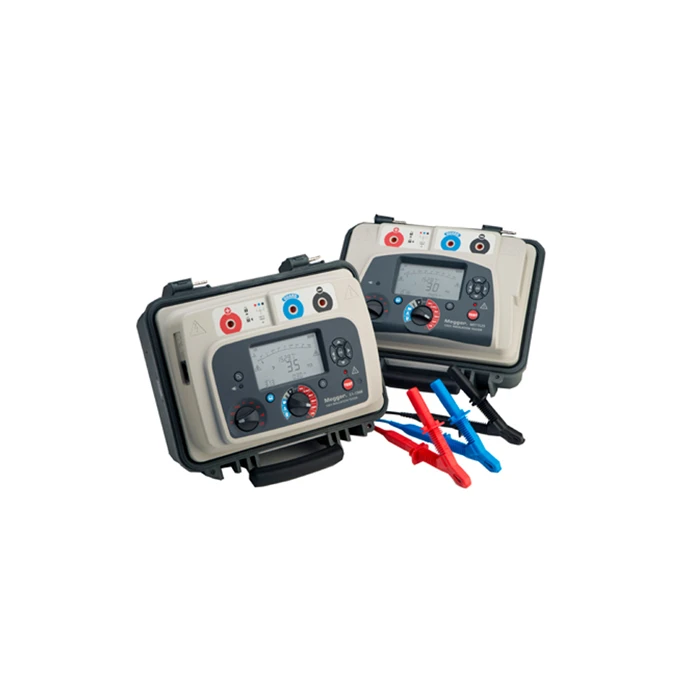

The Megger 1002-892 S1-1568 15kV Diagnostic Insulation Tester empowers engineers who safeguard transmission and generation assets. It applies a stable 1 kV‑15 kV DC source, then reads resistance out to 35 TΩ, so every coil, bushing or cable shows its real condition. Moreover, the short‑circuit current of 6 mA lets you charge large objects quickly yet safely.
High‑Voltage Confidence
You can move from switchyard to substation without losing data, because the sealed dual‑layer case closes to IP65 and withstands knocks and heat. Consequently, four noise‑rejection filters cancel induced currents up to 8 mA, while the bright back‑lit display presents resistance, leakage, voltage, capacitance and elapsed time side‑by‑side. Therefore results stay clear even in arc‑prone bays.
Field‑Ready Connectivity
When distance is vital, an isolated USB port lets a laptop run the test from a safe control room, and PowerDB Lite records live values for later review. At the same time Bluetooth streaming removes trailing leads, so timed IR, PI, DAR, step‑voltage, discharge and ramp routines flow without interruption. As a result, report writing becomes faster and more precise.
You finish the shift knowing every reading is timestamped, because eleven hours of internal memory capture five‑second snapshots until you choose to off‑load them. Finally, the rechargeable battery keeps the instrument active all day, trimming downtime and transport weight.
Key Features
- Fifteen kilovolt output reaches into extra‑high voltage assets
- Thirty‑five tera‑ohm measurement ceiling tracks extreme insulation health
- Four selectable noise filters resist induced currents on long lines
- Remote USB control with beacon simplifies live testing from safe zones
- Bluetooth streaming sends real‑time data direct to PowerDB Lite
- Large back‑lit display shows resistance, leakage and voltage together
- Rechargeable pack supports extended shifts without mains power
- Dual layered housing shrugs off drops and sparks while sealing to IP65
- Step, ramp and timed modes speed diagnostic routines on rotating plant
- Internal memory stores eleven hours of stamped results for audits
- Megger 1002-892 S1-1568 15kV Diagnostic Insulation Tester helps crews meet tight outage windows
