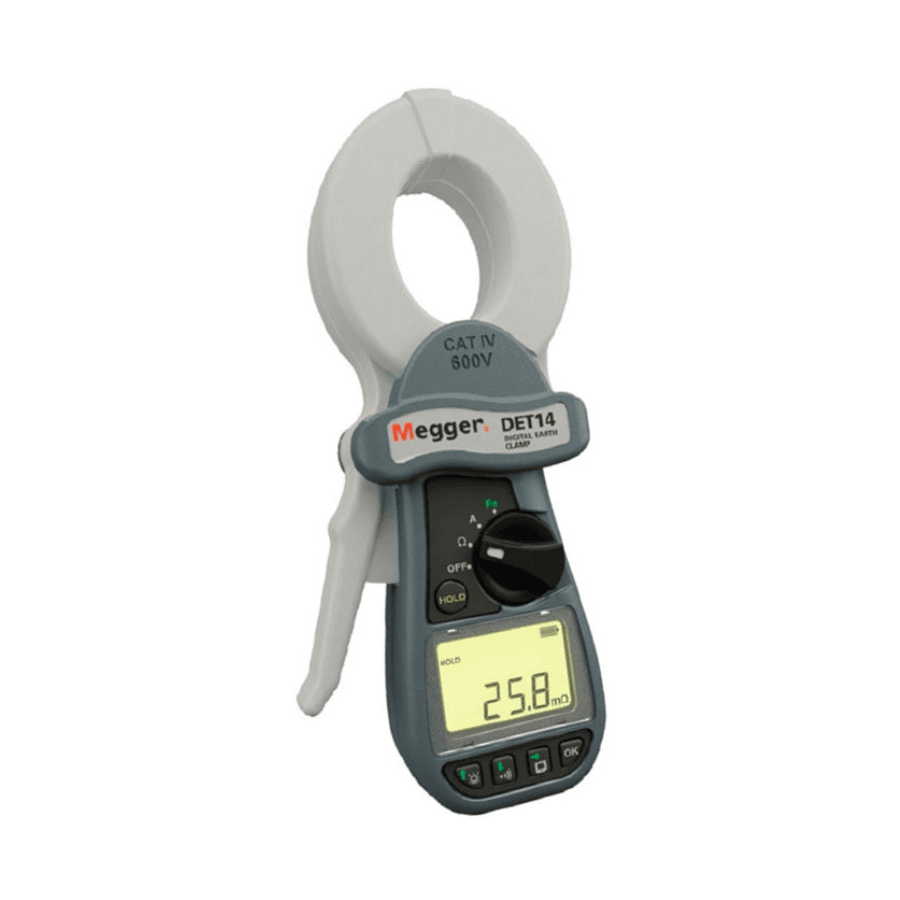

Megger DET14C Clamp On Earth Tester

Megger DET14C Clamp On Earth Tester

The Megger DET14C and DET24C represent a new generation of earth/ground clamp-on resistance testers. These instruments induce a test current into earth systems and measure ground resistance in multi ground installations without needing to disconnect the ground. They offer market leading access, advanced features, simple operation and CAT IV 600 V safety protection.

The DET14C is an advanced clamp meter designed to inject a test current and measure earth resistance in multi-grounded systems without requiring disconnection. This tool simplifies the process of earth resistance testing, traditionally a more complex task requiring system disconnection or the use of auxiliary stakes. It is particularly efficient for multiple loop installations, providing a quick, safe, and single-point measurement solution.

In addition to ground resistance, the Megger DET14C offers True RMS current measurement up to 35 Amps, enabling the monitoring of earth leakage currents and thus providing insights into the overall performance and potential issues within the earth system.

The device features a refined design with flat core ends, promoting consistent measurement results and increased durability by mitigating the common issue of bent interlocking teeth found in other meters. Its cleaning ease further contributes to sustained accuracy over time. A built-in filter function enhances noise resistance for clearer readings.

The ergonomic elliptical clamp of the Megger DET14C is crafted for better cable and strap accessibility, especially in tight spaces, fitting up to 37mm diameter cables and 50mm wide earth tapes. This makes it an ideal instrument for demanding environments like power stations, electrical substations, and communication towers, as well as for assessing earth resistance in buildings, pylons, and RF transmitter sites, and inspecting lightning protection systems.

The Megger DET14C is robust, user-friendly, and equipped with practical features like configurable alarms, auto shutdown, data storage, and automatic self-calibration upon activation, accompanied by a calibration loop. All these functionalities are encased in a solid carrying case for enhanced portability and protection.

Features:

• Elliptical clamp shape improves access to earth cables and straps up to 50 mm
• Low maintenance flat jaw interface
• Measures ground resistance from 0.05 Ω to 1500 Ω
• Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms
• CAT IV 600 V safety rating
• Backlit LCD display

The elliptical shaped head design offers improved access to cables and earth straps in space constrained locations. The clamp head accommodates up to 37 mm diameter cable and 50 mm earth tapes making them suitable for use in power stations, substations, towers and many more facilities.

What’s Included

• Megger DET14C
• Carrying case 1001-715
• Carrying strap (wrist loop) 1001-716
• User guide CD-ROM 1001-198
• Calibration check 1001-498
• Battery AA (Alkaline) (4 required)

Megger Part Code: 1000-761
