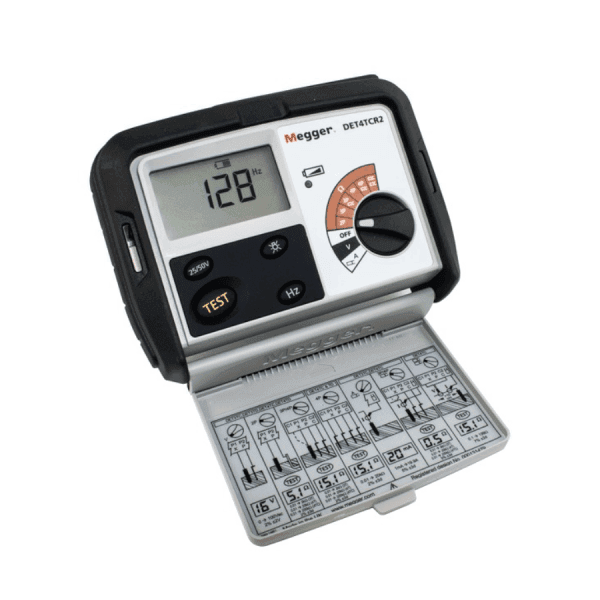

Megger DET4TCR2 Digital Ground Tester

Megger DET4TCR2 Digital Ground Tester

The Megger DET4TCR2 Digital Ground Tester is a robust and advanced tool designed for precise ground testing. Equipped with the ability to perform two-pole, three-pole, and four-pole ground resistance tests, this tester simplifies earth system checking to a remarkable extent. It supports a variety of testing modes, from leakage current to ground noise voltage measurements, making it an essential instrument for rigorous outdoor conditions.

Advanced Features and User-Friendly Interface

Functionality meets convenience in the Megger DET4TCR2. Users will appreciate the large dial navigator and thumb-sized test button, which can be operated easily while wearing gloves. The tester is powered by rechargeable AA batteries and includes an AC/DC adaptor as standard. Additionally, the weatherproof casing rated to IP54 ensures durability and reliability in various environmental conditions.

Precision and Safety Guaranteed

Accuracy is paramount with the Megger DET4TCR2. It features extensive measurement ranges and is capable of negating background voltage noise up to 40V peak to peak. Safety is enhanced with compliance to Cat IV up to 100V under IEC61010-1. Whether you’re performing routine checks or detailed earth resistance assessments, this tester delivers consistent results with ease.

Key Features

• Performs two-pole, three-pole, and four-pole tests
• Large dial navigator for easy operation
• Thumb-sized test button for use with gloves
• Weatherproof to IP54
• Backlit 3.5” LCD screen for clear result display
• Automatic circuit checking
• Rechargeable AA batteries
• Includes AC/DC adaptor
• Complies with Cat IV safety standards
• Optional clamps for ART and stake-less testing

Technical Specifications

• Voltage outputs: 25V, 50V
• Frequency settings: 94Hz, 105Hz, 111Hz, 128Hz
• Current outputs: 4.5mA, 0.45mA, 0.045mA
• Ground voltage range: 1V to 100V
• Current measurement range: 1mA to 20A
• Resistance measurement: 0.01Ω to 200kΩ

What’s Included

• Megger DET4TCR2
• Test Leads
• Stakes
• External Charger
• Hard Carry Case

Megger Part Code: 1000-346
